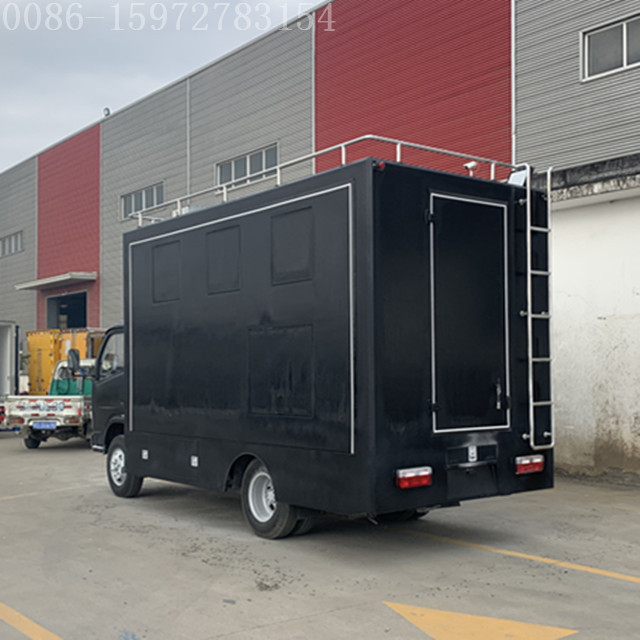

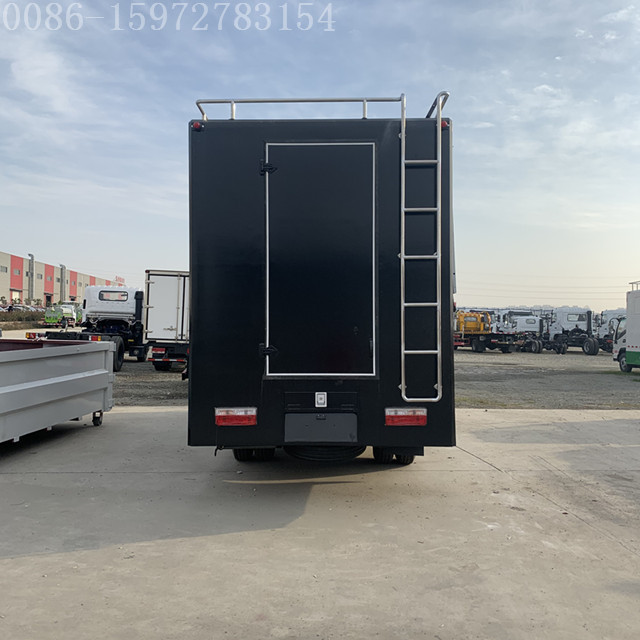

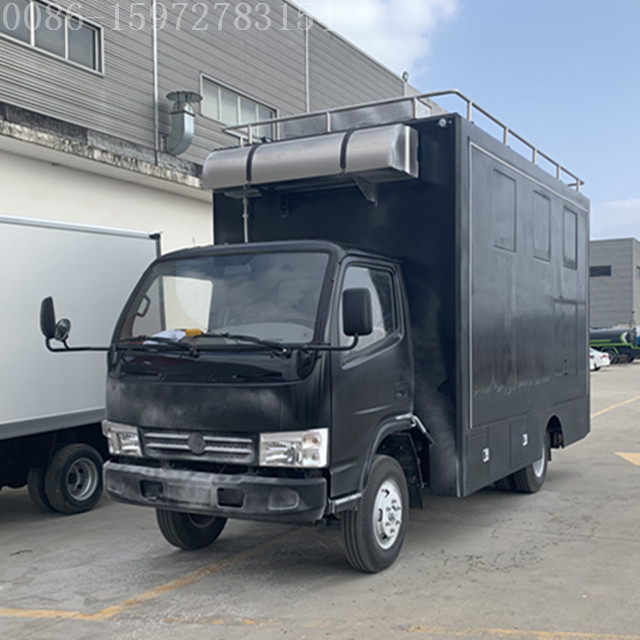

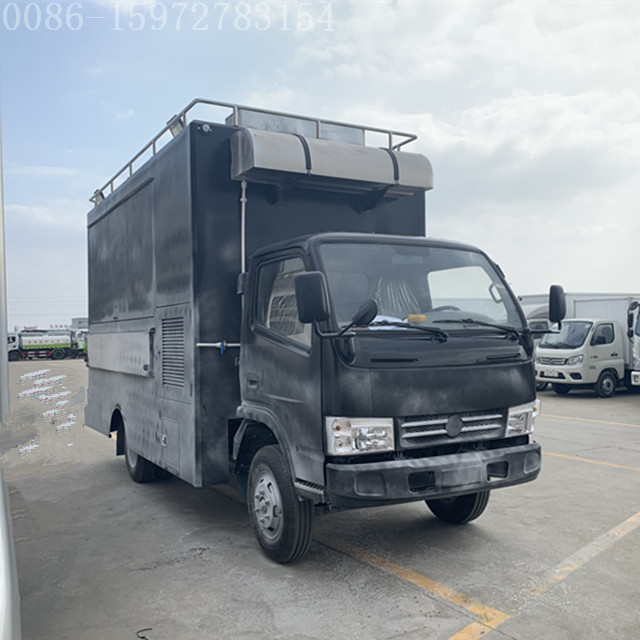

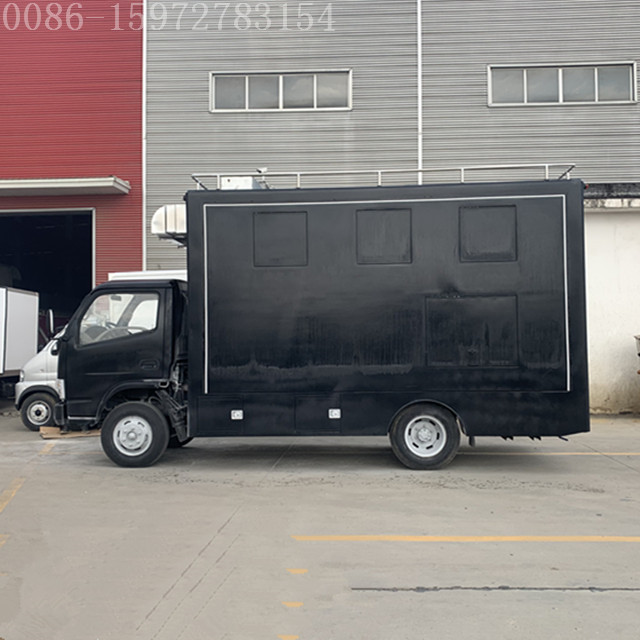

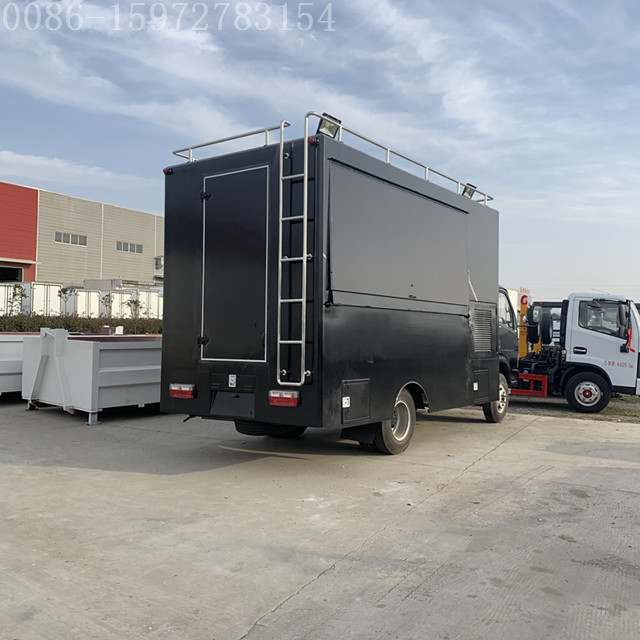

Cheng Li mobile kitchen cooking truck

Name of vehicle manufacturer

 Dongfeng

Vehicle brand/vehicle name

 ace

Mobile dining truck

Body color

 Optional

Engine brand

 Yunnei Power

Horsepower

85 horsepower

Type of fuel

Diesel fuel

Displacement and power (ml/kw)

 3200

62.2

Vehicle size

5995x2240x3500mm

Dimensions of cargo compartment

4200x2300x2300mm

Number of leaf springs (leaf)

 11/11+9

Number of tyres

 6

Tire specifications

7.00R16

Wheelbase（mm）

 3300（Optional）

Axle load(kg)

1600/2895

Number of axes

2

Form of steering

The steering wheel

Total mass (kg)

4495

Quality of equipment(kg)

4365

Rated load mass (kg)

X

Utilization coefficient of load mass

X

Number of persons allowed to ride in the cab (person)

3

Maximum design speed (km/h)

90

On the device configuration

Project

Unit

 Notes

Box body material

1

The box is made of stainless steel plate with outer cold plate and middle fire-proof heat insulation plate. The box is 5 cm thick

The floor material

1

Aluminum patterned skid plate

Expansion of the box body

1

Positive cab side hydraulic expansion with 360 * 60 cm air windows (4 legs)

Back door

1

The rear door of the box body can be made into left-right open or up-lift type

Pedals

1

The rear part of the box body is provided with a rotating pedal

Skylight

3

Skylight for the electric skylight (can be modified according to customer needs)

Exhaust system

1

Stainless steel exhaust system, three electric exhaust fans

Water tanks

2

1 water purification tank, 1 sewage tank

Fuel tank

1

The roof is fitted with an aluminum fuel tank

Circuit, water

1

Lighting

4

Box Body 2 led ceiling light, box body outside two LED lights

Booster pump

1

Booster pump

Sales window

1

Can be modified according to user needs
