DONGFENG Dorica Flat bed tow truck with crane

Name: DONGFENG Dorica Flat bed tow truck with crane
Brand: Cheng Li Automobile Group
Price: 34500 USD
Rating: 4.5 (40 reviews)

Unit Price:

USD 34500 - 35300 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Fuel: Diesel

Emission Standards: Euro 3, Euro 5

Old And New: New

Gearbox Type: Manual

Place Of Origin: China

Vehicle Size: 7070*2350*3400mm

Gross Mass: 11995kg

Curb Weight: 8000kg

Seating: 3

Wheelbase: 3800mm

Number Of Tires: 6

Tyre Size: 8.25R20

Horse-power: 165HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG Dorica flat bed tow truck with crane introduce

Vehicle Technical Specifications

Cab
Row half cab with sleeping berth, 3 seater, without air-conditioner
Chassis
Brand	DONGFENG
Drive type	4x2 left hand drive
Transmission	5forward gear,1 reverse, manual mechanical type
Braking System	Hydraulic brake
Tire	8.25R20,6+1(spare)
Wheelbase	3800mm
Front axle/rear axle	2.7 T/5.5T
Engine
Model	YCD4P32-160
Horse Power	118kw/160hp(Euro 3)
Fuel type	Diesel oil
Engine Size	3200ml
Dimension & weight
Overall dimension(LWH)	Approx707023503400mm
Gross Weight	Approx11995kg
Curb weight	Approx 8000kg
Upper body
Flat bed size	6900x2480mm
Top standard	Crane section：Cheng Li 6.3 tons 4 section boom crane,, the lifting height is 13.6 meters, the working radius is 11.9 meters, the full hydraulic rotation, the original back leg Flat bed section：Top configuration: 5 tons of top, 5 tons of winding, 25 meters of wire rope, bilateral linkage operation, back arm towing 5 tons,4mm thick pattern plate, board length about 5.5 meters, board width 2.48 meters, inlet valve, with a set of auxiliary trolley, yellow electronic alarm light, four bundling device. A pair of L-shaped towing forks, a pair of rotating cylinders, 4 straps, chassis certificate, vehicle certificate, warranty manual. (Can do 5 tons of top, optional split rear bracket, sinking process, plus hydraulic flip tail plate, optional frame 16mm thick manganese plate, optional 6mm thick pattern plate)

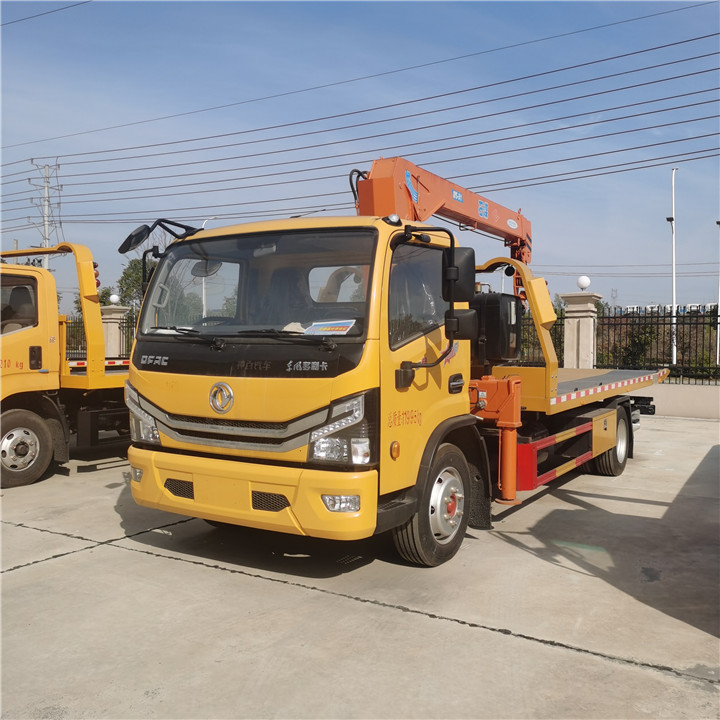

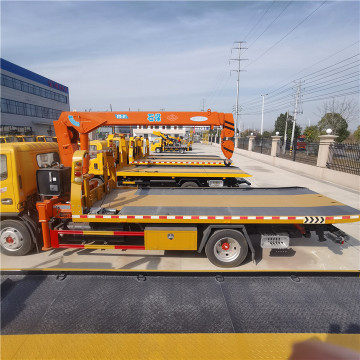

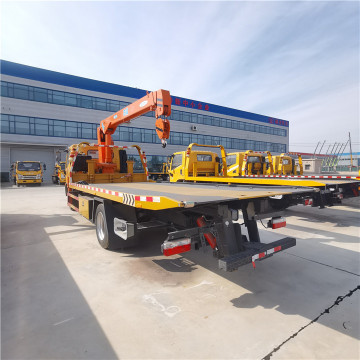

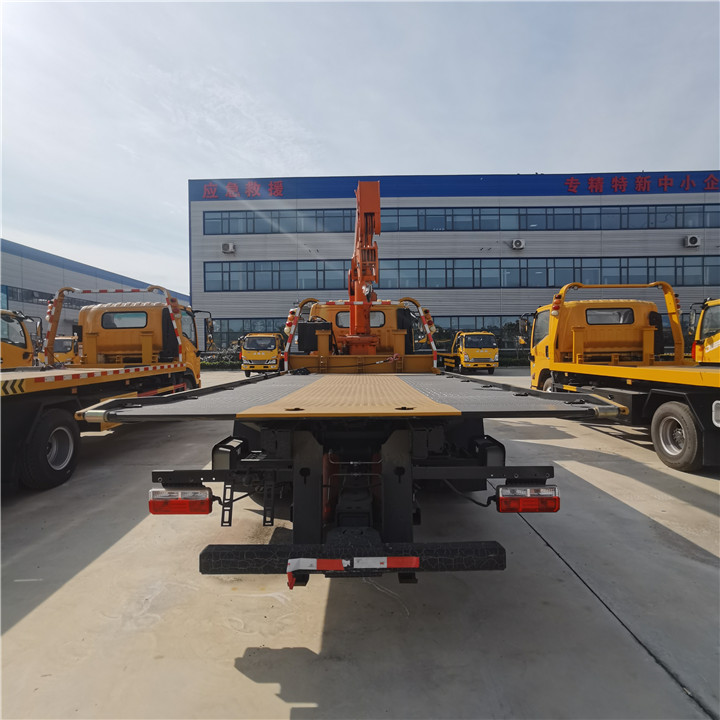

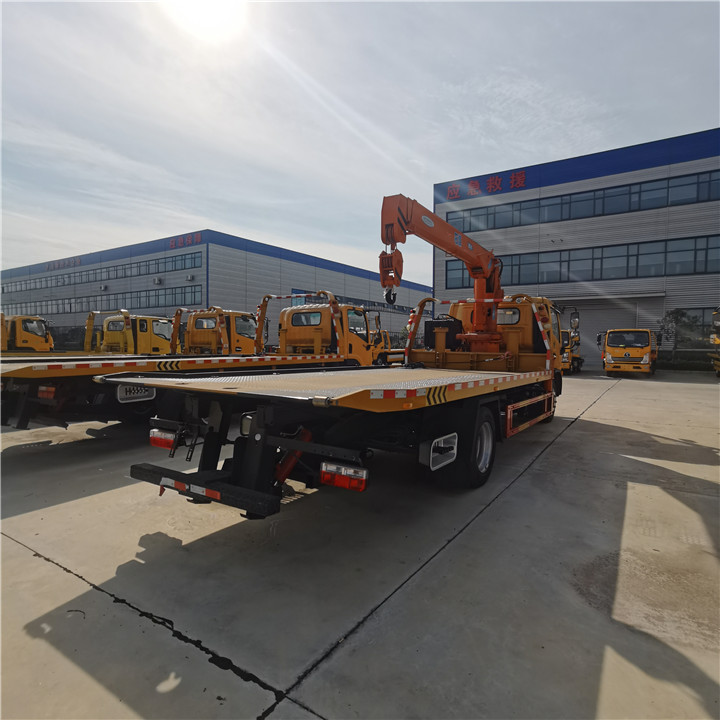

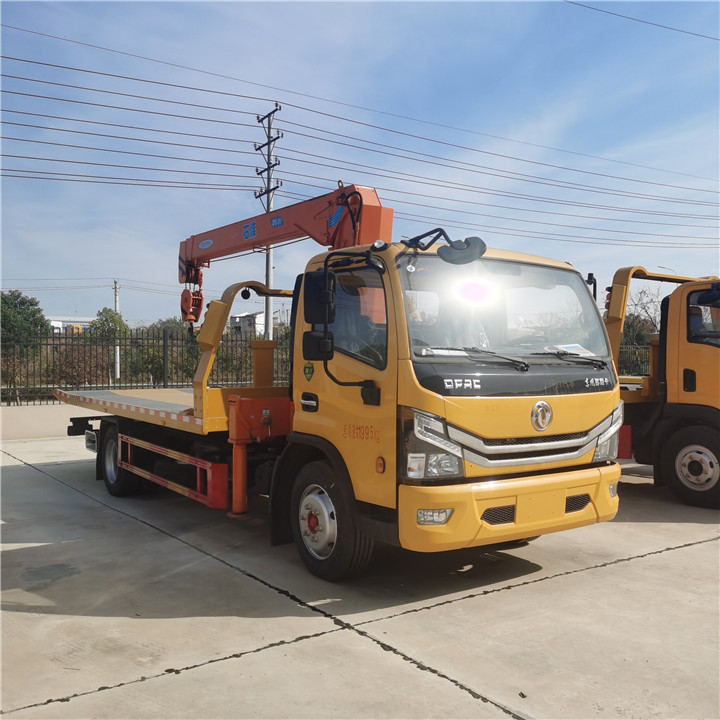

Dongfeng DORIka D7 wrecker with crane is a road wrecker rescue vehicle with outstanding performance,

the following is its specific introduction:

1. Chassis configuration of Crane Tow Truck

• Cab: The new 2030 single-row cab offers spacious interior space and wide view,

providing a comfortable operating environment for the driver.

• Power system: Equipped with Yuchai 160 horsepower engine, strong and stable power output,

low fuel consumption and high torque, can adapt to various complex road conditions.

Matching Wanliyang 6-speed transmission or Faster 8-speed transmission, smooth shift, high transmission efficiency.

• Chassis structure: Wheelbase 3800mm, equipped with 5.5 tons of Dana rear axle,

using 190 reinforced girder or 192 single-layer girder, strong bearing capacity, good vehicle stability.

• Other configuration: equipped with multi-functional steering wheel, air brake, ABS, air conditioning,

central control door lock, electric doors and Windows, etc., to improve driving comfort and safety.

2.tow truck crane loading configuration

• Crane: Optional 5-ton four-stage arm crane, arm length and lifting height can meet the needs of a variety of rescue scenarios,

strong lifting capacity, accurate and stable operation.

• Plate: 5.6 meters long, 2.35 meters wide, flat surface, carrying capacity of up to 4-8 tons, can transport a variety of faulty vehicles.

• Hoisting: Equipped with 4 tons of hoisting machine, with 21 meters of steel wire rope,

can realize the traction and dragging of the faulty vehicle, and the bilateral linkage operation is convenient and fast.

• Rear bracket: The towing capacity of the rear bracket can reach 2.5 tons to 6 tons, which can lift and pull the accident vehicle,

and facilitate the fault vehicle to move to a safe place.

3.Flatbed Tow Truck Application scenarios

• Road rescue: It can quickly respond to the rescue needs of accidents and faulty vehicles on highways and urban roads,

and clear the road obstacles in time and restore the smooth traffic through the lifting of the crane and the lifting of the rear arm.

• Engineering rescue: In construction sites, municipal engineering and other places,

it can be used to lift and move small engineering machinery, building materials, etc., to improve the efficiency of engineering rescue.

4.Tow truck crane advantages

• Complete functions: Set lifting, towing, lifting and other functions in one, can cope with a variety of complex rescue situations,

reduce rescue equipment investment.

• High reliability: Dongfeng D7 chassis technology is mature, stable performance, with high-quality top equipment,

high vehicle reliability, reduce the probability of failure during rescue.

• Convenient operation: the design of bilateral linkage operation device and remote control operation makes the operation of crane,

winch and rear bracket easy, and a single person can complete a number of rescue operations, improving rescue efficiency.
