Home > Products > Dump Truck > Dongfeng 6X4 dump truck/tipper truck





View the big picture

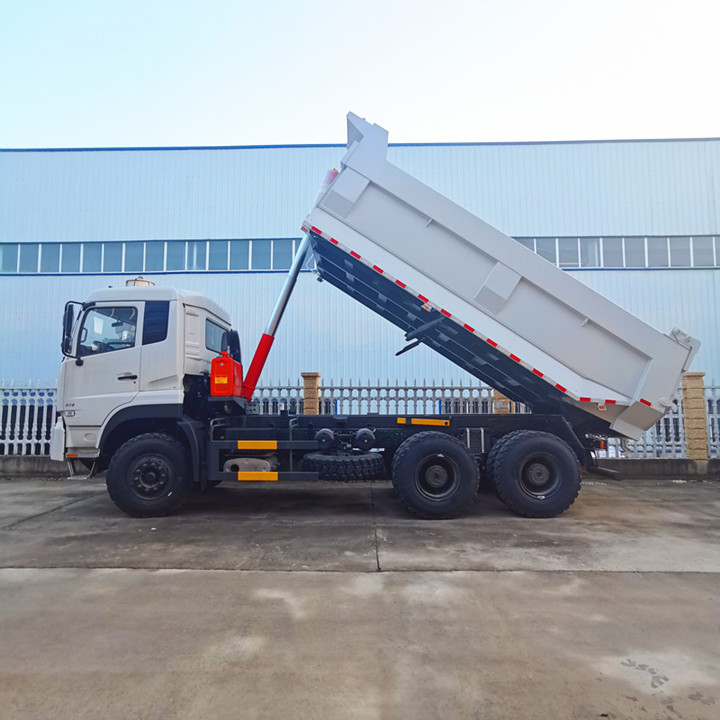

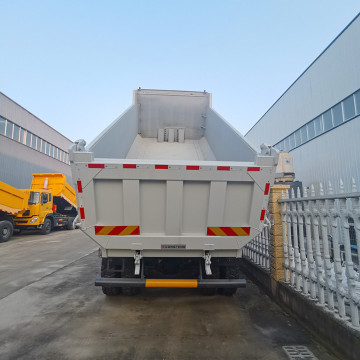

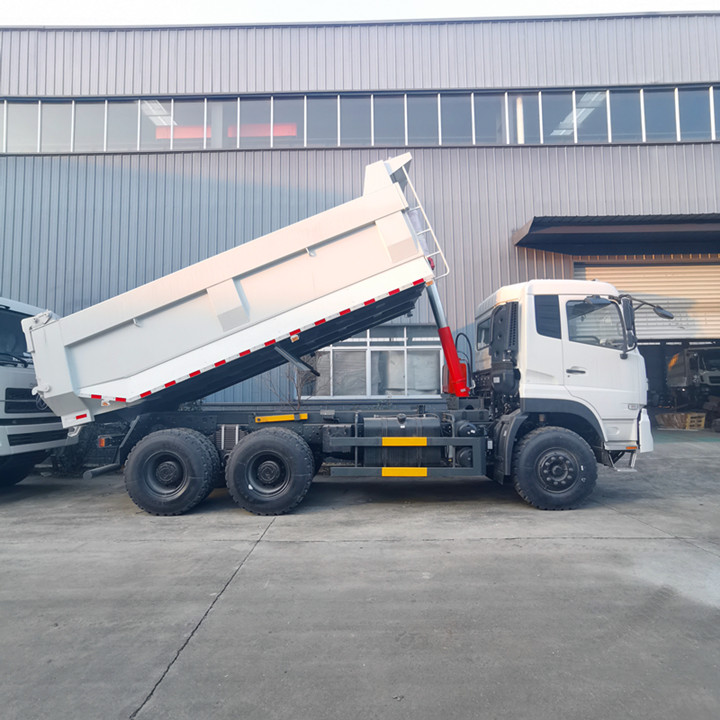

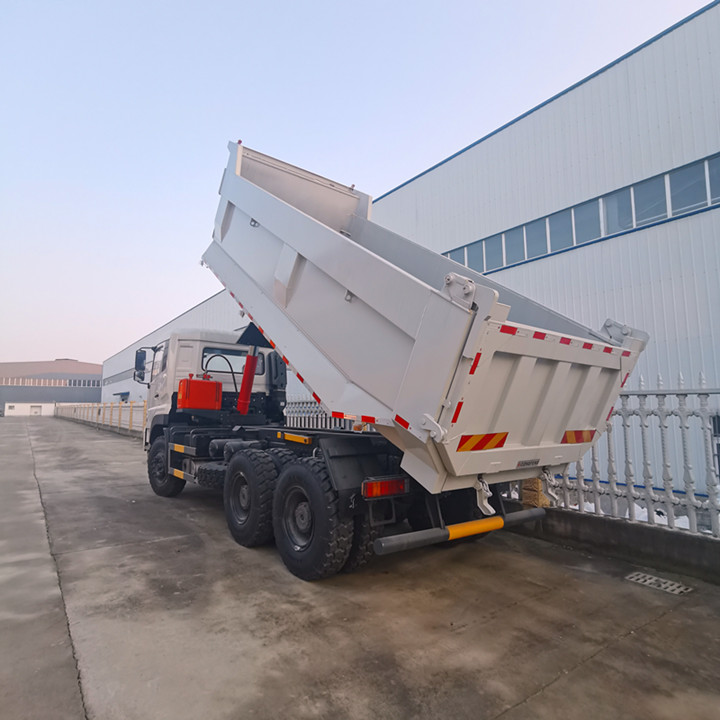

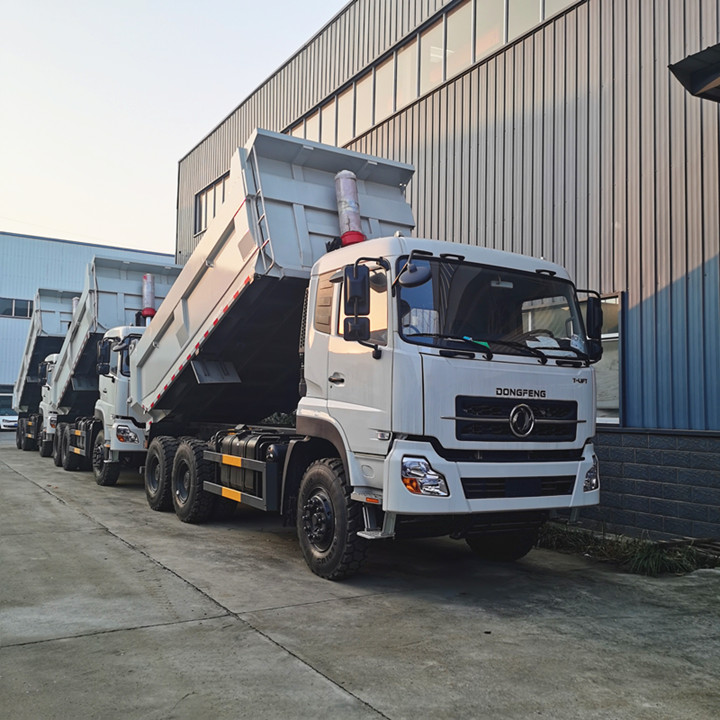

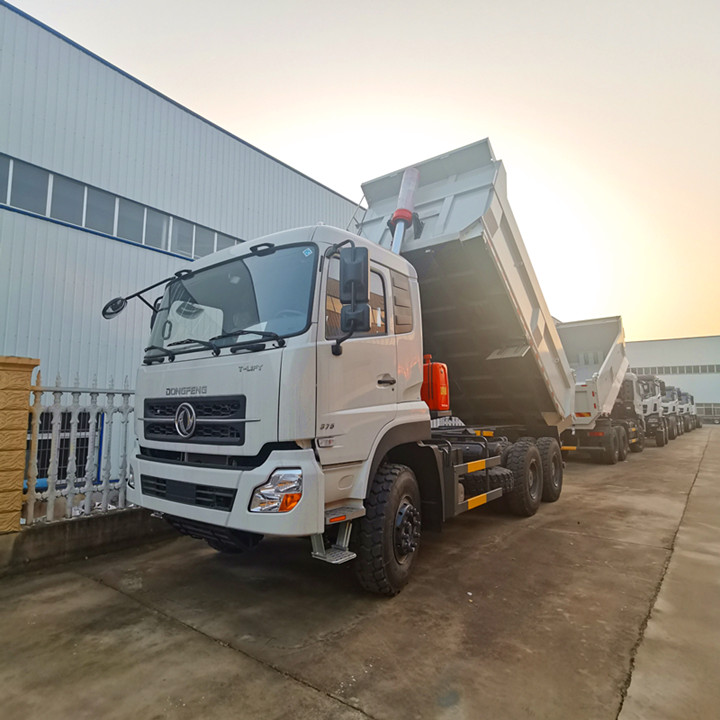

Dongfeng 6X4 dump truck/tipper truck

Name: Dongfeng 6X4 dump truck/tipper truck
Brand: Cheng Li Automobile Group
Price: 37000 USD
Rating: 4.6 (17 reviews)

Unit Price:

USD 37000 - 37950 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Drive Form: 6x4

Deadweight: 21 - 30t

Horsepower: 351 - 450hp

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Displacement: 6 - 8l

Place Of Origin: China

Vehicle Size: 8100*2550*2700mm

Container Size: 5600*2200*600mm

Gross Mass: 25000kg

Curb Weight: 9550kg

Seating: 3

Wheelbase: 3800+1350mm

Number Of Tires: 10

Tyre Size: 12.00R20/11

Horse-power: 375HP

Brake System: air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c certification

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Dongfeng 6X4 Dump Truck/tipper truck Parameter configuration

Dongfeng 6X4 dump truck parameter configuration
Chassis section
Complete vehicle model	CL3252BDFAF6
Chassis type	CL1252LDFJ6
Vehicle size	775025502700mm
total mass	25000kg
Load mass	15685kg
curb weight	9120kg
wheelbase	2650+1300mm
horse-power	375HP
displacement	7800ml
Number of tires	10
Tyre specification	12.R22.5
Top part
Container size	52002200800mm
Container material	High strength carbon steel, side 3 bottom 5 engineering cargo box (cargo box steel plate thickness is optional)
Lifting part：China high quality front hydraulic top

Dongfeng 6x4 dump truck is a good performance, widely used dump model, the following is its introduction:

1. Dongfeng dump truck type

• Dongfeng Hercules: such as the 290-horsepower DFL3251A1, equipped with Dongfeng Cummins L290 30 engine,

9-speed manual transmission, maximum speed 80km/h, 5.2m long cargo box.

• Dongfeng Tianlong KC: If equipped with Dongfeng DDi11S350-40 engine model, the maximum power of 350 HP,

matching Fast 12JSD180 12-speed transmission, cargo box size of 5.6X2.3X1.215m.

• Dongfeng Tianjin Small Cyclone: the engine can choose Yuchai GuoVI245hp or 270hp, with Fast 10-speed transmission,

wheelbase 3300mm+1350mm, chassis weight as low as 7.2 tons, cargo box can cover 4.6 meters to 5 meters.

2. Characteristics of construction truck

• Powerful power performance: equipped with Dongfeng Cummins, Yuchai and other brands of engines,

strong power output, can meet the transport needs of different working conditions,

such as Dongfeng DDi11S350-40 engine of Dongfeng Tianlong KC dump truck, the maximum torque can reach 1600 nm.

• Reliable bearing capacity: high strength frame and high quality axle, equipped with multi-spring design,

strong bearing capacity, such as Dongfeng Tianjin Small Cyclone 5.5 tons of front axle with multi-spring design, more reliable bearing capacity.

• Flexible loading and unloading methods: most of the cargo boxes are rear dump type,

and the side of the cargo box of some models can be expanded to the outside to facilitate loading and unloading of goods,

such as the side of the cargo box of Dongfeng 6X4 rear 8-tire three-bridge dump truck

can be expanded and equipped with 5 doors for easy unloading.

• Good comfort: some models are equipped with full floating cab, air bag seats, etc.,

good shock absorption effect and comfortable driving, such as Dongfeng Tianjin Small Cyclone full floating cab plus air bag seats,

multiple shock absorption design, effectively improve the driving comfort.

• High safety: some models of bumper headlights on both sides of the installation of protective nets,

bumper under the installation of anti-collision beams, improve vehicle safety, such as Dongfeng Tianlong KC dump truck.

3.electric dump truck application scenario

It is widely used in all kinds of engineering construction and cargo transportation scenarios,

such as dregs and sand transportation of construction sites, ore transportation of mines, and material transfer in road construction.

Product Categories : Dump Truck
