Home > Products > Emergency Vehicle > Engineering Rescue Vehicle > DONGFENG 5.2m box emergency equipment vehicle





View the big picture

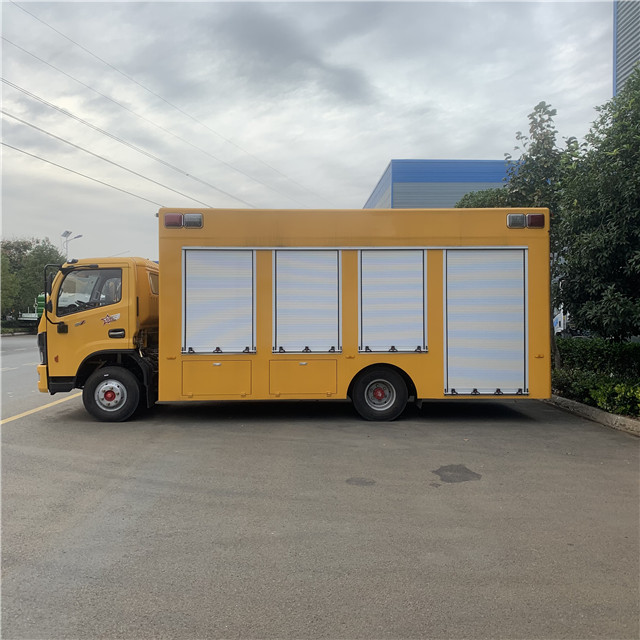

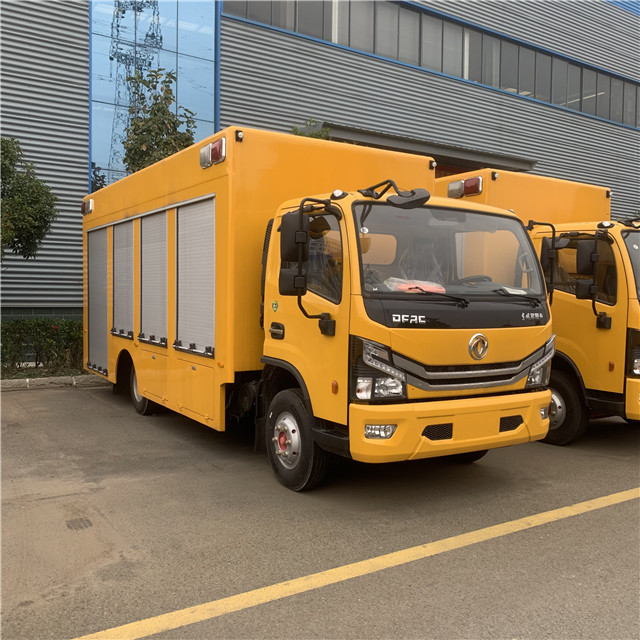

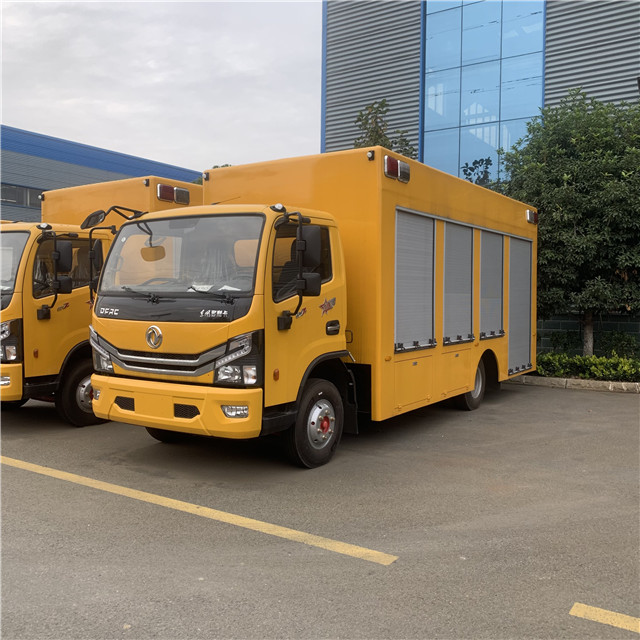

DONGFENG 5.2m box emergency equipment vehicle

Name: DONGFENG 5.2m box emergency equipment vehicle
Brand: Cheng Li Automobile Group
Price: 28500 USD
Rating: 5.0 (6 reviews)

Unit Price:

USD 28500 - 29500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 7340*2400*2950mm

Body Size: 5000*2300*2300mm

Total Mass: 11995kg

Curb Weight: 11800

Seating: 3

Wheelbase: 3800mm

Number Of Tires: 6

Tyre Size: 8.25R20

Horse-powe: 165HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Emergency Vehicle introduction

Pumping and drainage function: the electric generator inside the chamber provides power for the pump,

which pumps and drains water through the drainage hose. In other cases, municipal electricity

can also be used to provide power for the pump to carry out drainage operations.

Power supply function: through the power provided by the electric generator in the compartment,

external power supply interface, can supply power to non-electricity areas.

DONGFENG 5.2m box Engineering Rescue Vehicle Parameter Settings

Rescue vehicle configuration
Name	Models	Quantity	Notes
Chassis	EQ	1	It's a Dongfeng Automobile Company Dongfeng, 103 kw
Box	clw	1	The silent carriage is made of fine cold-rolled steel plate and multi-layer mesh plate structure
Equipment Rack	Customisation	1	Aluminum alloy equipment frame
Electric generator	150KW	1	150 kw Yuchai diesel generator, full fuel for 8 hours
Portable submersible pump	500 cubic meters per hour	4	Single pump displacement 500m3/h, weight 32kg, lift 10 meters, power 22KW, with floating ring
Submersible pump control cabinet	Water pump matching	4	The pump control system is integrated into the control cabinet
Reverse imaging radar	Customisation	1	32GB event data recorder radar image, 7-inch display
Fire extinguishers	Customisation	2	Portable MFZ/ABC4 ammonium phosphate dry powder fire extinguisher
Painting and marking	Customisation	1	Spray according to the requirement of buye

DONGFENG equipped vehicle Features:

• Rescue Vehicle Chassis configuration: The national VI Dongfeng Ddolica yuchai165 horsepower engine, wheelbase 3800mm,

sufficient power and emission standards, can adapt to a variety of road conditions.

• rescue truck size: length 7340mm, width 2400mm, height 2980mm, moderate size, compact body, more maneuverability

when working on narrow roads or fields.

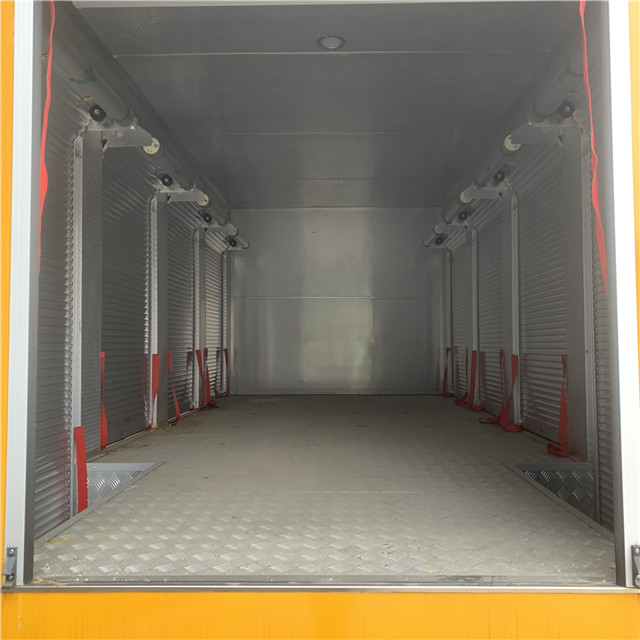

• Box design: The box adopts the anti-distortion design, and the interior can be optional to separate the aluminum alloy profile lap structure,

which is not only durable, but also can reasonably divide the space to facilitate the classification and storage of equipment.

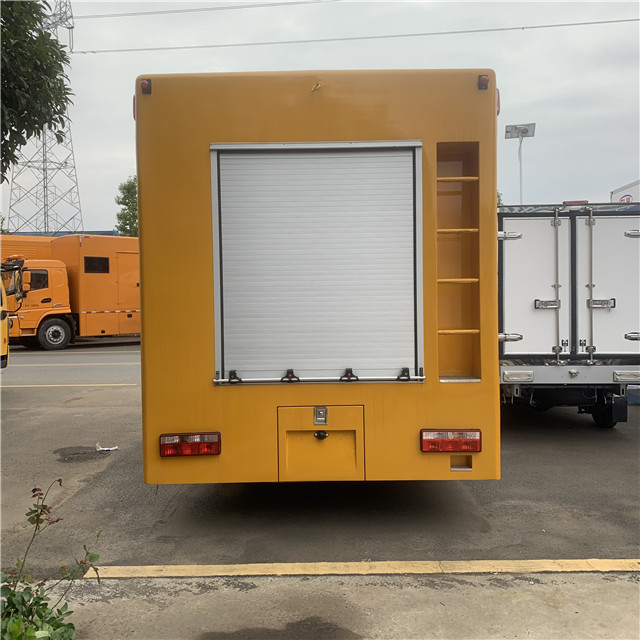

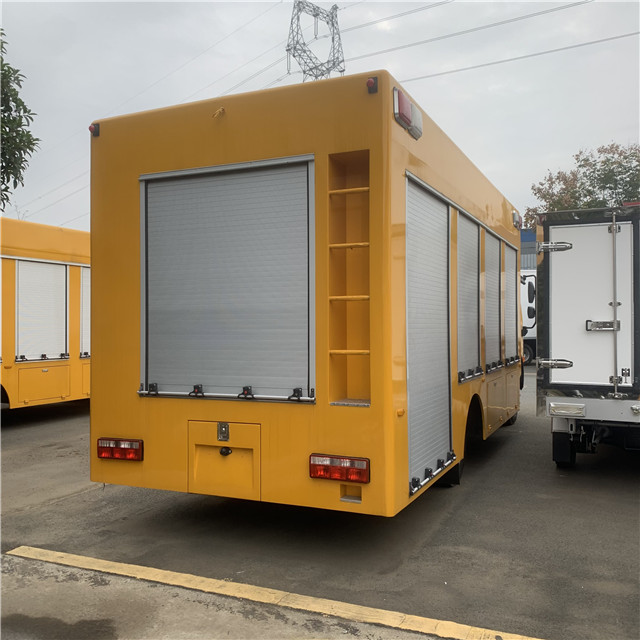

• Tail device: The tail is equipped with a hydraulic lifting platform bearing 1.5 tons,

which is easy to load and unload heavier equipment and improve working efficiency.

• Application scenario: Widely used in fire, emergency rescue, power repair, communication support and other fields,

can be equipped with corresponding professional equipment and tools according to different needs,

to provide powerful equipment support for various tasks.

Functional characteristics of emergency equipment vehicle

• Easy operation: electro-pneumatic control system, can achieve remote control fire cannon and other operations, fire system operation is simple.

• Strong mobility: strong power, reasonable design layout, strong vehicle mobility, can quickly arrive at the scene.

• Safety and comfort: The design of the cab is ergonomic, the operation is simple and comfortable, the driving fatigue is reduced,

the driving pleasure is increased, and the driving safety is ensured.

• Anti-corrosion and durable: the tank and metal accessories are sprayed with anti-corrosion primer and top paint,

and the paint film of the whole car is uniform, which can withstand the adverse environment such as damp, dust and salt spray.

Emergency Rescue Vehicle after-sales protection is more comprehensive, mainly including the following aspects:

• Warranty policy: Under normal circumstances, since the date of purchase of the car, in normal operation and in compliance with relevant regulations,

within one year or the driving mileage does not exceed 25,000 kilometers, due to design, assembly reasons caused by damage,

can enjoy three guarantees of service, mainly to repair, repair fee free. The warranty period of some models is three years or 100,000 kilometers,

and the warranty period is regularly maintained according to the maintenance manual, and you can enjoy free warranty service.

• Lifetime warranty: For products that exceed the warranty period, replacement parts will only be charged the relevant cost.

• Free training: After the purchase of the car, the factory arranges engineers to guide the operator on the spot,

learn the theory and practical operation, so that they can master the basic theory, performance and function of the special vehicle,

and can skillfully operate and carry out daily maintenance and eliminate general technical faults.

• Spare parts supply: A large spare parts inventory ensures quick supply of original certified parts and an efficient and transparent procurement process.
