Home > Products > Bucket Truck > Folding Arm Aerial Work Vehicle > New JMC Folding Arm Aerial Work Vehicle





View the big picture

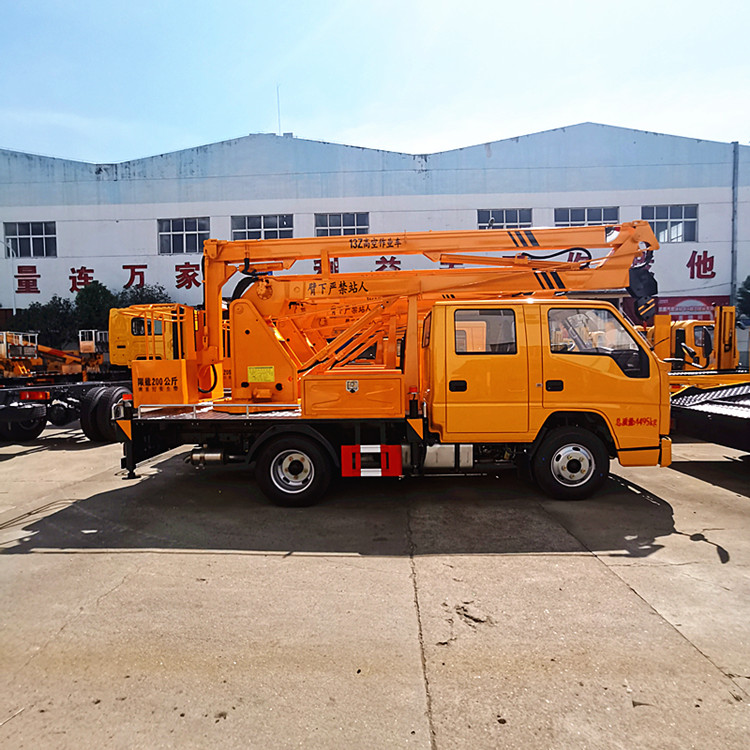

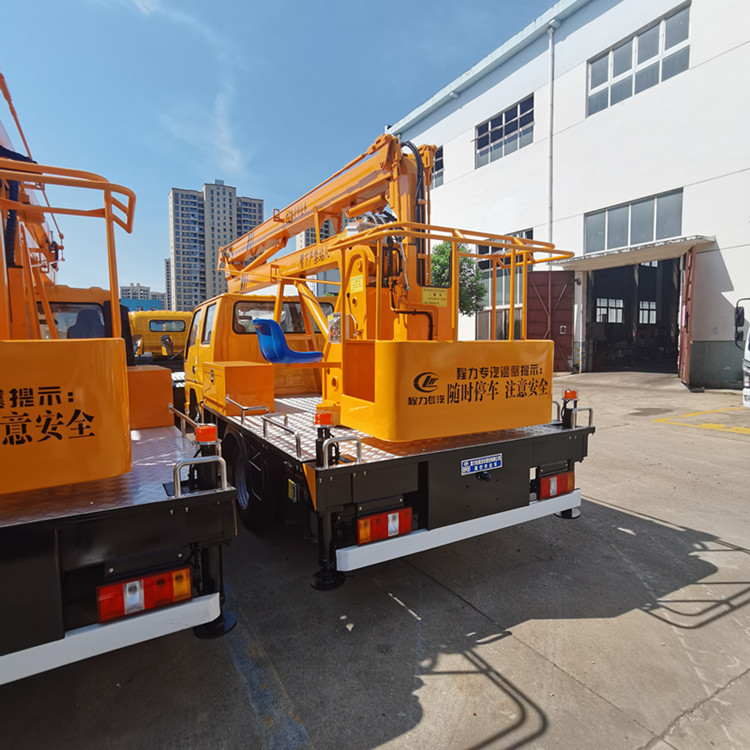

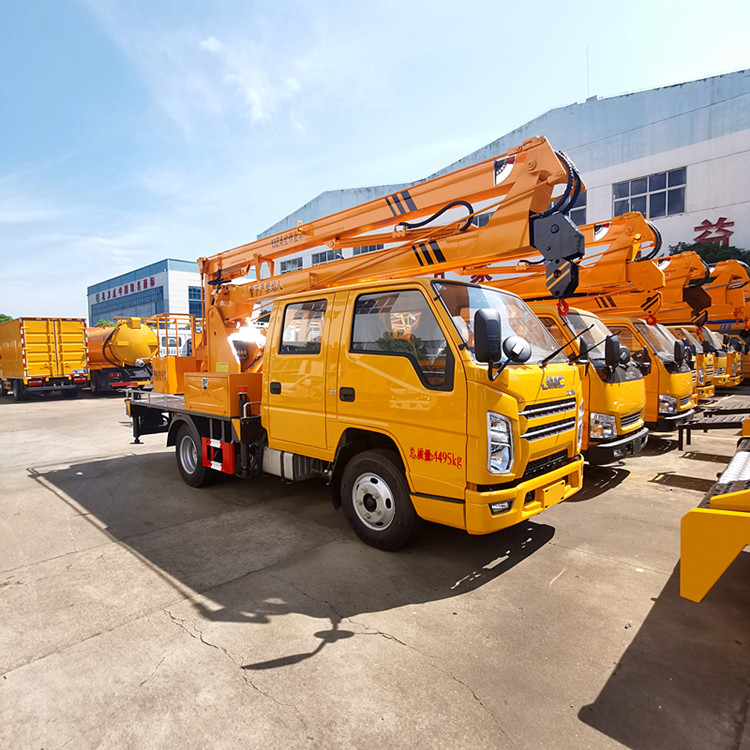

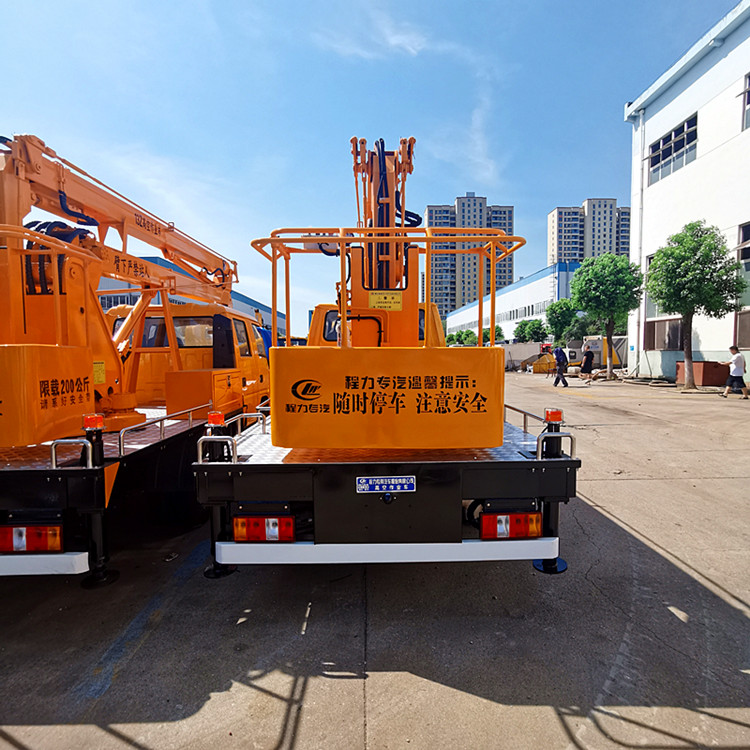

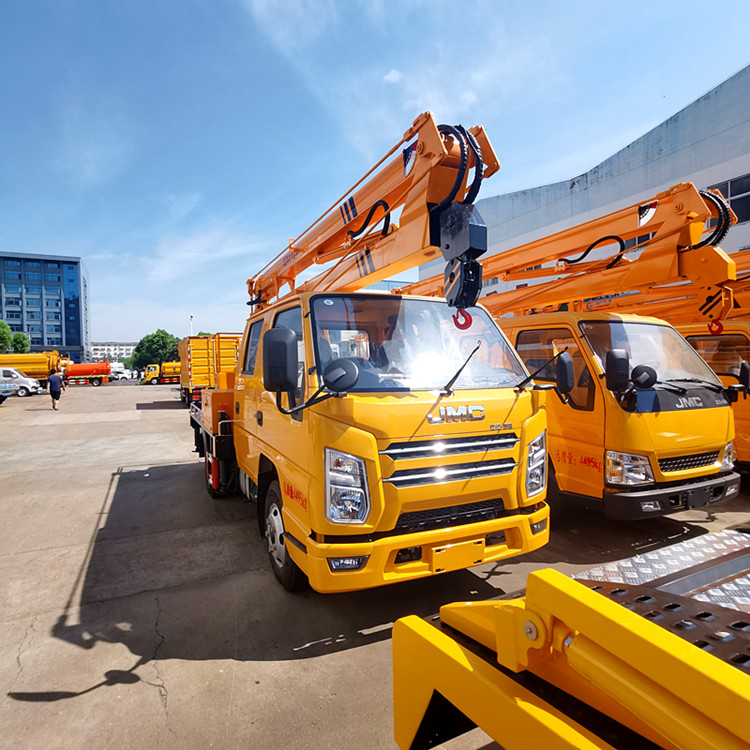

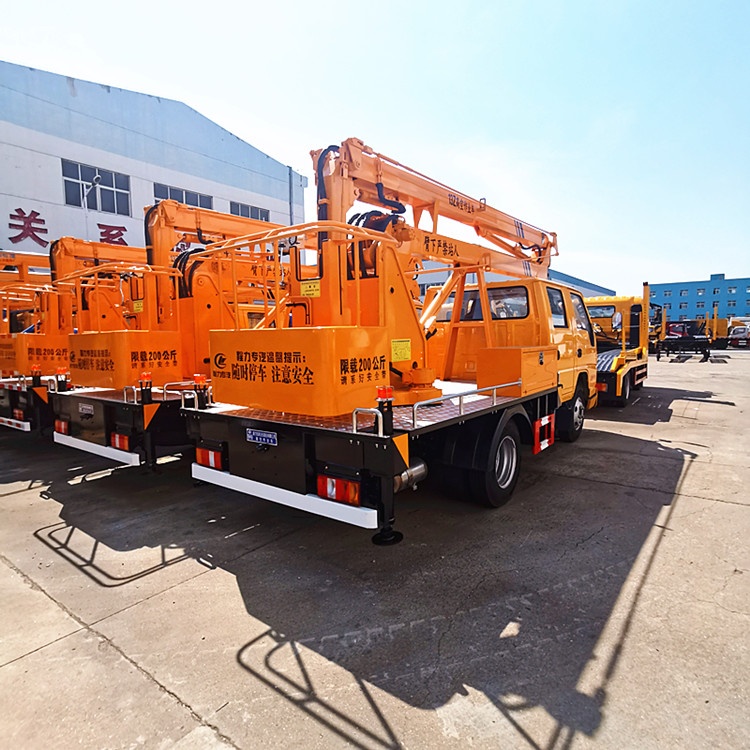

New JMC Folding Arm Aerial Work Vehicle

Name: New JMC Folding Arm Aerial Work Vehicle
Brand: Cheng Li Automobile Group
Price: 27500 USD
Rating: 4.7 (48 reviews)

Unit Price:

USD 27500 - 28300 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Old And New: New

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 5990*1980*2950mm

Gross Mass: 4495kg

Curb Weight: 4365kg

Seating: 2+3

Number Of Tires: 6

Wheelbase: 2800mm

Tyre Size: 7.00R16LT

Horse-power: 115HP

Displacement: 2892ml

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Product Description

Introduction of the New JMC Folding Arm Aerial Work Vehicle

Main technical parameters of 16m aerial work vehicle
Category	Project	Unit	Data
Size parameters	Total length	mm	5990
	Total width	mm	1980
	Total height	mm	2950
Quality parameters Main parameters	Number of passengers (including drivers)	People	2
	Total mass	kg	4495
	Working platform rated load	kg	200
	Maximum operating height	m	16
	Maximum operating height operating range	m	2.9
	Maximum operating range	m	26
	Maximum operating range when operating height	m	4.5
Driving parameters	Front suspension	mm	1110
	Rear suspension	mm	1525
	Stretch back	mm	/
	Wheelbase	mm	3360
	Maximum speed	Km/h	100
	Minimum ground clearance	mm	380
	Approach angle	.	18
	Leave the corner	.	14

Introduction of the new Jiangling Shunda folding arm aerial work truck:

1. Configure the Bucket Truck

• Boom structure: mostly three-section folding arms, some models of the boom section is quadrilateral or pentagon.

• Working range: Take the 13m blue brand double-row folding arm aerial working vehicle as an example,

with a maximum working radius of 5.6m and a maximum working height of 13m.

• Rotation function: The whole car adopts 360° hydraulic rotation, which can realize 360° rotation of the working arm,

which is flexible and convenient. Some models of the turntable have two-way 360° rotation,

and the turboworm deceleration mechanism is adopted.

• Hook configuration: Some models have 1-ton hooks, and the maximum lifting weight can reach 1 ton.

• Other configuration: the rear leg usually has 2 strobe lights, the exit leg operating box is installed with lighting and level,

and the compartment is lined with 3mm anti-slip steel plate.

2. Functional features of aerial bucket truck

• High safety performance: equipped with platform overload protection system,

leg pressure control system, operation arm limit position limit, loading and unloading action interlock system,

emergency stop device, etc. Some models also have soft leg protection device, emergency manual operation system, etc.

• High working efficiency: Pentagon working arm, compact structure, telescopic synchronization,

wide working range, faster working efficiency; Synchronously realize turntable rotation, boom amplitude change,

boom expansion and platform rotation.

• Ease of operation: The control system is highly integrated, and all actions are operated by two to three levers (handles);

Onboard operation adopts integrated electronic control valve block mode, beautiful layout, smooth operation,

through the throttle valve to achieve stepless speed regulation; Some models of hanging baskets adopt external tie rod mechanical leveling,

turntable and hanging baskets are equipped with start and stop switches.

• Adapt to a variety of working conditions: H type leg stability is good, can adapt to a variety of working conditions,

legs can be operated simultaneously or separately; The front leg of some models adopts K-type square box full package front leg,

which has a large span and can be adjusted separately or telescoped synchronously.

3. Chassis configuration of Folding Arm aerial work vehicle

• Power system: 115 HP engine, high torque, low fuel consumption, full power, low running noise, high speed,

smoothness, durability, stability and safety.

• Transmission: Equipped with five-speed transmission, convenient shift, safe and reliable.

• Tire: Choose 7.00R16 steel wire tire, fewer curtain layers, thin tire side, large radial elasticity,

good buffer performance, large load capacity.

• Cab: New Euro 6 two-row cab, large space, good driving experience, interior work is exquisite,

equipped with multi-functional steering wheel, original air conditioning, direction assist, original ABS,

some models also have exhaust brake.

4.Aerial work vehicle Application scenario

Suitable for municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding,

wharf, airport port, rescue, large-scale industrial and mining enterprises and other industries installation

and maintenance and climbing operations.
