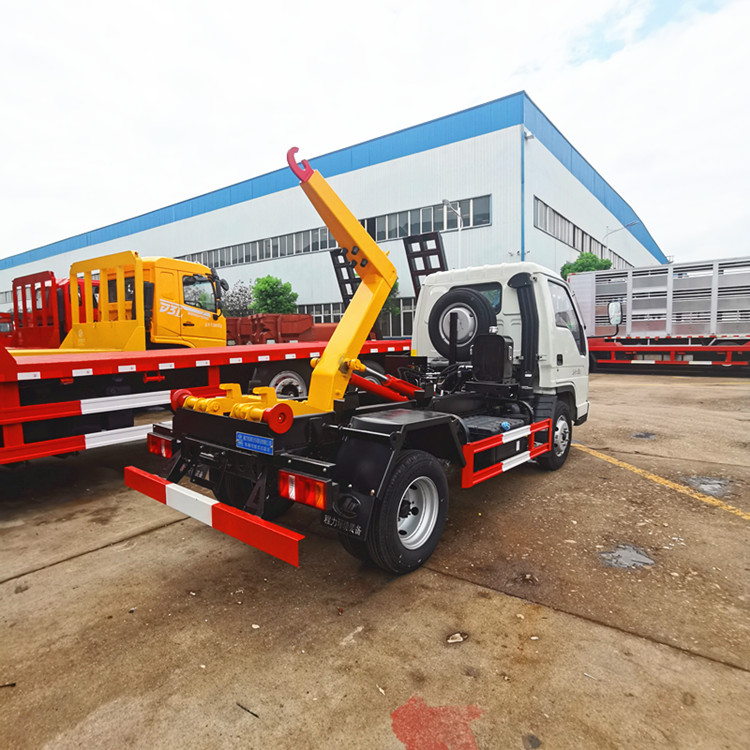

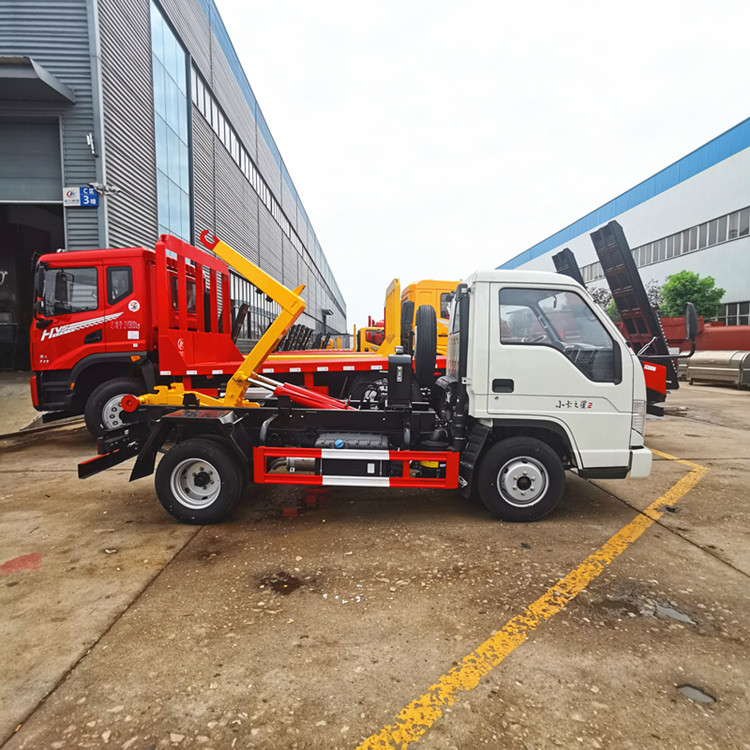

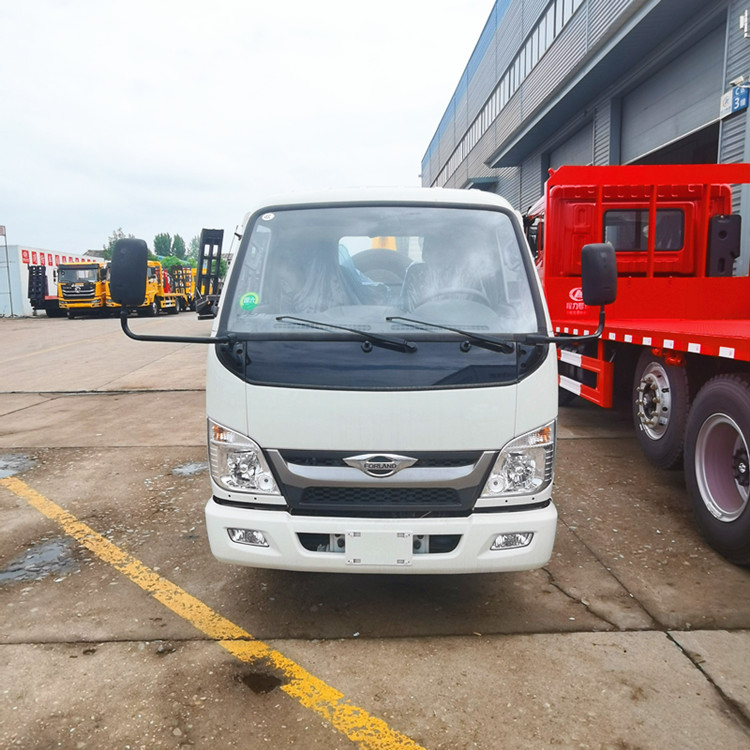

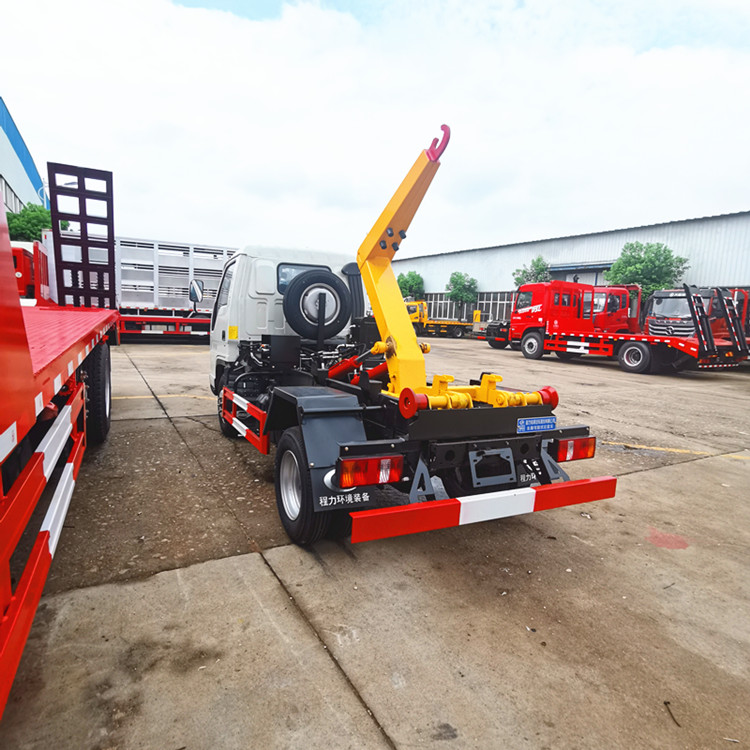

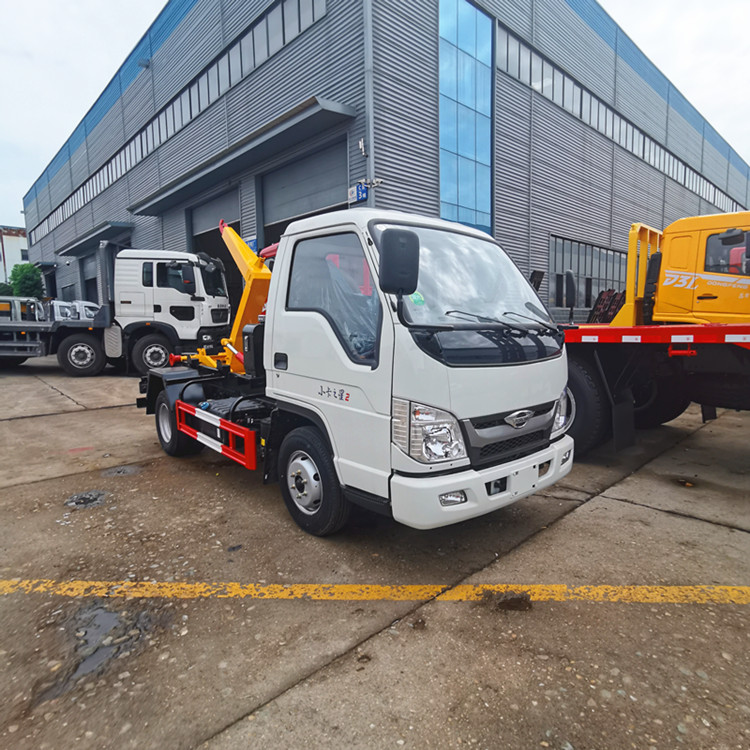

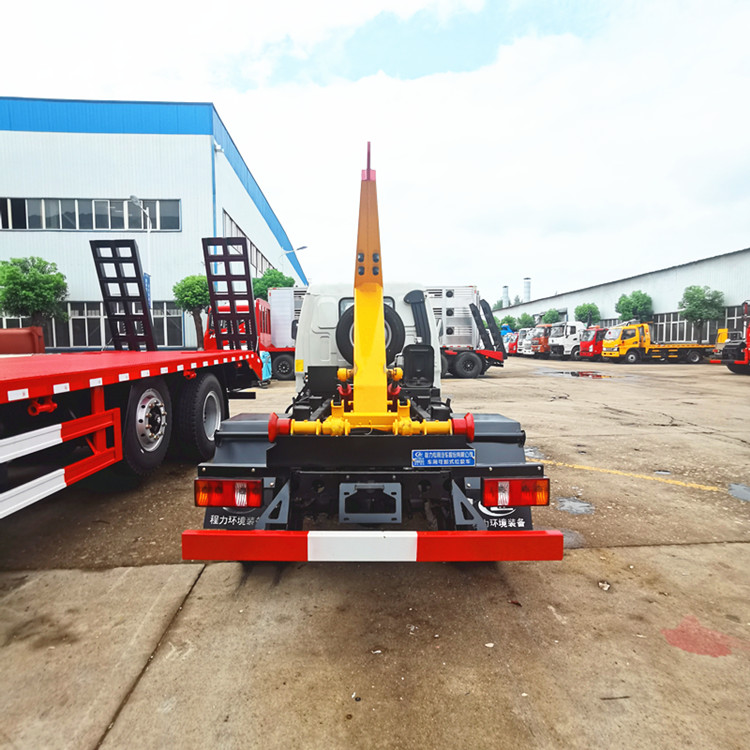

1. Hook lift garbage truck
• Chassis configuration: such as Foton small card Star 2 hook arm garbage truck, wheelbase 2600mm,
full wood 95 horsepower, equipped with 1580mm wide cab, single row front flip, 5 gears, 6.00R16 steel wire tires,
but also with movement, ABS, adjustable steering wheel, electronic extinguishing, cruise,
adjustable headlights, brake self-adjusting arm and other functions.
• Top configuration: the hook arm equipment is composed of hydraulic system, operating system, pull arm,
big arm double cylinder lifting, high-strength alloy integrated main hook arm with strengthened auxiliary beam,
the use of brand multi-way valve and high-strength cylinder, the operator can control the garbage box hoisted up and down,
but also with the self-unloading function, generally can be matched with 3 square garbage bins, to achieve a car multi-box recycling.
2. Hanging bucket garbage truck • Configuration: Taking the 4-square Foton Ka Star hanging bucket garbage truck as an example,
it adopts the Ka Star 2 body, 1700mm wide cab, single row front flip, equipped with a full-wood 88hp engine
and 5-speed transmission, equipped with 6.50R16 steel tires, power steering, ABS, adjustable steering wheel,
electric control flameout, etc. Its box volume is 4-5 square, with hydraulic self-unloading and right side hanging bucket lifting mechanism,
can be operated outdoors, using domestic well-known multi-way valve and hydraulic cylinder.
• Application scenario: It is suitable for collecting garbage in trash cans on both sides of the street.
The garbage in the trash can is poured into the car through the hanging bucket lifting mechanism,
and then the garbage is unloaded through the hydraulic self-unloading function, which is convenient and fast to operate
and improves the garbage collection efficiency.
• Configuration: such as Foton small card Star 2 blue brand self-loading garbage truck, full wood 95 horsepower,
2600 wheelbase, blue brand rear high no leakage, standard with scraper/push plate compression function,
the length of the vehicle is not more than 5 meters, can be connected to the large floor bucket compression garbage truck transfer.
• Features: The vehicle adopts a sealed ship-shaped box structure, lightweight design of hanging bucket structure,
strong lifting and feeding power, manual and automatic operation modes, multi-function flipping feed structure feed fast and stable,
also equipped with wireless remote control lifting and unloading and two hydraulic legs, high safety guarantee.
4. Ordinary dump garbage truck • Configuration: Foton small card Star 3 dump garbage truck, there are a variety of wheelbase options,
such as 2600mm, 2850mm, 3050mm, etc., its cargo size, total mass, rated quality, repair quality, etc.,
depending on the specific configuration. The engine can choose Anhui Quanchai 4B1-82C40 and other models,
the fuel type is diesel, and the emission standard is national four or national five. The vehicle is equipped with hydraulic lifting mechanism,
and the double cylinder belly hydraulic lifting body realizes automatic unloading.
The carriage is made of cold-rolled steel plate welded, the side wall is thin plate, and the bottom plate is thick steel plate.
• Features: simple structure, convenient operation, suitable for environmental sanitation, municipal, factory and mining enterprises,
property areas and other garbage and concentrated residential areas, can be unloaded by itself,
improve the efficiency of garbage transportation and treatment.
