Cheng Li car 12t pure electric kitchen Garbage Truck, with kitchen garbage collection, efficient transport and other functions, suitable for urban streets, residential areas, school canteens,
hotels and other areas, through good sex can enter the basement, pure electric drive,
not only strong power, but also highlight the concept of green environmental protection.

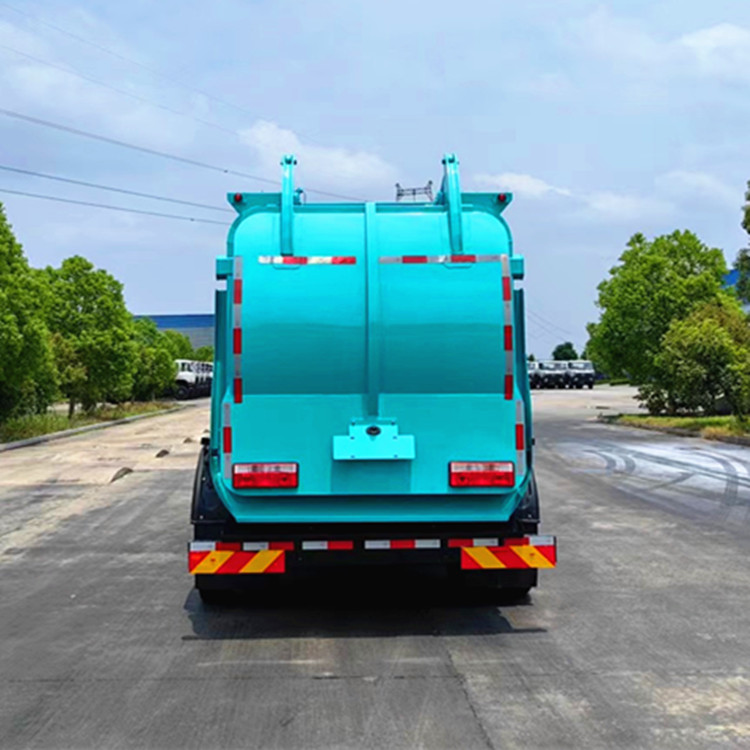

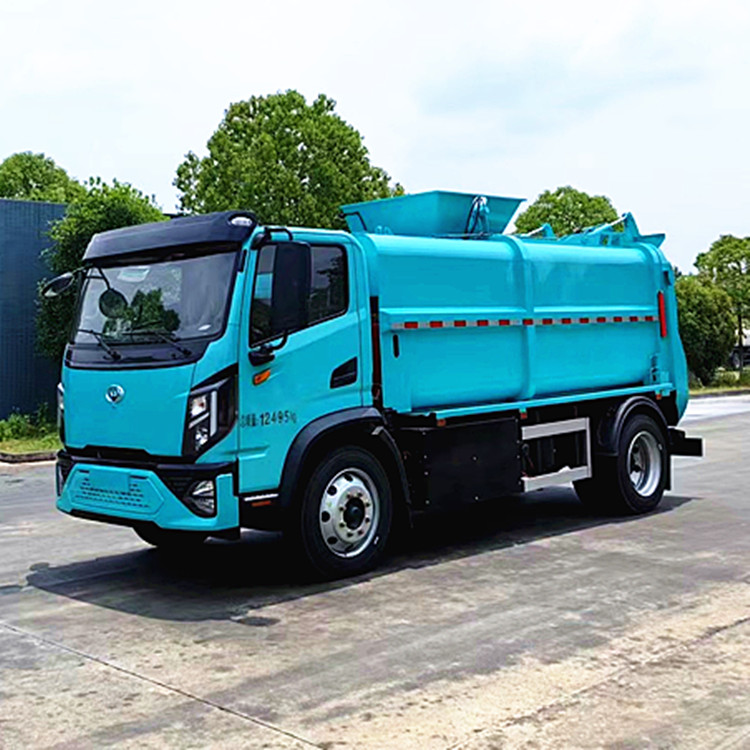

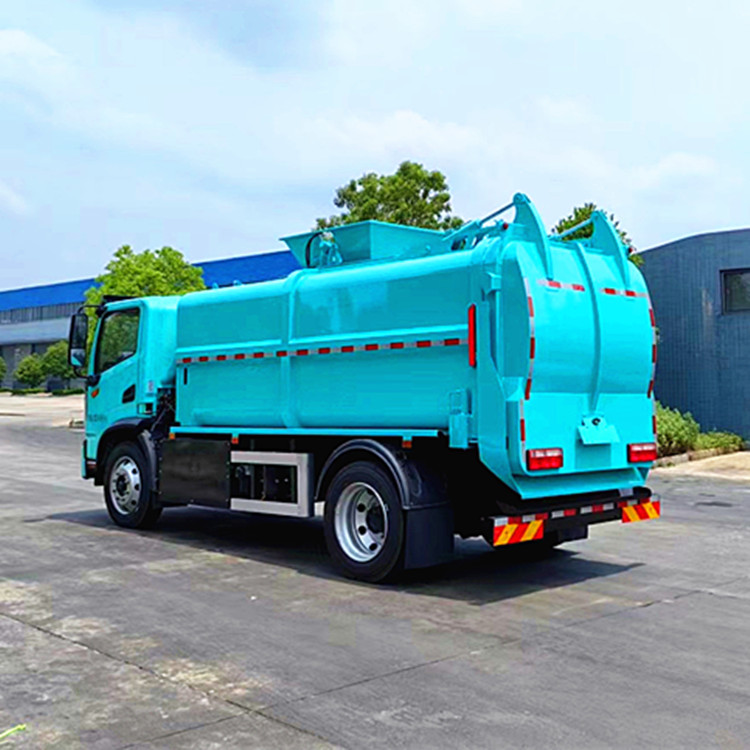

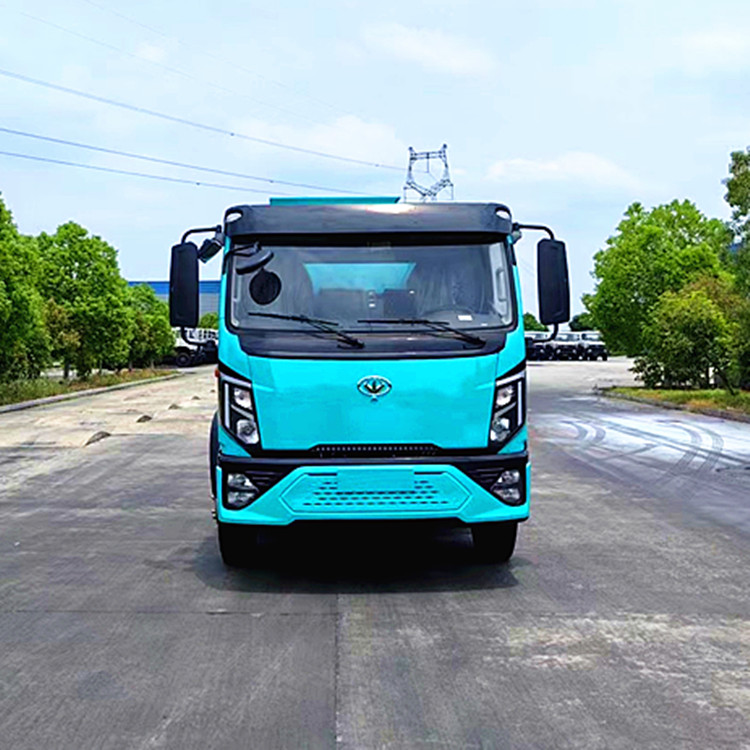

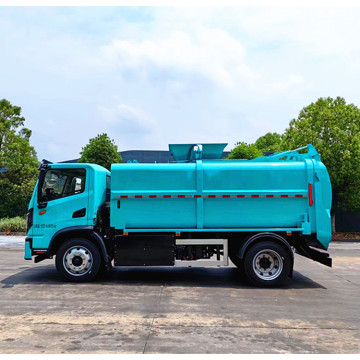

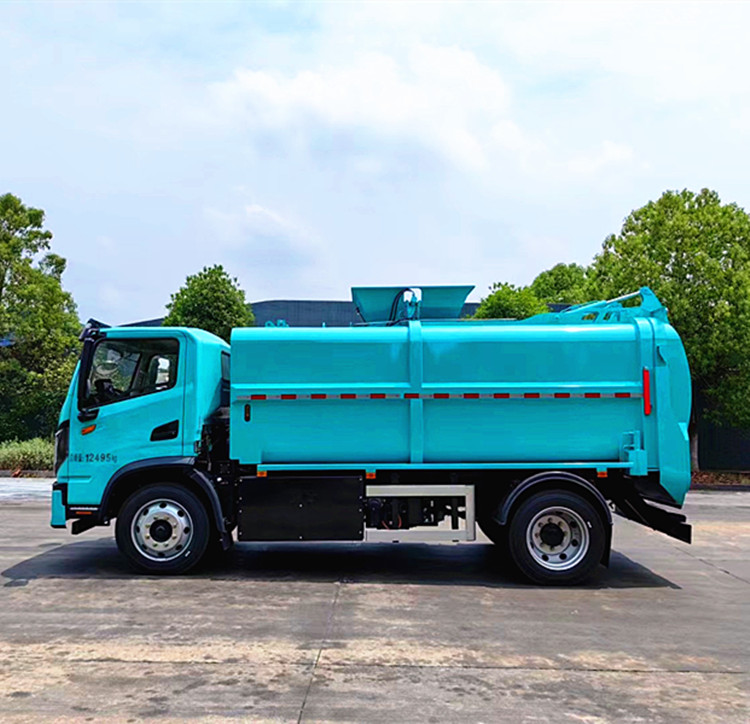

1. Food waste truck appearance parameters：The whole vehicle adopts the integrated design concept, and the joint coat design is based on the self-developed chassis of the truck.
The appearance is simple and smooth, and the color is fresh, which subverts the appearance image
of the traditional kitchen garbage truck and brings a bright color to the urban sanitation. | Product parameter |
| Gross mass | 12495kg |
| Quality of service | 7985kg |
| Load mass | 4510kg |
| endurance mileage | 300km |
| Battery capacity | 142.19kwh |
| Charging time | 35min（（SOC30%-80%）） |
| Box volume | 8.5m³ |
| Vehicle size | 6565×2395×3040mm |

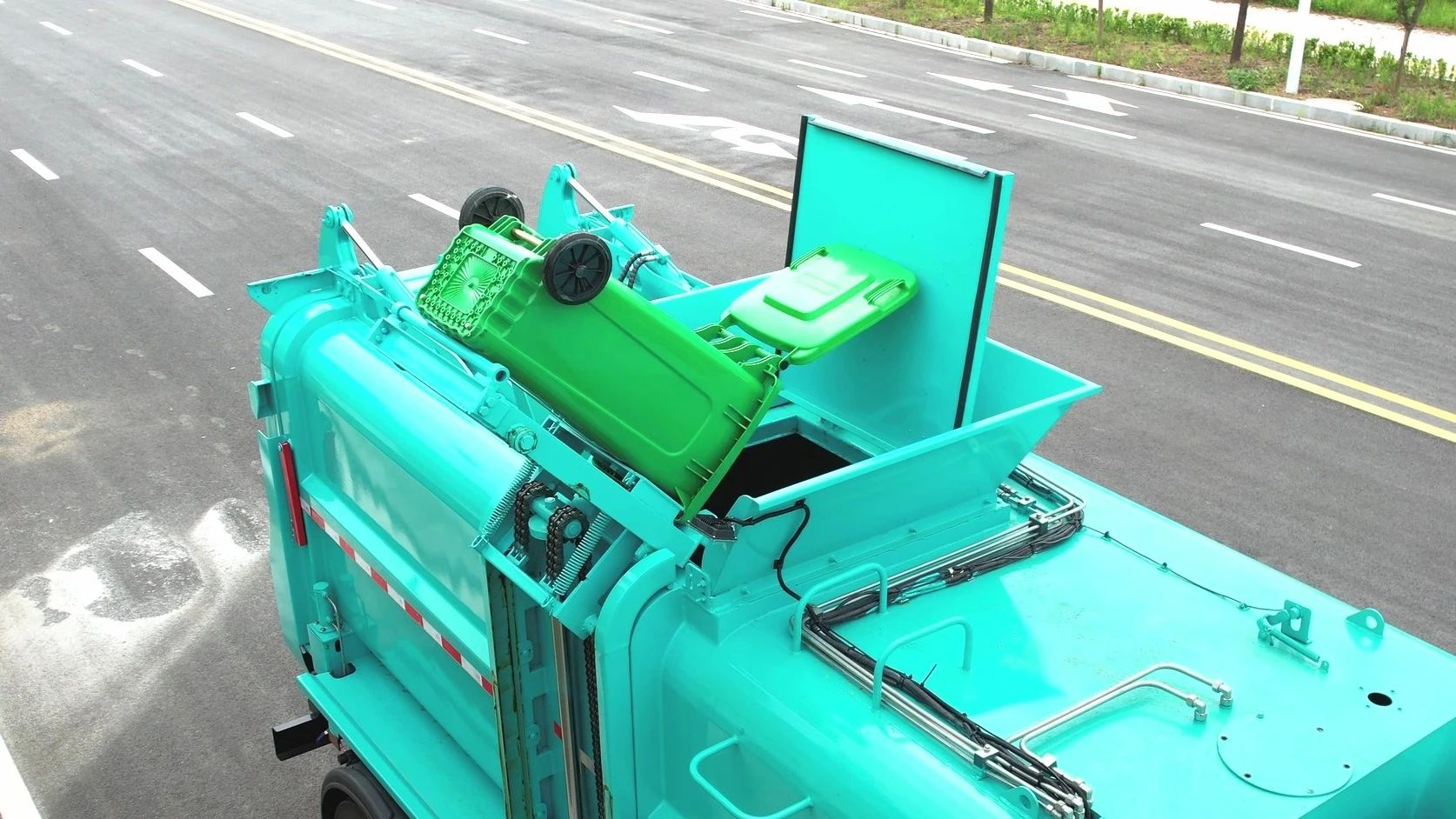

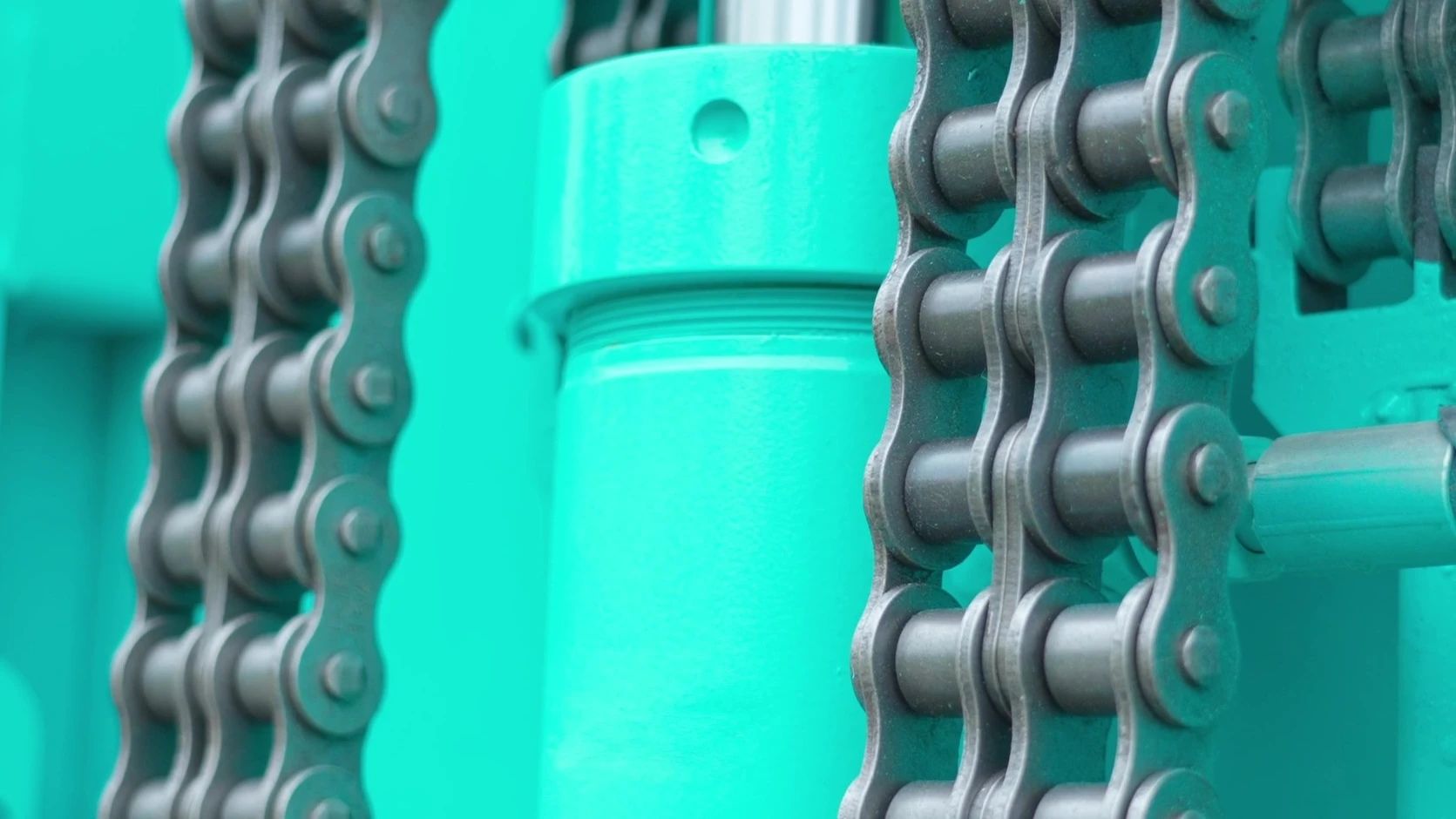

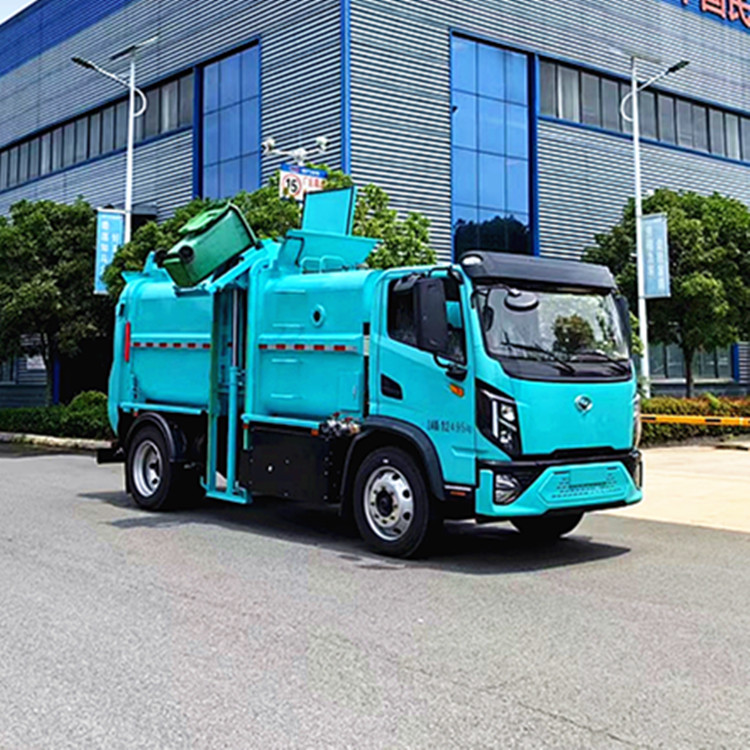

Smooth feeding: the feeding meets the 120L, 240L standard garbage can use,
innovative design chain feeding mechanism equipped with proportional speed control valve,
automatic lifting and dumping, efficient smooth, bucket tipping Angle ≧180°, garbage dumping clean.

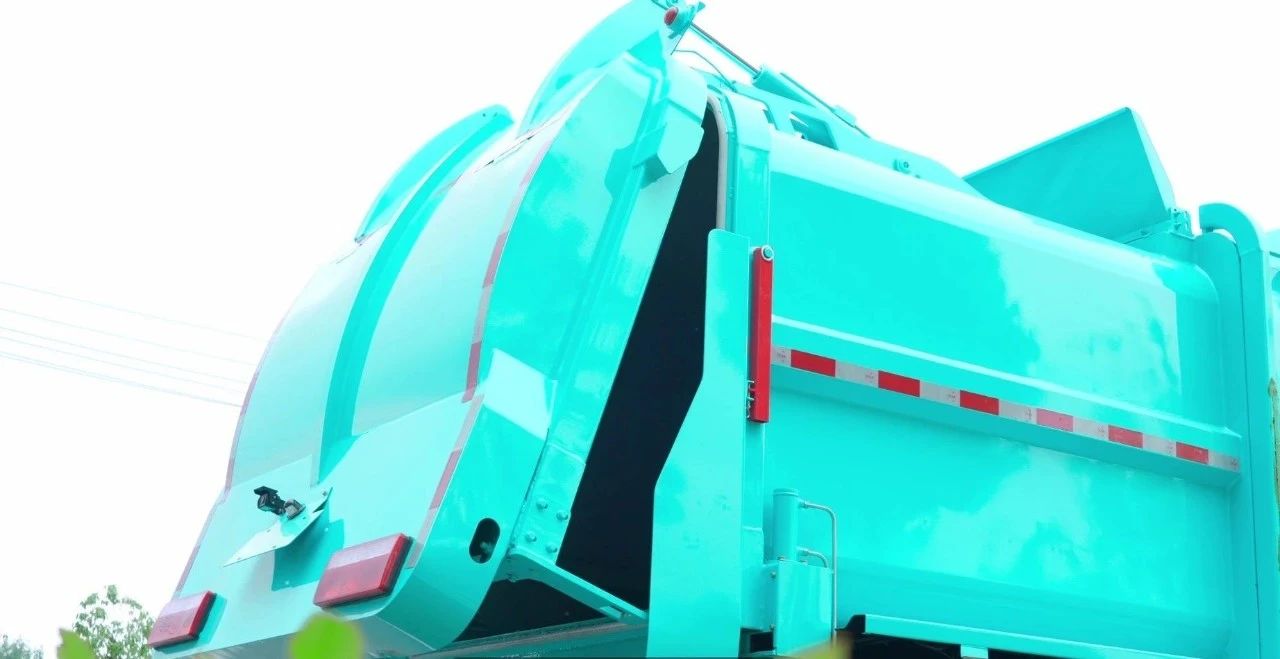

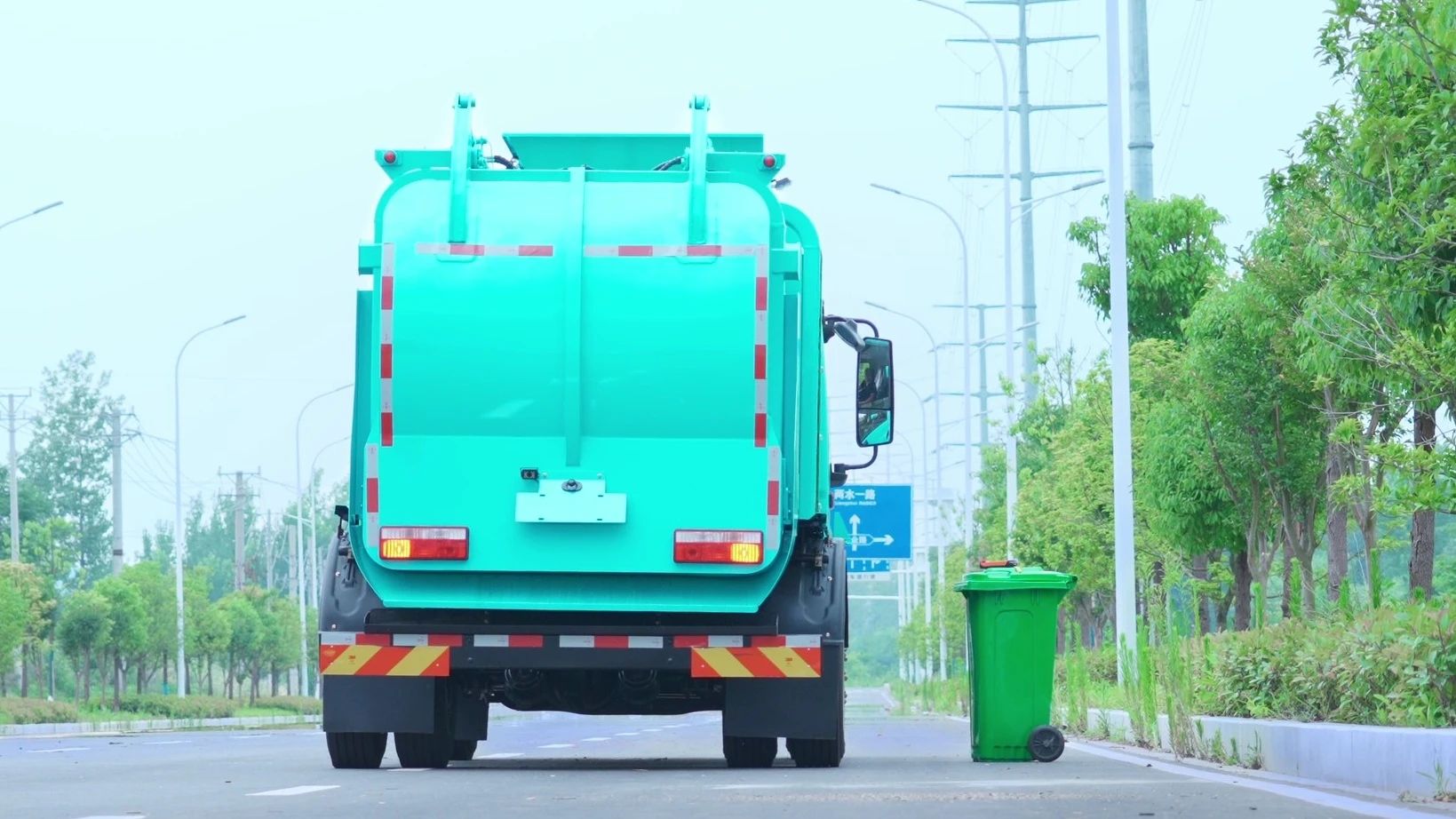

Good sealing: the latch cylinder + rear door cylinder combination lock seal, the box and the tail door between the reinforced silicone strip, anti-deformation, long service life, to ensure the whole sealing,
prevent "leakage", avoid secondary pollution.

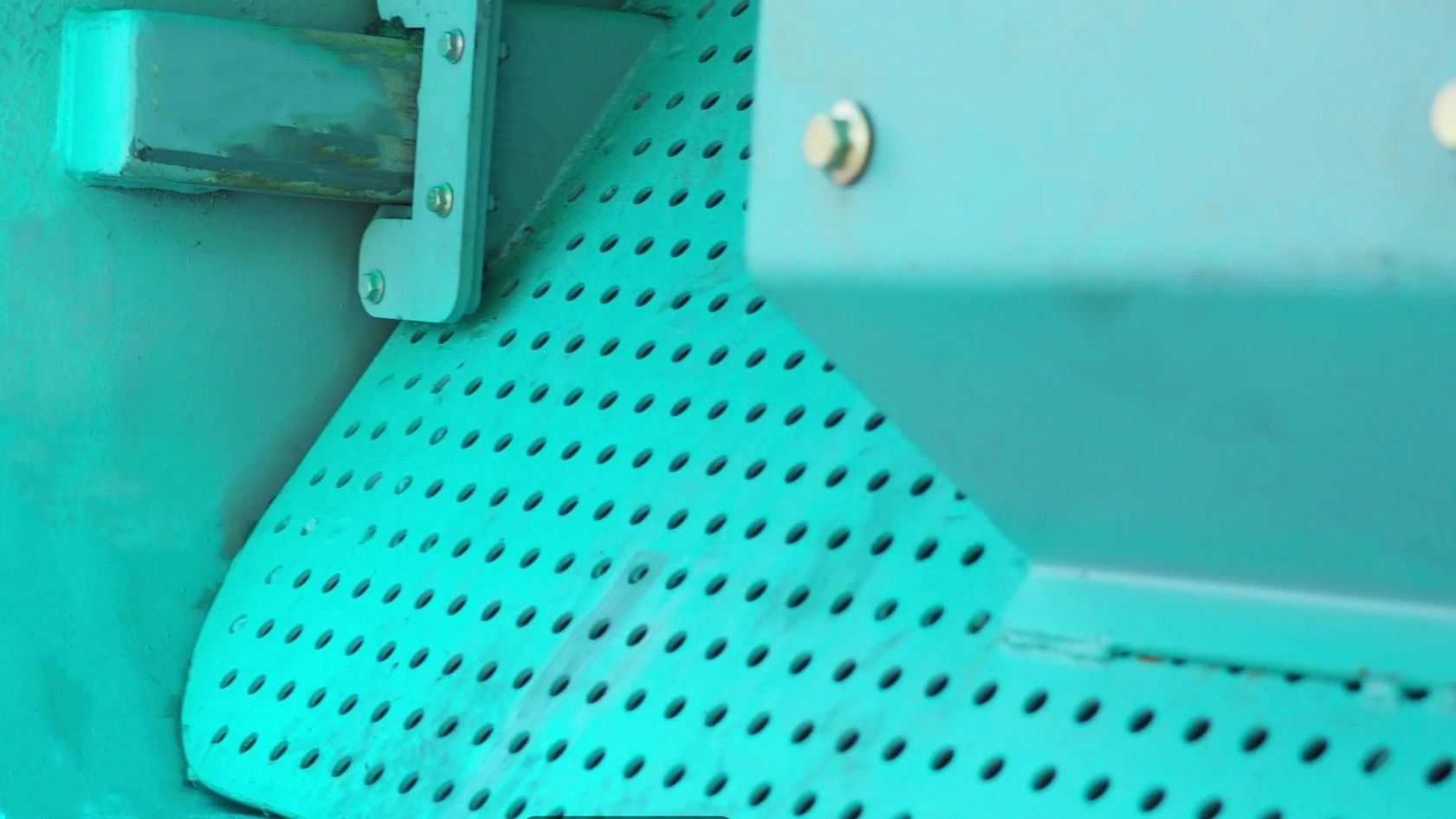

Solid-liquid separation and clean discharge: the interior partition of the box is designed to automatically realize solid-liquid separation in the garbage collection process.
The push shovel inside the garbage bin adopts the inclined push design, and the discharge is clean and no residue,
so that the garbage disposal is more efficient and convenient.
Large capacity, corrosion resistance: all the structural parts of the car are painted by high temperature electrostatic spraying process, to ensure that the structural parts do not corroded for 6-8 years.
The box is made of 304 stainless steel, the thickness of the dustbin is 4mm, the effective volume is 8 square,
the capacity is large, and the corrosion resistance is good.

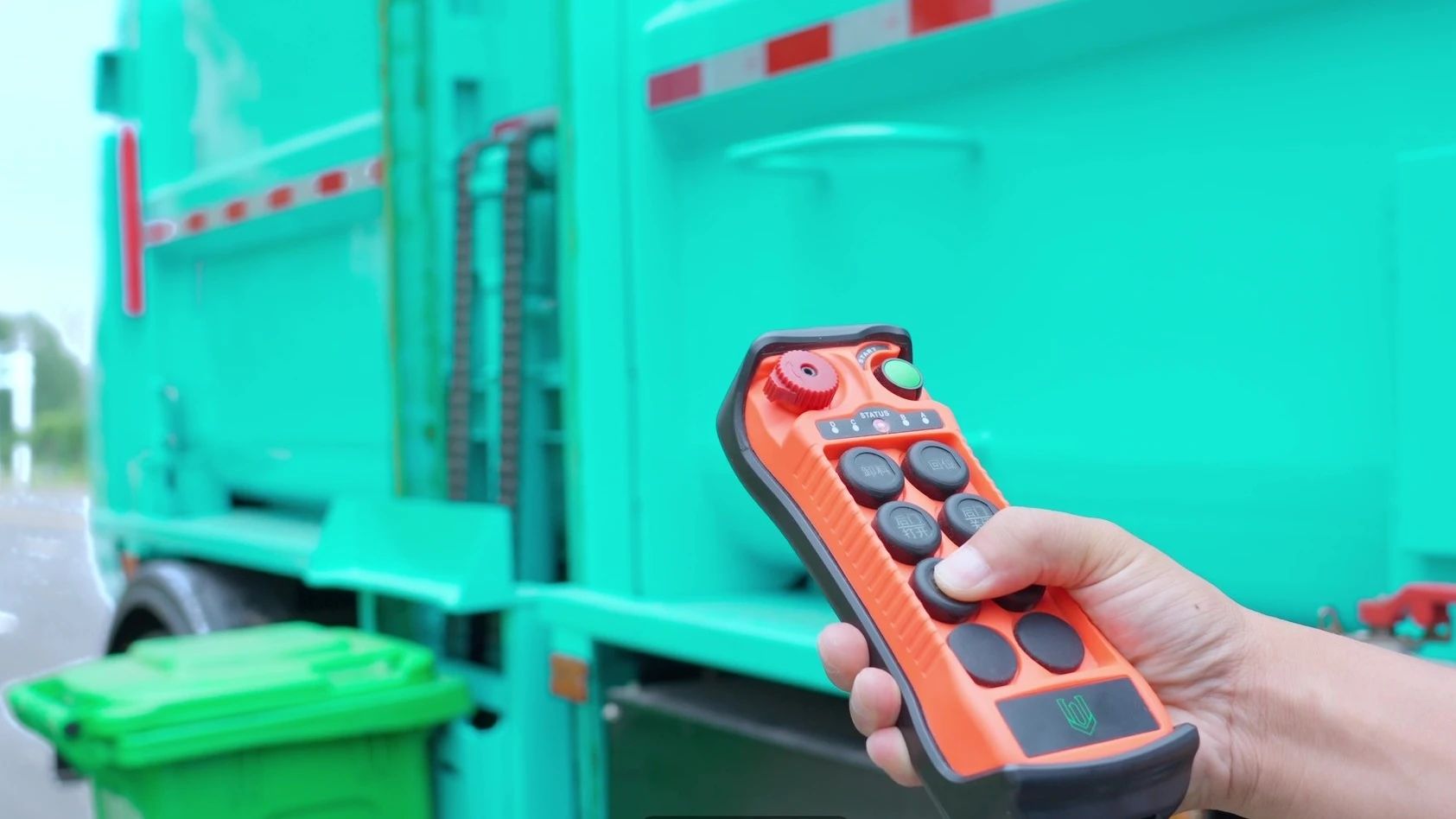

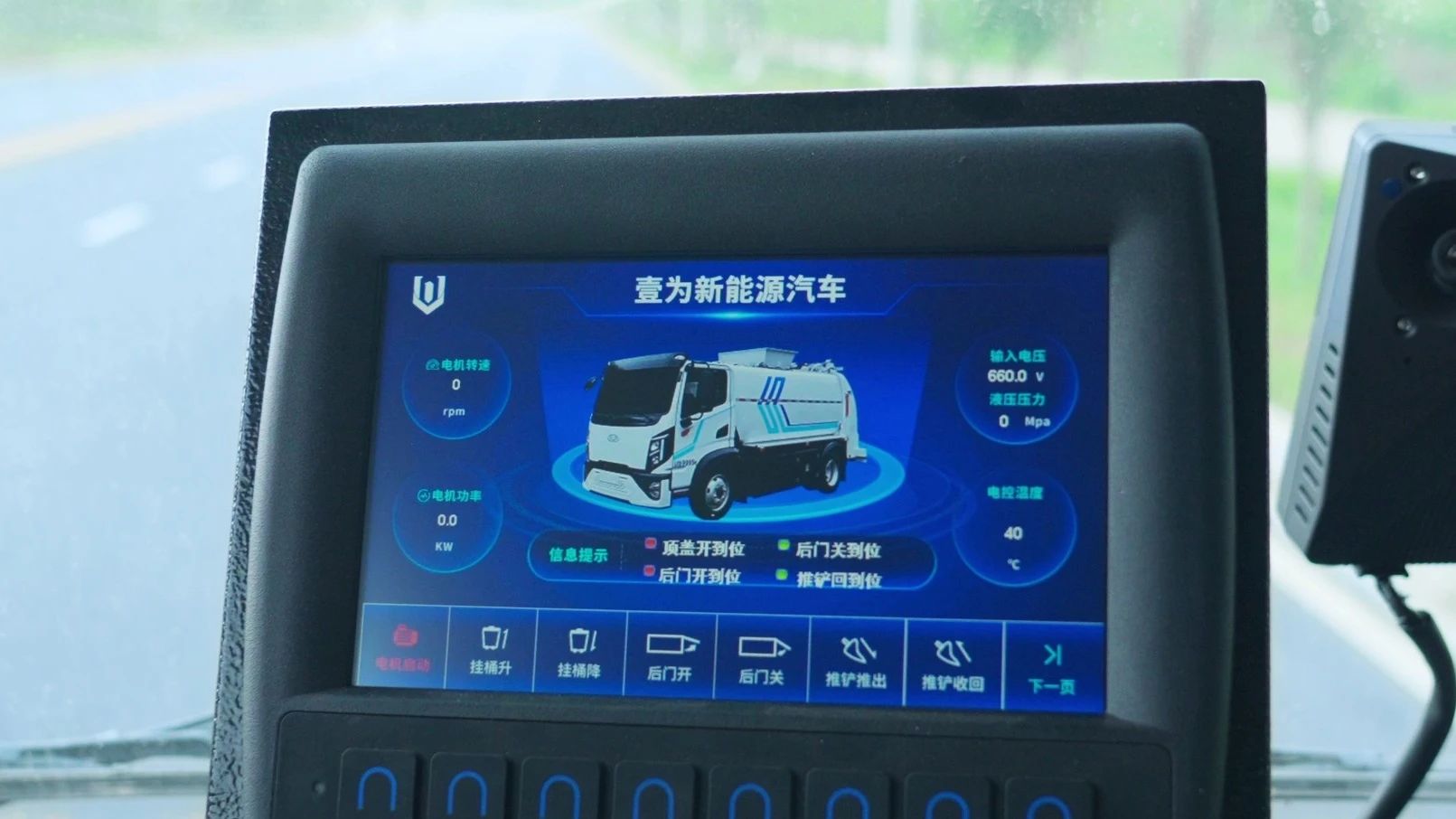

Intelligent operation: equipped with intelligent center control screen, automatic parking, wireless remote control, etc., multi-functional one-click operation of garbage collection and transportation,
safe and intelligent. A variety of configurations, optional intelligent weighing system,
360° circumnavigation system, improve the safety of work.

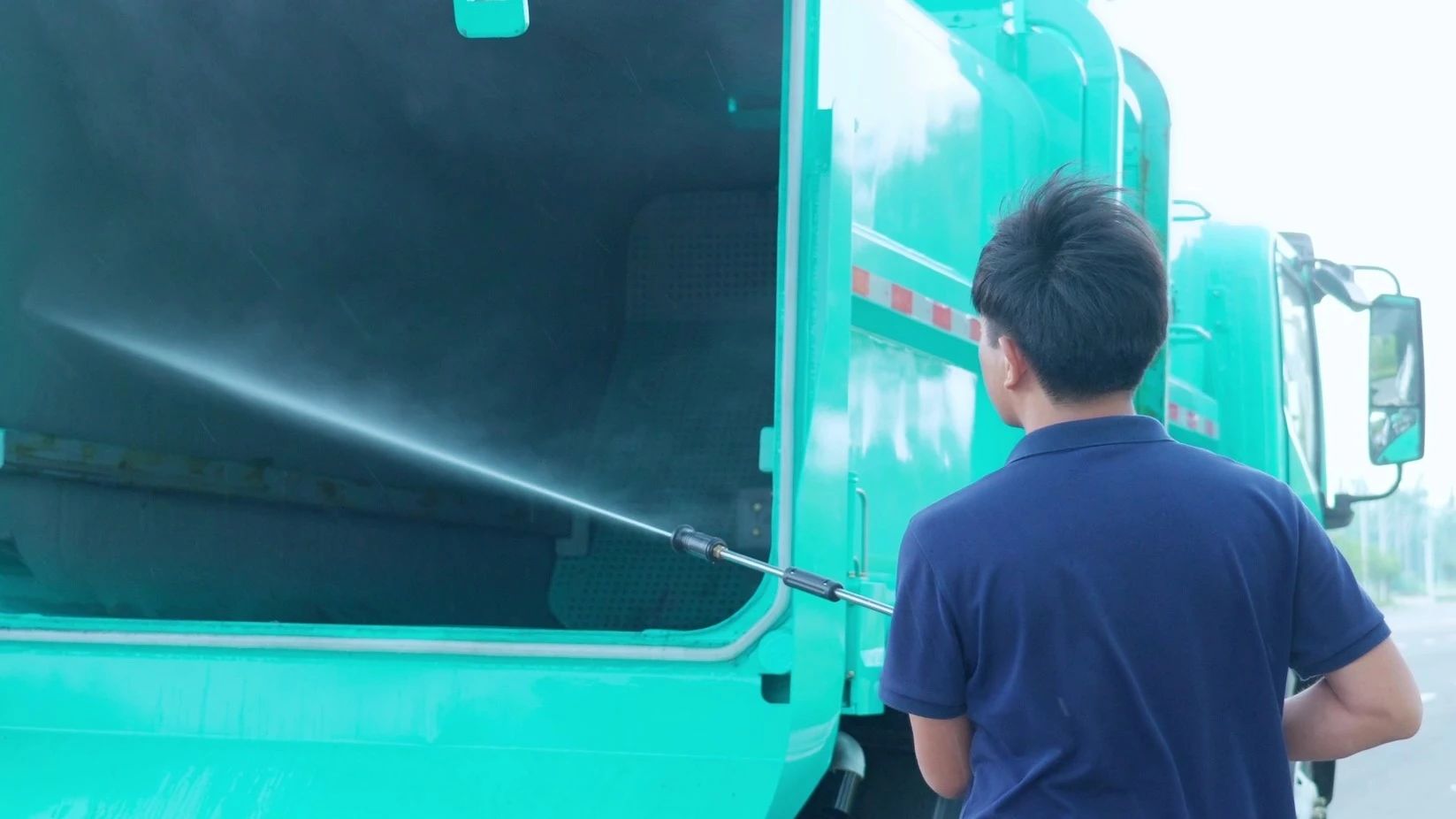

Self-cleaning function: Equipped with cleaning machine function, hose reel, hand-held spray gun, etc., can realize the cleaning of the body and trash can.
3. Food waste collection truck after-sales service guarantee In the follow-up car service, One for the car is committed to providing a full range of protection and support:
Warranty commitment: chassis power system key components (core three power) enjoy 8 years / 250,000 km warranty,
install 2 years warranty (individual models subject to after-sales service manual).
Service network: According to the customer's location, a new service network is set up within
20km to provide vehicle and Sanelectric fine, professional maintenance, "nanny" service to ensure that your car is carefree.
