Home > Products > Bucket Truck > Ladder Lift Truck > DONGFENG 45 meters ladder lift truck





View the big picture

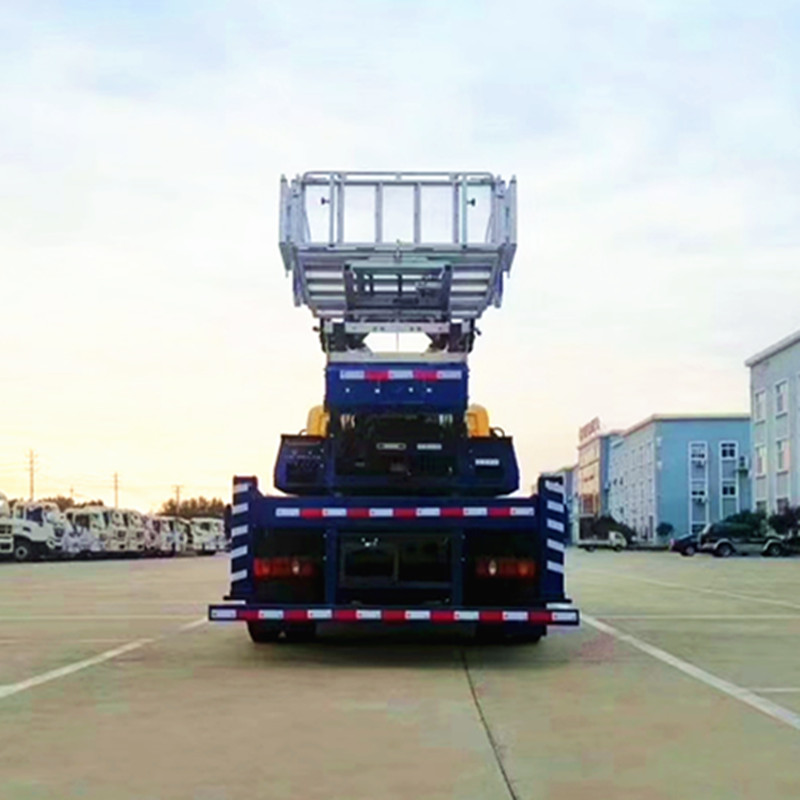

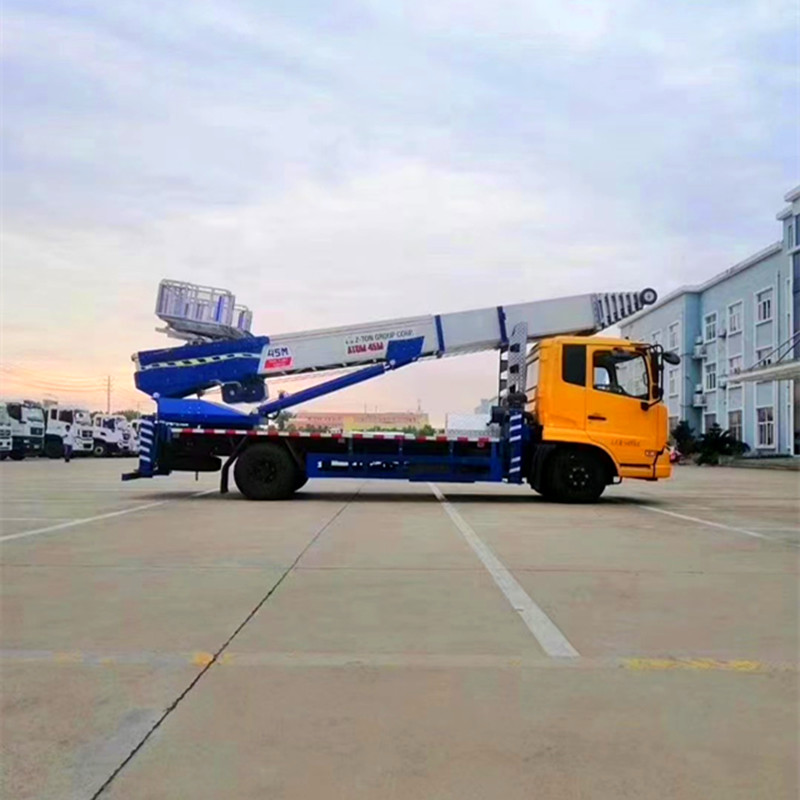

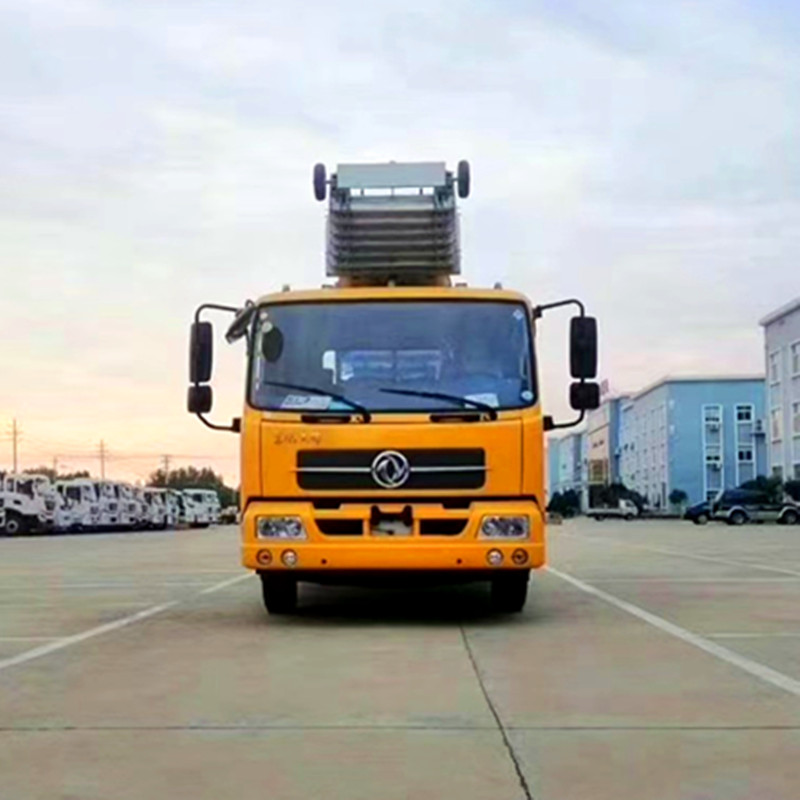

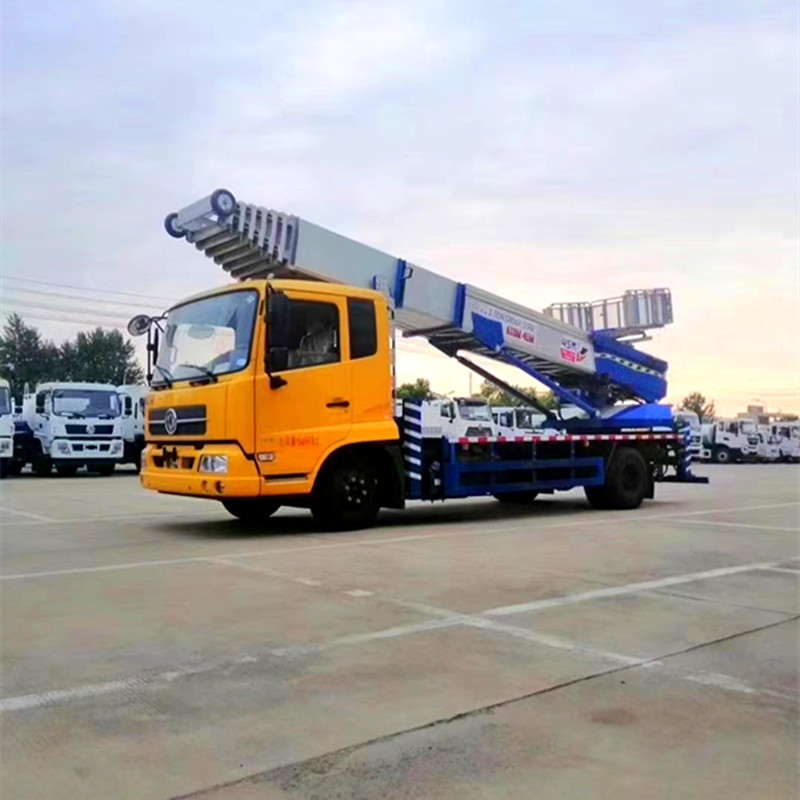

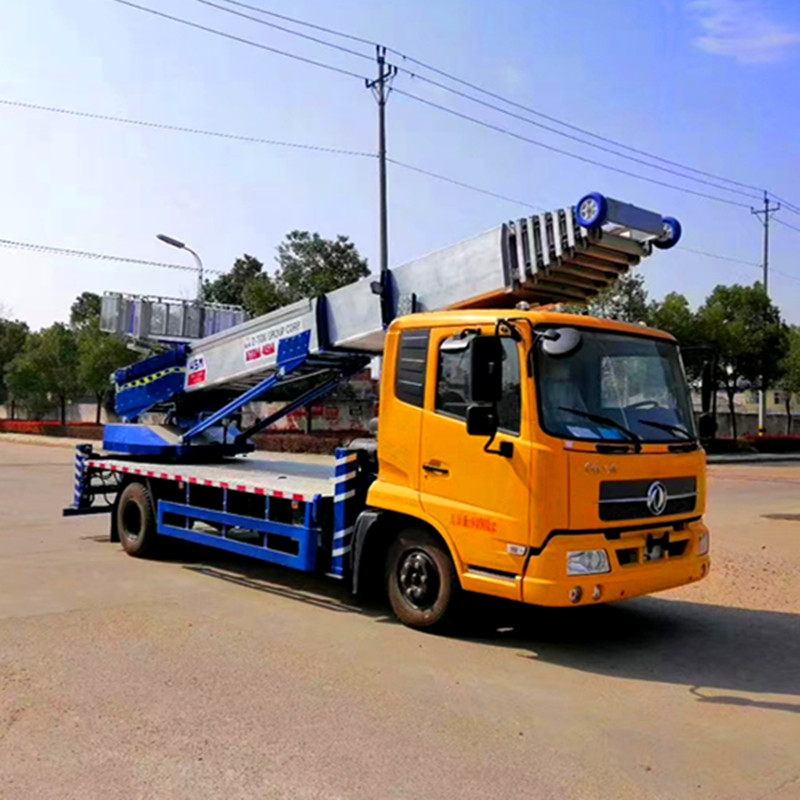

DONGFENG 45 meters ladder lift truck

Name: DONGFENG 45 meters ladder lift truck
Brand: Cheng Li Automobile Group
Price: 60500 USD
Rating: 4.8 (44 reviews)

Unit Price:

USD 60500 - 61500 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 8445*2470*3600mm

Curb Weight: 9570kg

Seating: 3

Number Of Tires: 6

Wheelbase: 4200

Tyre Size: 8.25R20

Horse-power: 190

Displacement: 3800ml

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG 45 meters Ladder Lift Truck introduction

item	item	unit	data
Vehicle size	Length	mm	8445
	width	mm	2470
	height	mm	3600
Quality parameter	Number of passengers		2
	Gross mass	kg	9700
	Quality of service	kg	9570
Main performance parameters	Working platform load rating	kg	400
	Maximum operating height	m	45
	Leg span	mm	1100
	item	unit	data
Configuration parameter	chassis		DONGFENG
	Engine type		B190-00
	Engine power/horsepower	Kw/ps	140/190
	Maximum travel speed	Km/h	100
	Number of tires		6+1
	Tyre specification		10.00R20
	Ladder arm		Import from Korea
	Boom form		7 section synchronous scaling
	Hydraulic system		Ms brake, ms motor
	Balance valve		Rexroth

Dongfeng Tianjin 45 meters ladder truck introduction:

1. Chassis and power of Bucket Truck

Dongfeng Tianjin chassis, equipped with Cummins engine, Euro 3 emission standards, such as 190 horsepower,

210 horsepower, 230 horsepower and other different power versions are optional,

match the Fast gearbox, strong power, efficient transmission, can adapt to a variety of complex road conditions.

2.Ladder Lift Truck dimensions and weight

The length of the vehicle is about 8-10 meters, the width is about 2.5 meters, the height is about 3.5-4 meters,

and the total mass is generally between 10-15 tons, which varies depending on the configuration.

3.aerial work vehicle ladder and working platform

The working height is 45 meters, the working arm is 7-section retractable, and the hexagonal or octagonal structure is adopted,

with high strength, synchronous expansion and large working range.

The maximum load-bearing capacity of the working bucket is generally about 200 kilograms,

and some models are equipped with 1.8 meters of stainless steel hanging baskets.

The mechanical self-balancing design can always maintain a balanced state.

4.aerial bucket truck function configuration

• Operation mode: The turntable can be operated, or it can be operated by remote control to achieve 360-degree rotation.

The vehicle has three operations, including platform operation, ground wired electric control operation

and wireless remote control operation, which is convenient to observe the working space and improve the working efficiency.

• Safety configuration: computer control, automatic limiting, dangerous work alarm, excellent safety performance.

There is a display on the car, which displays the working condition of the vehicle in real time.

The four vertical leg cylinders are equipped with two-way hydraulic locks, and the working arms are equipped

with two-way balance valves, which are interlocked between the legs and the working arms to prevent misoperation.

• Lighting system: the operating platform can be equipped with operating lights according to the customer's working environment,

and some models are equipped with working lights, which is convenient for night operation.

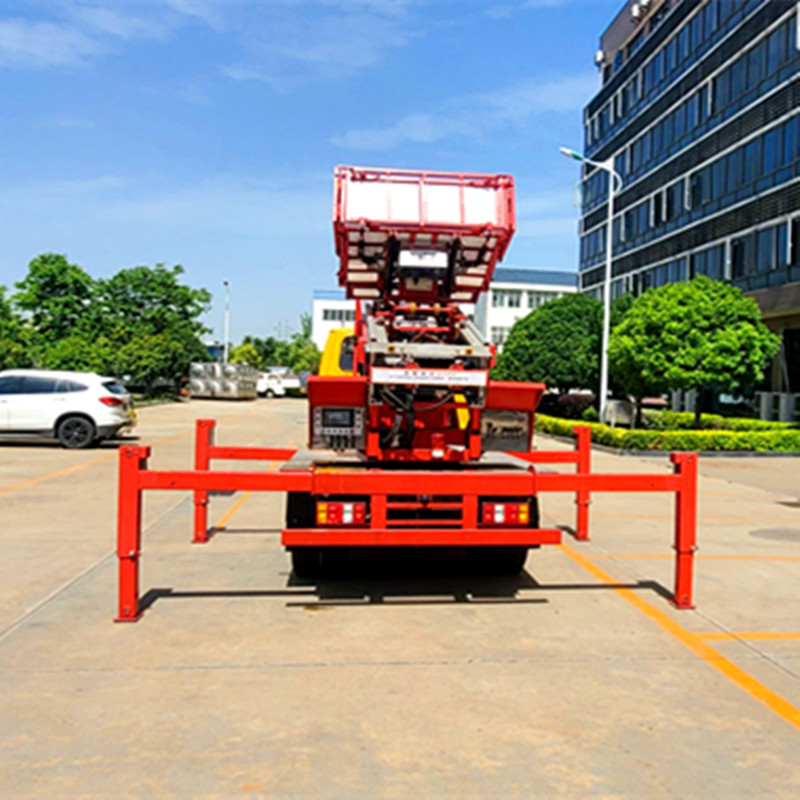

• Leg structure: Front V, rear V or front V, rear H two telescopic legs, individually adjustable, leg span is large,

the force surface is larger, higher stability, even if the ground is uneven, but also can make the whole vehicle adjusted to a stable state,

and equipped with leg flashing lights for outline and light alarm.

5. Moving operation truck application scenario

Widely used in municipal, electricity, street lights, advertising, communications, photography, landscape,

shipbuilding, transportation, docks, airports and ports, rescue and rescue, large-scale industrial and mining enterprises

and other industries installation and maintenance and climbing operations, It can also be used for project leasing,

curtain wall construction, rooftop solar and waterproof operations, outdoor unit installation of air conditioning,

ship maintenance, road and bridge repair, moving company, cement sand and stone handling and other scenarios.
