Cheng Li Automobile Group
| Unit Price: | USD 38600 - 39500 / Piece/Pieces |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF,EXW |
Basic Info
Brand: clw
Old And New: New
Emission Standards: Euro 3, Euro 5
Fuel: Diesel
Place Of Origin: China
Vehicle Size: 8995x2550x3980mm
Body Size: 6800*2400*2400mm
Total Mass: 18000kg
Curb Weight: 9000kg
Seating: 3
Wheelbase: 5100mm
Number Of Tires: 6
Tyre Size: 10.00R20
Horse-powe: 260HP
Brake System: Air brake
Additional Info
Productivity: 30unit/month
Transportation: Ocean,Land
Place of Origin: china
Supply Ability: 30unit/month
Certificate: 3c
Port: tianjin,shanghai,qingdao
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
Product Description
| Total mass(Kg) | 18000 | Box volume(m3) | 43 |
| Rated load mass(Kg) | 8870 | External dimensions(mm) | 8995x2550x3980 |
| Quality of equipment(Kg) | 9000 | Cargo compartment size(mm) | 800x2450x2600 |
| Number of passengers allowed in cab | 2,3 | Wheelbase(mm) | 5100 |
| Axle load(Kg) | 6500/11500 | Maximum speed(Km/h) | 89 |
| Chassis type | df | Chassis name | Chassis of a truck |
| Number of axes | 2 | Number of tyres | 6 |
| Tire specifications | 10.00R20,275/80R22.5 | ||
| Type of fuel | Diesel fuel | Rear wheel base(mm) | 1800 |
| Engine type | Engine Manufacturing Enterprise | Displacement(ml) | Power(Kw) |
| YC6A260-33 | Yuchai engine | 6800 | 191 |
Dongfeng chick truck is a professional chick transport vehicle, the following is its relevant introduction:
1. Baby chick truck configuration
• Body structure: mostly all stainless steel insulation structure, external parts of glass steel veneer, heat preservation and easy to clean.
• Layered loading mechanism: the box is equipped with 2 or 3 layers of layered loading mechanism,
the hydraulic system controls the lifting of the partition board, and each layer of partition board has a column partition.
• Feeding system: composed of liquid food tank, pipeline pump, pipe, feeding mouth, etc., which can transport liquid food for feeding.
• Constant temperature system: composed of vehicle chiller, heater, gas mixing conveying bin, exhaust fan, etc.,
to maintain constant temperature in the carriage.
• Spray system: air pressure water tank, pipe, nozzle and sewage collection box, to spray cooling and clean the body.

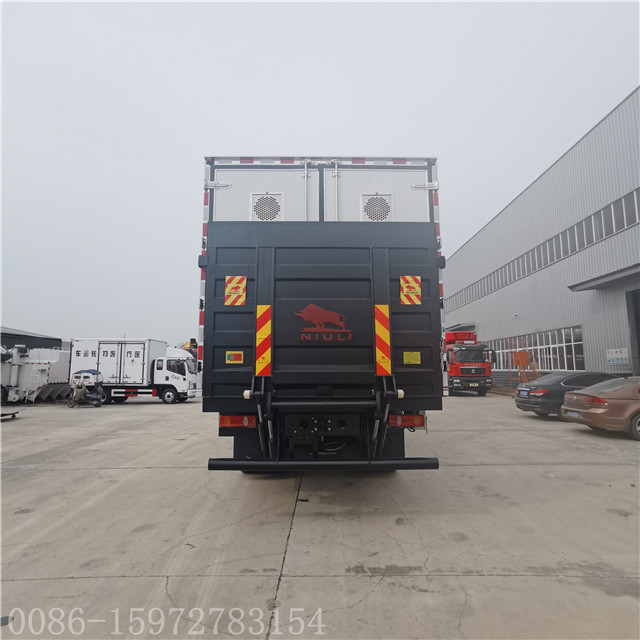

• Access: The rear door is hydraulically automatically opened to form a channel,
and is equipped with guardrail to facilitate the entry and exit of chicks.
• Power supply system: equipped with micro generator, power supply for related equipment.
2. Chassis configuration
• Cab: Most of them are half high top row with half sleeping cab, some are flat top row with half cab,
providing a comfortable driving environment.
• Engine: Dongfeng Cummins National Five 180 HP diesel engine or Cummins 6.2-liter displacement 245 HP engine, etc.,
sufficient power and low fuel consumption.
• Transmission: common Datong 7-speed transmission or Fast 8-speed transmission, smooth shift operation is easy.
• Tires: equipped with 9.00 steel wire tires or 10.00R20 steel wire tires, etc., good load bearing and wear resistance.
3. Application scenario of Livestock And Poultry Transport Vehicles
• Chick transport: mainly used for chick transport, but also suitable for duck, goose and other chicks,
to provide a suitable environment to improve the survival rate.
• Long-distance transportation: With good insulation, ventilation and feeding systems,
long-distance transportation can be achieved to meet the needs of farms in different regions.
Product Categories : Special Purpose Vehicle > Livestock And Poultry Transport Vehicles
