| Vehicle brand/vehicle name | ace | Cleaning suction truck |
| Engine brand | Weichai Power | Horsepower | 350 horsepower |
| Vehicle size | 12000*2550*3950mm | Tank volume | 25m³ |
| Tire specifications | 12.00R20 | Number of tyres | 12 |
• Strong power: Often equipped with Weichai engine, such as the 460-horsepower Weichai engine, strong power output,
can provide sufficient power for vehicle cleaning and pollution absorption operations,
to ensure that the vehicle can operate efficiently under various working condition
•strong bearing capacity: the chassis design of the top four and back eight makes it have excellent bearing capacity
and can stably carry 25 square tanks and related equipment to ensure the stability of the vehicle during operation.
• High comfort and convenience: equipped with a high-top cab, hydraulic suspension, air master seat, etc.,
to provide a comfortable working environment for drivers and passengers. At the same time, it also has electric air conditioning,
electric shaking window machine, remote control key, multi-functional steering wheel, fixed speed cruise,
LCD instrument panel and other configurations to improve the vehicle's handling convenience.
2. Sewer Septic Truck configuration • Reasonable tank design: the total volume of the tank is about 25 square meters,
of which the clean water tank is about 8-10 cubic meters, and the sewage tank is about 15-17 cubic meters.
The tank is made of 8mm carbon steel, strengthening the large frame and interconnecting the two silo.
There are widened platforms and guardrail on both sides of the tank,
which is convenient for the operator to carry out related operations on the top of the tank.
• Efficient cleaning system: Equipped with Pinfu 330 flow and above high pressure cleaning pump,
such as with 100 meters inner diameter 25 custom wear-resistant high pressure pipe, reel hydraulic rotation,
but also equipped with a 10 kg gun head, can produce a strong water impact, effectively dredge and clean sewage, pipeline and other blockages.
• Reliable suction system: The auxiliary engine adopts Weichai 420 horsepower engine with 258 water circulation pump,
which has large suction force and long suction range, and can quickly pump all kinds of sludge and sewage. At the same time,
it is equipped with 8-meter suction pipe, 800mm hydraulic sewage outlet at the back of the tank,
and 150 and 100 sewage ball valves to facilitate sewage operation.
• High functional integration: set cleaning and pollution absorption functions in one, can be simultaneously
or separately cleaning and pollution absorption operations, improve work efficiency, suitable for sewer, septic tank,
sewage pipes and other scenarios of cleaning and dredging.
• Easy operation: The whole vehicle adopts one-button operation, high degree of automation, operation rod control,
large diameter hydraulic roof design, so that the operator can easily control the various operation functions of the vehicle, reducing labor intensity.
• Safe and reliable: The production process of the tank and its components is strict and the quality is reliable.
At the same time, the vehicle is equipped with anti-overflow device, oil-water separator and other safety devices to prevent the leakage of sewage,
dirt, etc., to protect the environment and the normal operation of the vehicle.

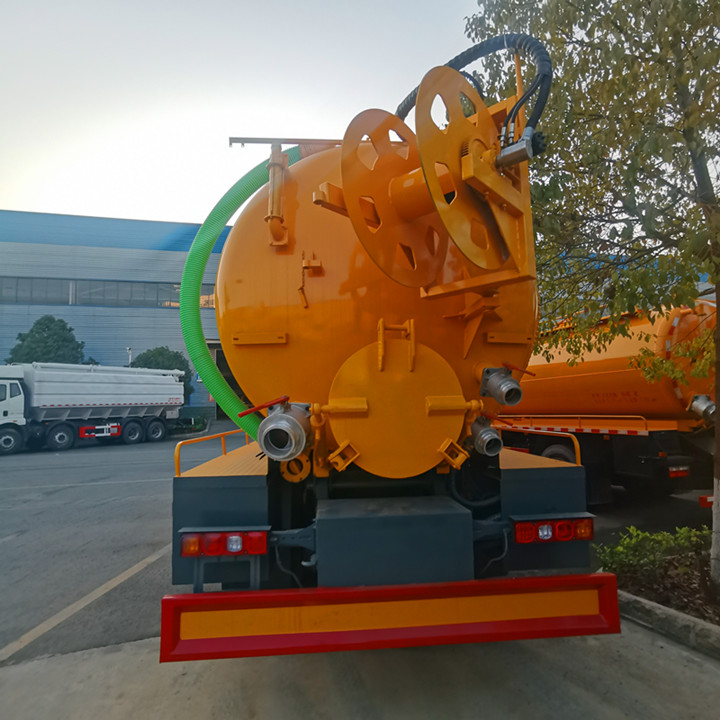

• Easy maintenance: tank hydraulic lifting, back cover hydraulic opening design, easy to clean and maintain the inside of the tank. In addition,
the vehicle parts layout is reasonable, easy to repair and replace, reducing later maintenance costs.
Product Categories : Sewage Truck > Pipe Unclogging Truck
