Home > Products > Garbage Truck > Side Loader Garbage Truck > DONGFENG Self Loading And Unloading Garbage Truck





View the big picture

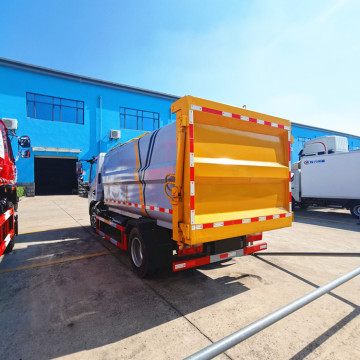

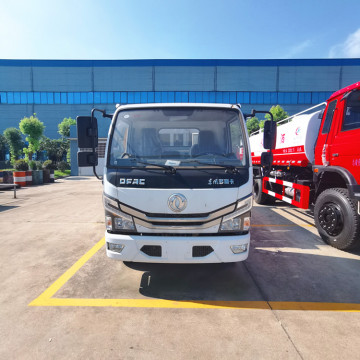

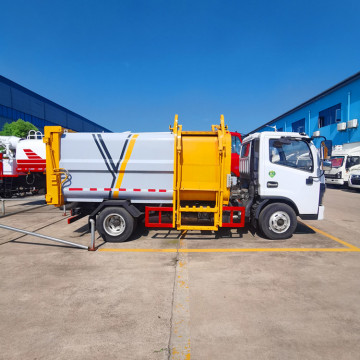

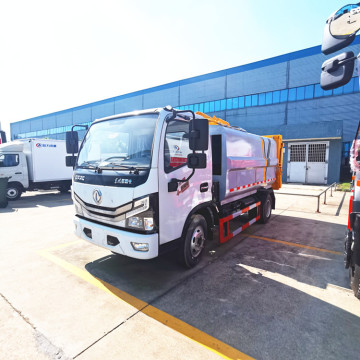

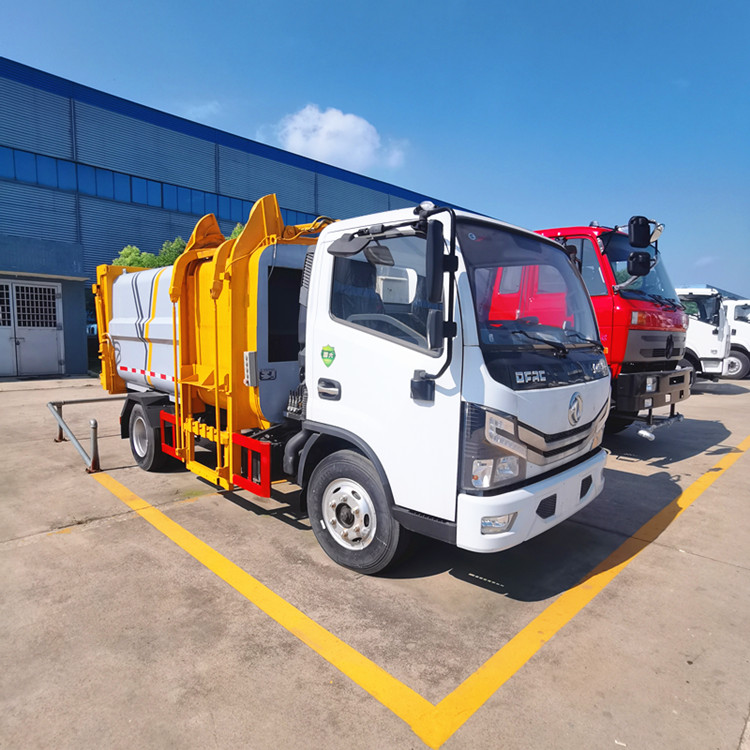

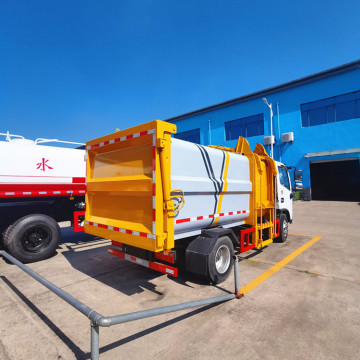

DONGFENG Self Loading And Unloading Garbage Truck

Name: DONGFENG Self Loading And Unloading Garbage Truck
Brand: Cheng Li Automobile Group
Price: 23200 USD
Rating: 4.7 (10 reviews)

Unit Price:

USD 23200 - 23800 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 5793*2090*2280mm

Gross Mass: 7360kg

Curb Weight: 3810kg

Seating: 2

Wheelbase: 3308mm

Number Of Tires: 6

Tyre Size: 7.00R16

Horse-power: 120HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c certification

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG 7cbm Self loading Garbage Truck Parameter configuration

Project	Parameter	Notes
The model number of the vehicle	clw
Wheelbase（mm）	3308	optional
Engine brand	120 horsepower	optional
Engine power(kw)	88kw	optional
Vehicle size (length x width x height)（mm）	579320902280
Total mass（kg）	7360
Quality of equipment（kg）	3810
Working speed（kw/h）	Engine speed	In-situ idling operation
Effective volume of box body（m³）	7
Operation Mode	Electronic/manual
Cycle time of one feed	12-30s
Discharge time	≤25s

Introduction of Dongfeng Side Loader Garbage Truck:

1. side load trash truck Basic Information:• Chassis configuration: Generally adopted Dongfeng Dolica original chassis, wheelbase 3308mm,

equipped with full chai 136 horsepower or Yuchai 140 horsepower diesel engine, flat head white front turn cab, with direction assist,

air conditioning, electric glass, central control lock, with 7.00 steel tire/spare tire and five-speed transmission.

2. Garbage truck installation configuration：

• Box: Mostly 6 cubic volume box made of high quality and high strength Q345 manganese steel, some are 7 square curved box,

box material is 4mm carbon steel.

• Hydraulic system: Use such as Yangzhou Zhongmei multi-way valve, Hepres hydraulic cylinder

and other well-known brand accessories, lifting cylinder for domestic well-known hydraulic parts manufacturers produced double acting cylinder.

• Loading and unloading mechanism: Some models are equipped with garbage can lifting system, with garbage can locking structure,

such as single-cylinder double-chain elevator, can hang 240L standard plastic garbage can, feed port cover hydraulic switch,

push shovel discharge, hydraulic lock back door.

3. Working principle of side loader rubbish truck： The automatic loading and unloading of garbage is realized

through the control of hydraulic system. When loading garbage, the garbage can can be poured into the car by the lifting system,

or the auxiliary loading through the scraper, skateboard compression mechanism; When unloading garbage,

the hydraulic lifting mechanism is relied on to tilt the carriage at a certain Angle, so that the garbage can be unloaded by itself under the action of its own weight.

4. Performance characteristics of side loader waste truck：

• Good tightness: effectively prevent dust or leakage of garbage during transportation to avoid secondary pollution.

• Easy operation: The automatic control system of machine, electricity and hydraulic is used to realize the automation of garbage loading,

compression, unloading and other operations, and it is equipped with indoor and outdoor control system, easy and fast operation.

• High compression ratio: the garbage can be repeatedly compressed, making the volume of garbage smaller, increasing the loading capacity,

and improving the transportation efficiency.

• Strong applicability: can be widely used in sanitation, municipal, factory and mining enterprises, property communities, schools,

scenic spots and other places of garbage collection and transfer.

5. Garbage truck maintenance：

• Check the oil condition of the hydraulic system regularly to ensure that the oil is clean and no leakage, and replace the hydraulic oil and filter element in time.

• Check the electrical system of the vehicle to ensure that the electrical components are working properly, the wires are firmly connected, and there are no problems such as damage or short circuit.

• Due to the corrosion of garbage, it is necessary to regularly clean and anti-corrosion treatment of compartments, garbage cans and other parts to extend the service life.
