Home > Products > Bucket Truck > Telescopic Bucket Truck > CLW 33 m telescopic boom bucket truck





View the big picture

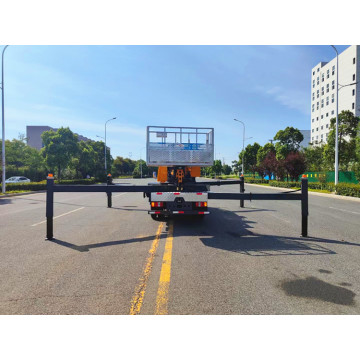

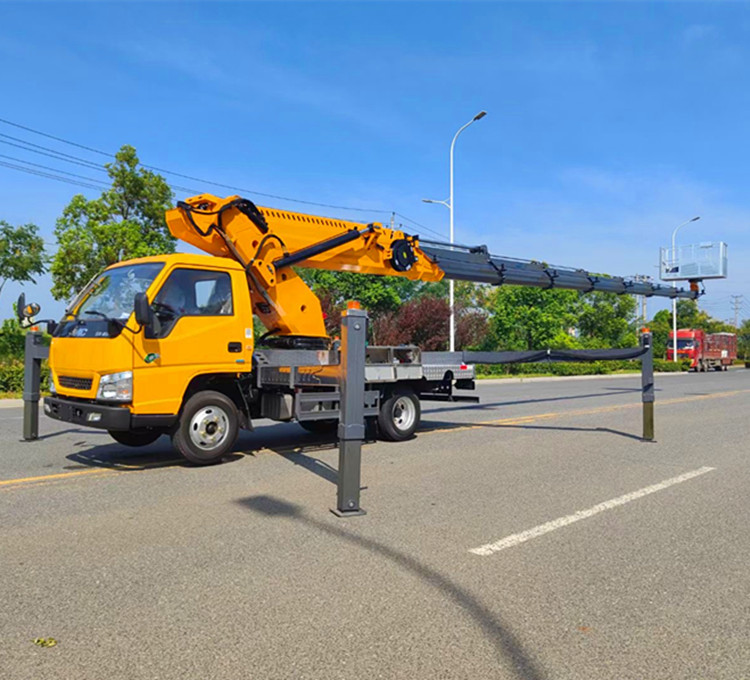

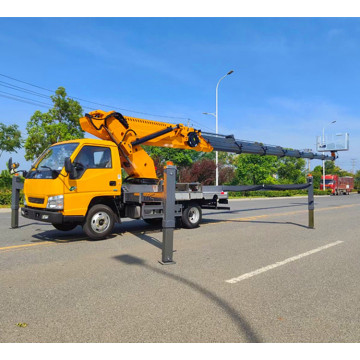

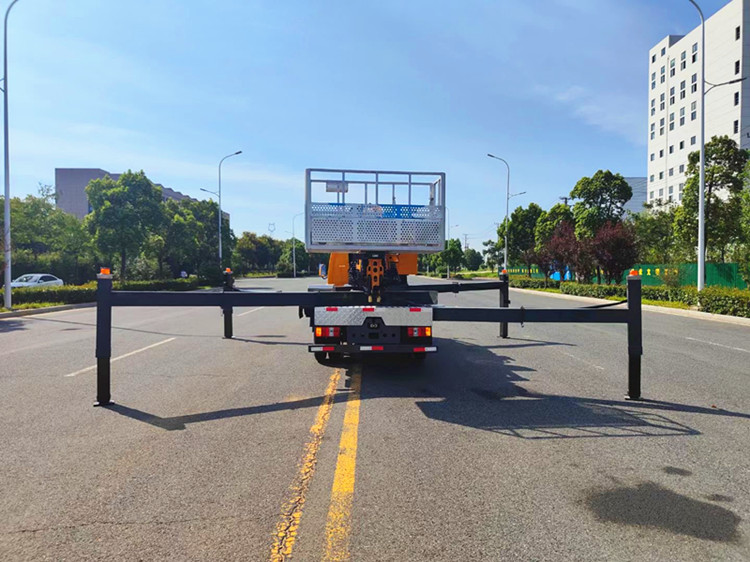

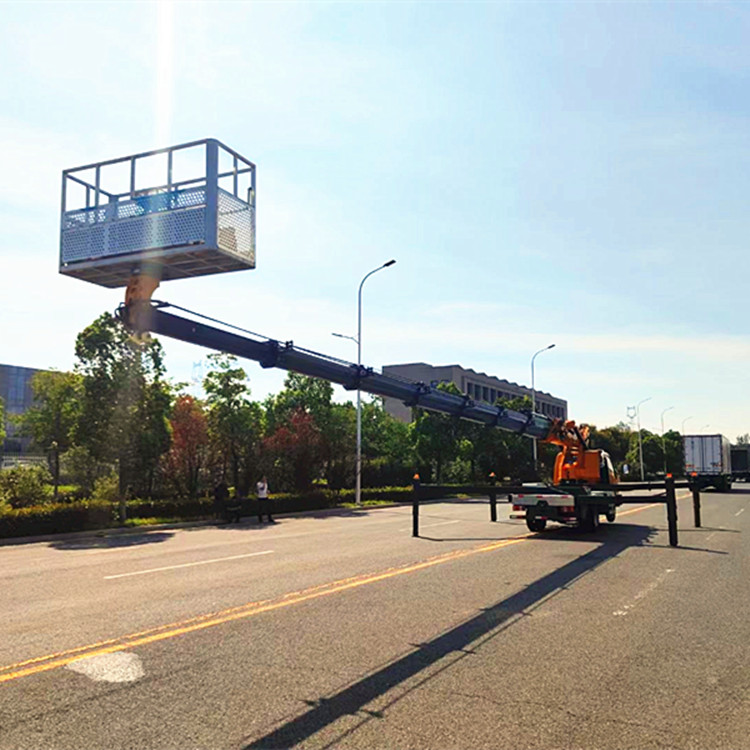

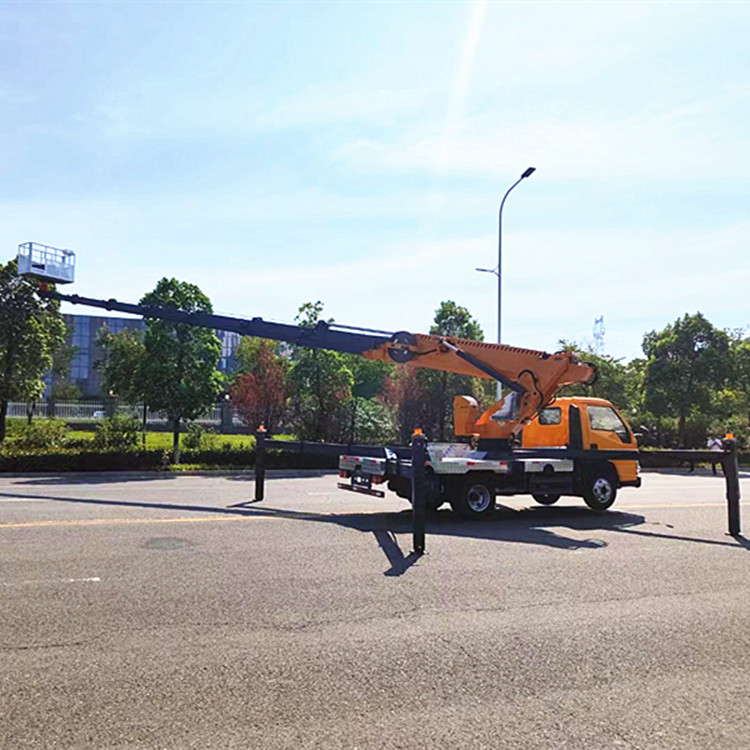

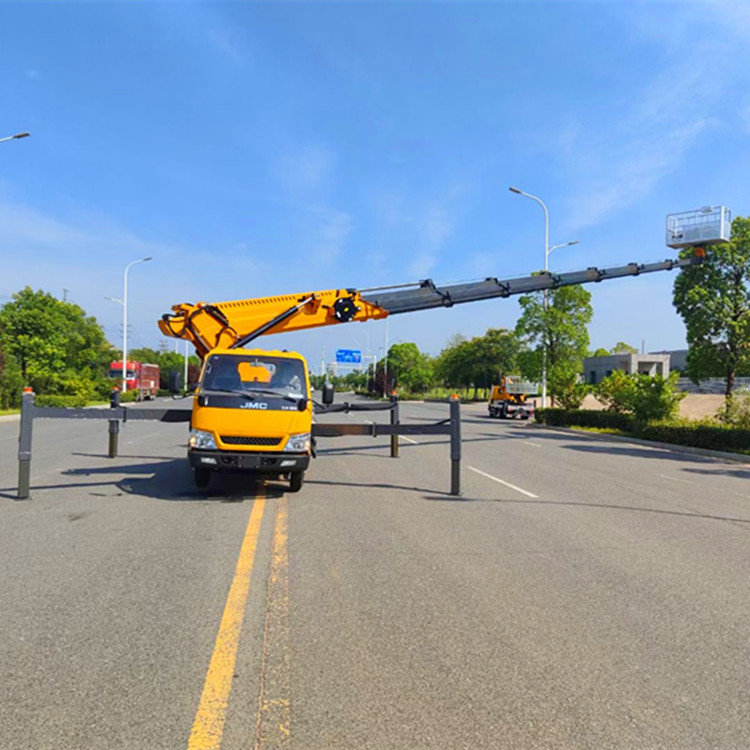

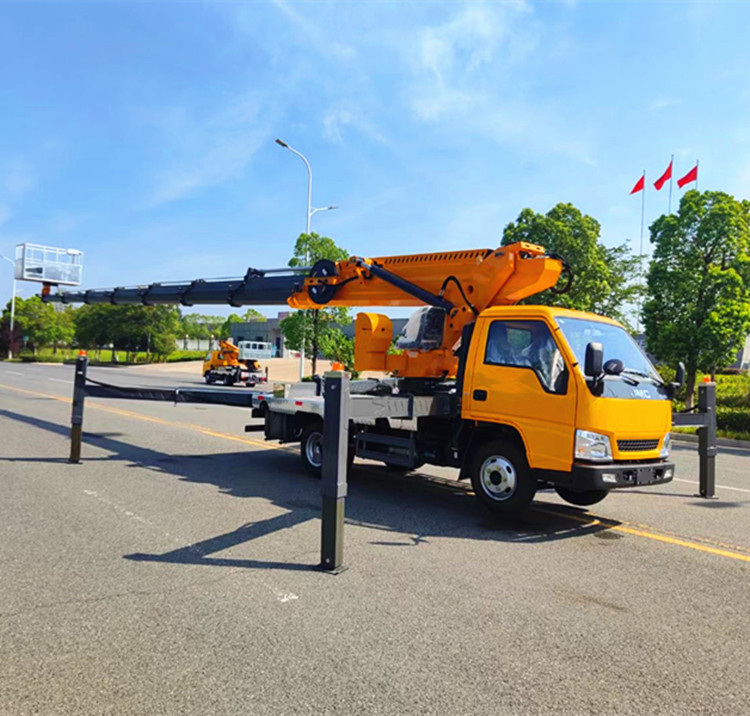

CLW 33 m telescopic boom bucket truck

Name: CLW 33 m telescopic boom bucket truck
Brand: Cheng Li Automobile Group
Price: 43500 USD
Rating: 4.9 (28 reviews)

Unit Price:

USD 43500 - 44500 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 5995*2050*3200mm

Gross Mass: 4495kg

Curb Weight: 4365kg

Seating: 2

Wheelbase: 2800mm

Number Of Tires: 6

Tyre Size: 7.00R16LT

Horse-power: 115HP

Displacement: 2892ml

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Product Description

CLW 33 m telescopic boom Bucket Truck Parameter Settings

Main technical parameters of 28m high altitude work vehicle
Category	Project		Unit	Data
Size parameters	Total length		mm	5990
	Total width		mm	2010
	Total height		mm	3060
Quality parameters Main parameters	Number of passengers (including drivers)		People	2
	Total mass		kg	4495
	Working platform rated load		kg	200
	Maximum operating height		m	28
	Maximum operating height operating range		m	2.9
	Maximum operating range		m	26
	Maximum operating range when operating height		m	4.5
	Outrigger span	Horizontal	mm	3660
		Vertical	mm	4300
	Boom luffing time		s	60
	Boom rotation speed		s/r	75
	Outrigger retraction time		s	40
Driving parameters	Front suspension		mm	1110
	Rear suspension		mm	1525
	Stretch back		mm	/
	Wheelbase		mm	3360
	Maximum speed		Km/h	100
	Minimum ground clearance		mm	380
	Approach angle		.	18
	Leave the corner		.	14

Cheng Li 33 meters telescopic arm aerial work vehicle has the following characteristics:

1. Structural design of Bucket Truck

• Boom structure: The use of seven-section 18-sided operation arm, the number of edges,

high strength, more stable operation; The telescopic cylinder is external and equipped with a protective cover,

which is easy to observe the fault point and maintenance.

• Rotary support: the rotary support is 21 inches, the bottom is trapezoidal base, and the bottom plate contact area is wide,

the connection is more firm, there are reinforcing bars on both sides, and the pin sleeve is long,

so that the basket will not shake when working for a long time.

• Leg design: The front leg is connected to the base and has reinforcement, and the rear leg is a sunken design,

which has a lower center of gravity and greater stability.

2. Working performance of aerial bucket truck

• Working height and amplitude: the maximum working height is 33 meters, the maximum working amplitude is 15 meters.

• Carrying capacity: The hanging basket is made of high-strength stainless steel and can carry a certain weight,

such as this car hanging basket of Cheng Li Huaxin can carry 200 kg and can accommodate three people working at the same time.

• Operational flexibility: Equipped with advanced hydraulic system, it can realize the telescopic, rotating,

amplitude changing and other actions of the working arm, and the operation is accurate;

Some models can be equipped with electrified liquid proportional speed control valve electronic control,

to achieve stepless speed control, smooth operation, but also manual or electronic control ground wireless remote control operation.

3. Safety protection of Telescopic Bucket Truck

• Limiting device: hydraulic and electrical control are equipped with a variety of limiting devices,

such as leg support state detection device, when any leg loose will cut off all the power supply;

The working bucket is automatically levelled, and the external pull rod is forced to balance.

• Emergency system: equipped with emergency electric pump,

when the main pump failure can provide emergency power source,

to achieve emergency withdrawal; The whole vehicle has a horizontal state instrument,

platform engine ignition and flameout device, etc.

4. Application range of Bucket Trucks

It is suitable for line maintenance, equipment installation and inspection in the power and telecommunications industry,

installation, maintenance and cleaning of high-altitude equipment such as municipal and garden street lights,

high-altitude operations such as exterior wall decoration of construction projects,

fire rescue of high-rise buildings and personnel rescue, and high-altitude scene shooting in film and television shooting.

5.Aerial work vehicle chassis and power

• Diverse chassis: Dongfeng Dolica, Sinotruk Howo and other chassis are available to adapt to different road conditions

and operation needs. Such as Dongfeng Dolica chassis, wheelbase 2950 mm; Sinotruk Howo chassis,

equipped with Weichai 140 HP Country VI engine.

• Power configuration: Good power performance, to ensure that the vehicle in full load operation of the power needs,

the engine in line with national six emission standards, environmental protection and energy saving.
