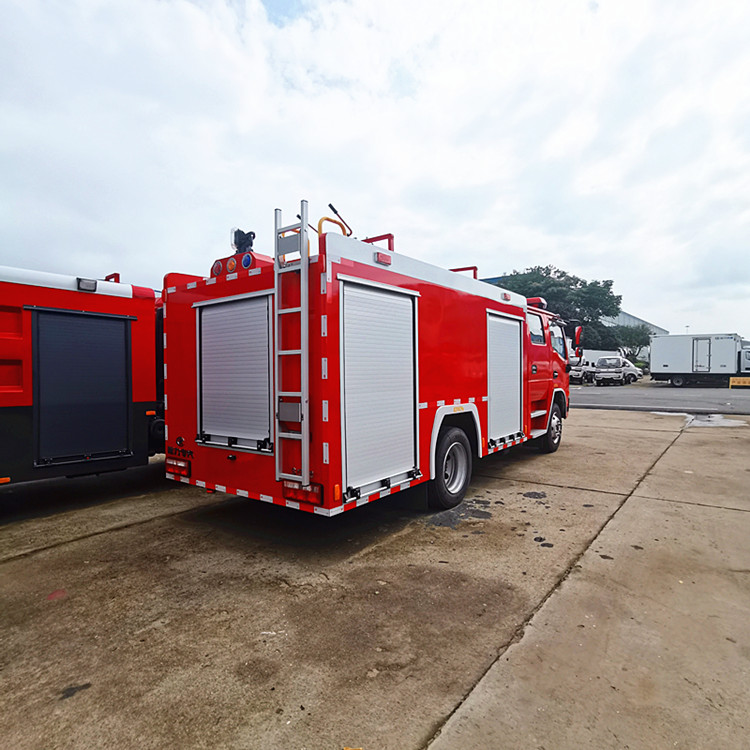

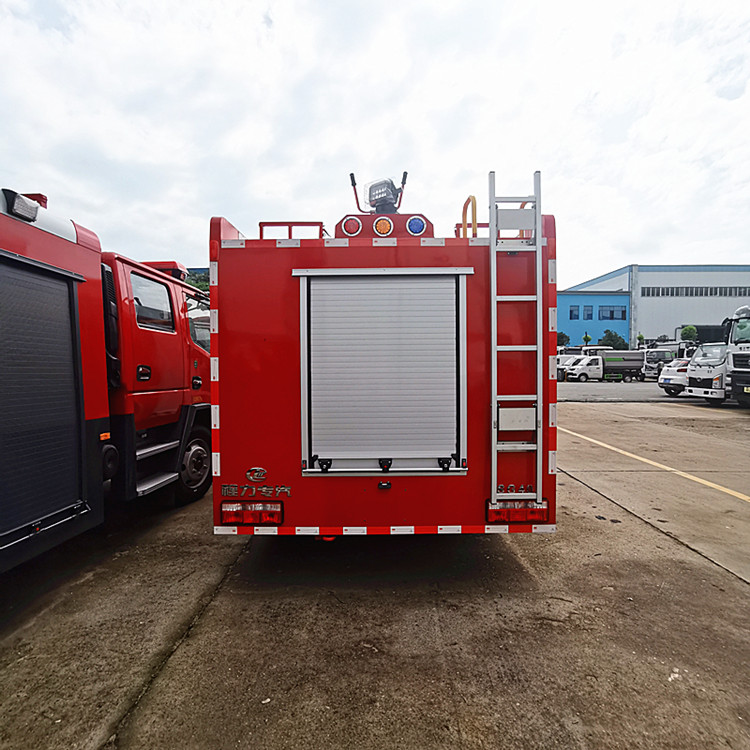

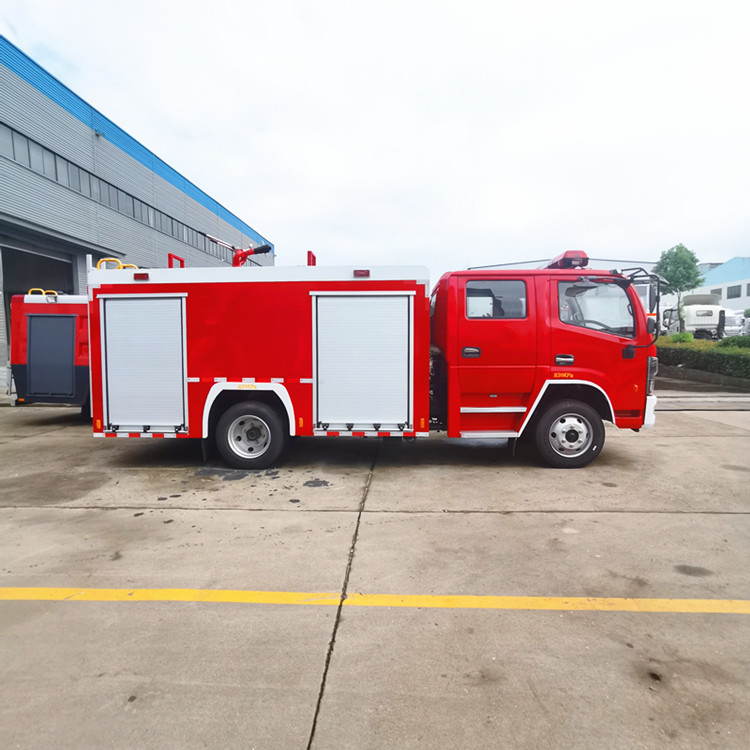

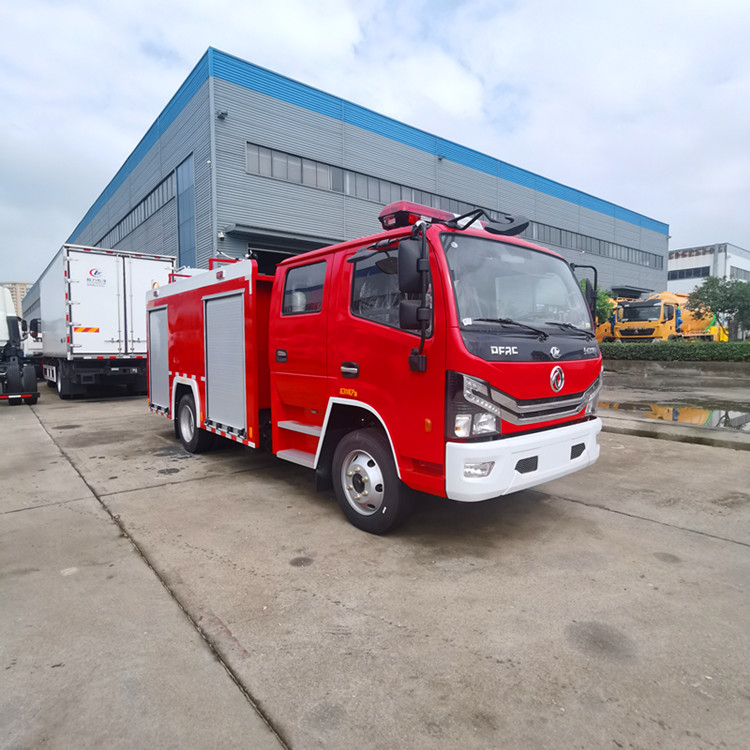

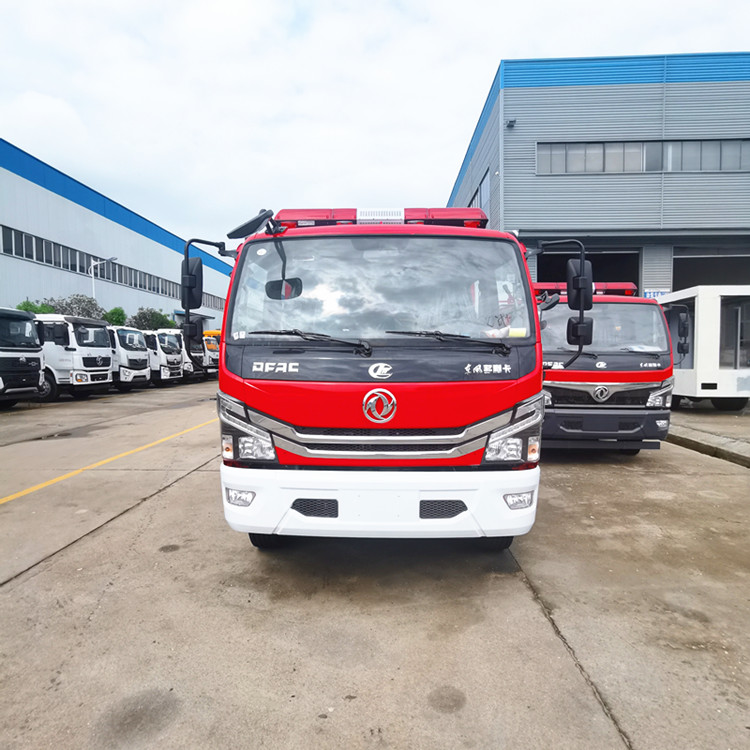

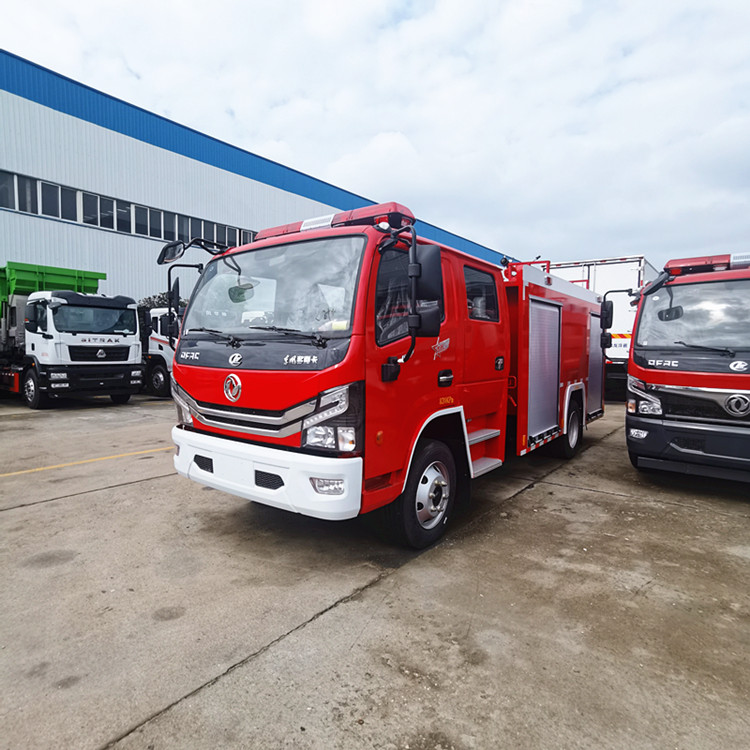

DONGFENG Dorica water tank fire truck

 tank volume

Vehicle size

6020*2110*3070mm

 Type of fuel

   Diesel fuel

Tire specifications

Emission standards

     Euro six（optional）

    Gearbox

     6th gear（Optional automatic）

  The engine

quanchai 177 horsepower

   Present condition

   Customisation

  Tank material structure

Material: Water tank: high quality steel plate, high-tech anti-corrosion treatmentStructure: The frame is welded, and the tank body is provided with longitudinal and transverse anti-swing plates to reduce the impact of the water in the tank on the tank body during the driving of the vehicle; The front and rear wall panels of the tank are folded with trapezoidal rib, which makes the tank have sufficient strength and stiffness. The top of the tank is provided with a quick opening manhole to facilitate maintenance personnel to enter and exit. The tank is provided with a device and a filter screen to prevent the water pump from absorbing water and forming a vortex, thereby affecting the flow rate. The tank is provided with a stainless steel float type liquid level indicator, which can display the capacity of fire extinguishing agent in the tank through the liquid level gauge on the instrument panel; A sewage outlet with ball valve is provided at the bottom of the tank. The tank body is provided with a 76mm overflow pipe, and each side of the carriage has a 76mm injection port, which is convenient for other vehicles to supply water and add liquid. Equipment 1 population hole with quick locking and opening device.
