Home > Products > Tank Truck > Water Tank Truck > DONGFENG 20 tons sprinkler truck





View the big picture

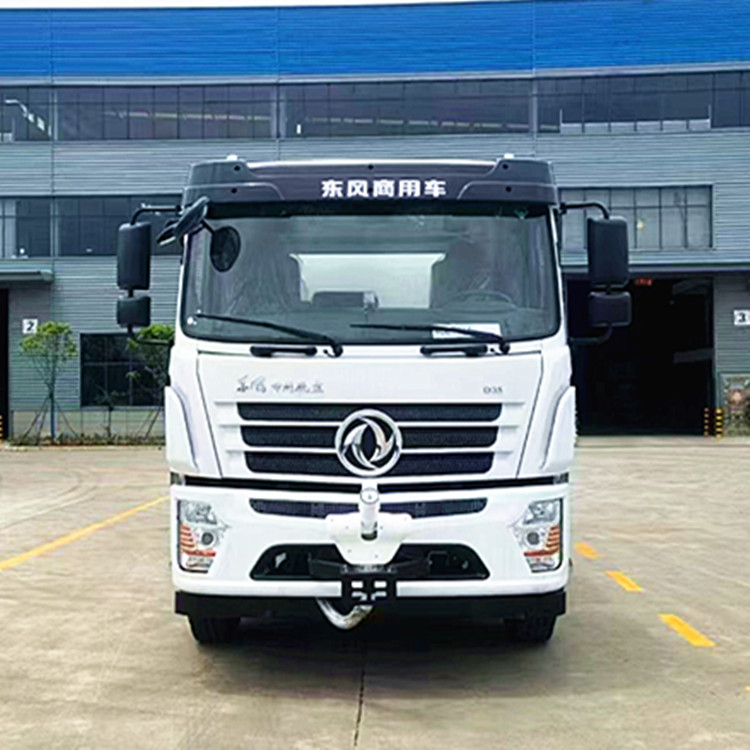

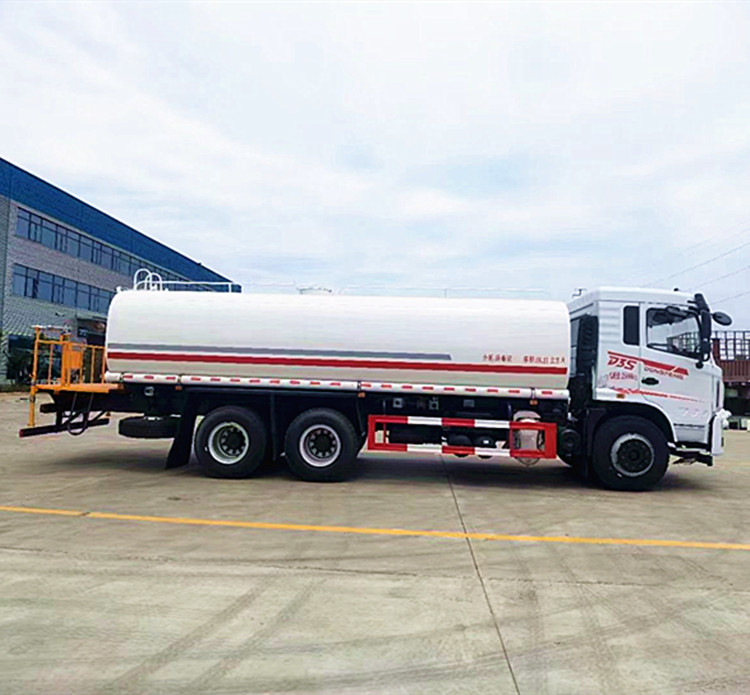

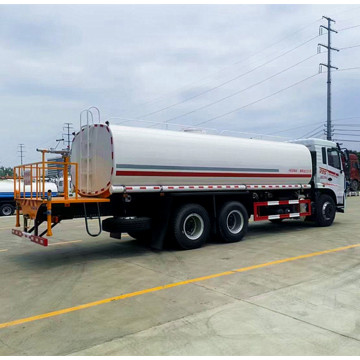

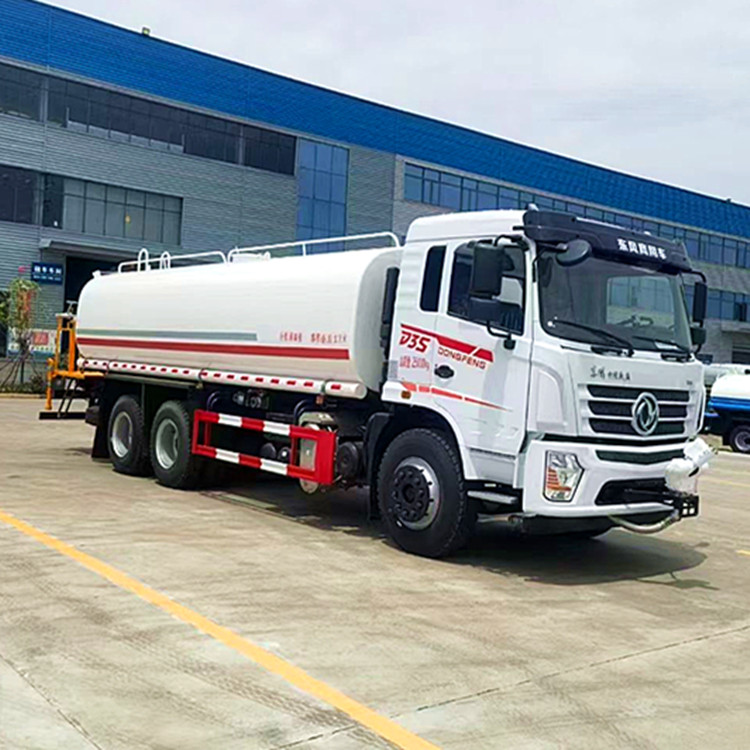

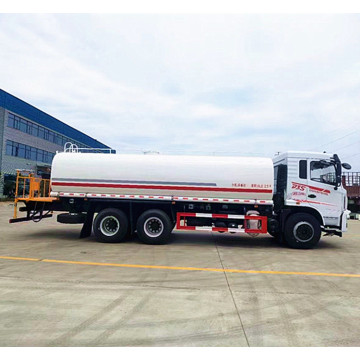

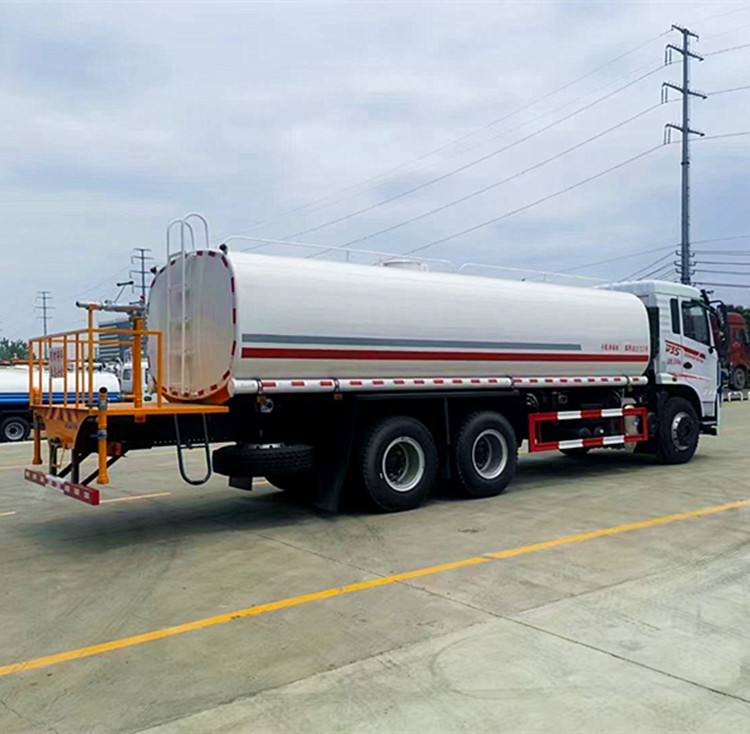

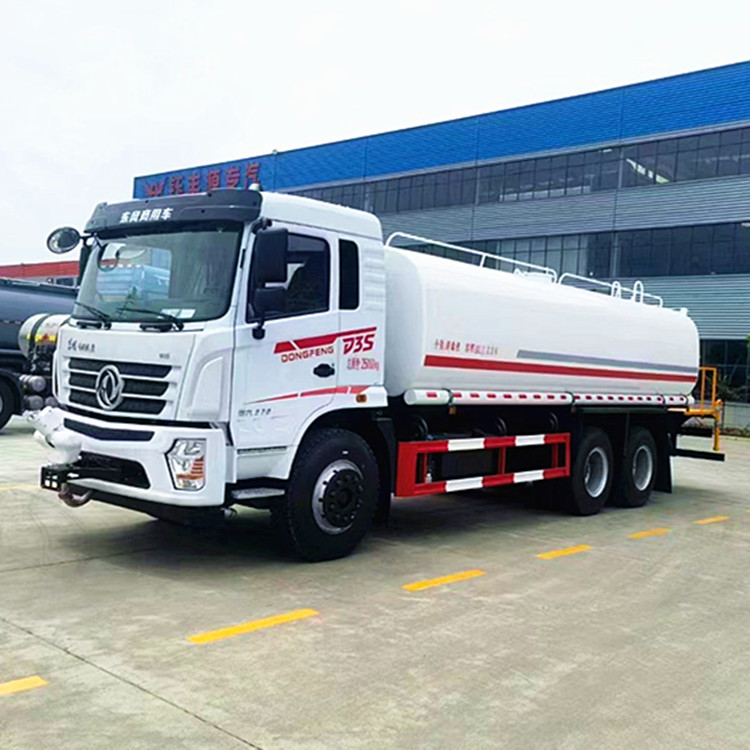

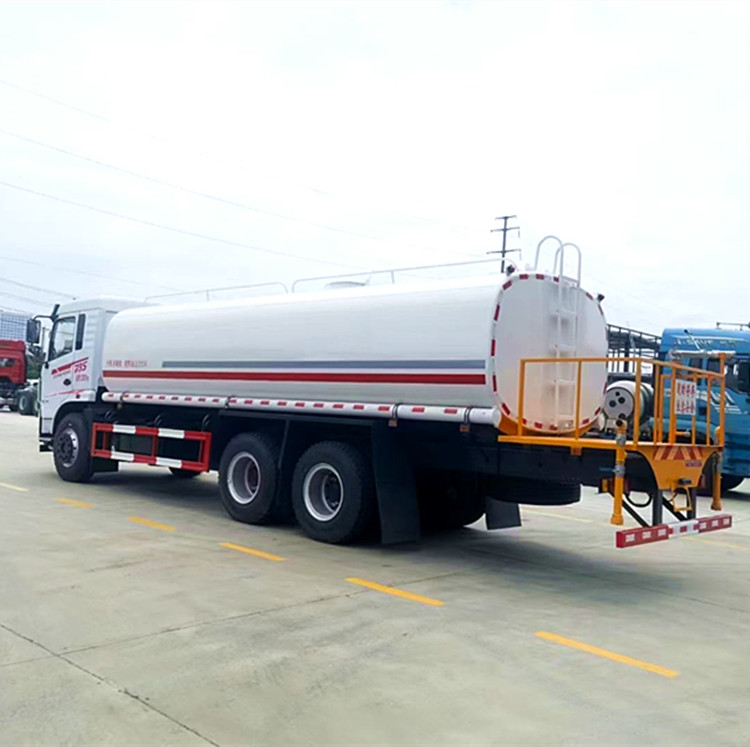

DONGFENG 20 tons sprinkler truck

Name: DONGFENG 20 tons sprinkler truck
Brand: Cheng Li Automobile Group
Price: 32500 USD
Rating: 4.6 (31 reviews)

Unit Price:

USD 32500 - 33500 / Piece/Pieces

Payment Type:

L/C,T/T,Paypal

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 10580*2500*3450mm

Gross Mass: 25000kg

Curb Weight: 10765kg

Seating: 3

Wheelbase: 4750+1350mm

Number Of Tires: 10

Tyre Size: 11.00R20 18PR

Horse-power: 270HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T,Paypal

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG 20 tons Sprinkler Truck introductio

Project	Parameter	Notes
The model number of the vehicle	CLW5252GSSHDL
Wheelbase（mm）	4350+1350mm
Engine type	yuchai 260, horsepower	Euro 3
Engine power（kW）	191
（/Shape size (length × width × height)mm）	10580x2500x3450
Quality of equipment（kg）	10765
Total mass（kg）	25000
Working speed（km/h）	Engine speed 1500 r/min	In-place space operation
Effective volume of tank（m3）	20
Material of tank body	High quality carbon steel in WISCO（5mm）
Forward sprinkler width	Forward thrust can reach 15-20 meters
Rear platform sprinkler anti-aircraft gun	The head can reach 30-35 meters, anti-aircraft gun 360 degrees rotation
Special Sprinkler pump	High-power pump, vertical suction 6 meters
General function configuration	Forward, after the sprinkler, side spray, S-type anti-aircraft gun sprinkler, fire interface

Dongfeng 20 cbm sprinklers truck has a variety of models, the following are some common models:

1.Dongfeng Tianlong 20 tons Water Tank Truck

• Chassis configuration: Dongfeng Tianlong 6*4 drive chassis, row of semi-sleeping luxury cab,

equipped with Cummins 245 HP national six electric injection, supercharged engine, Shaan-gear small eight speed transmission,

4350+1300mm double axle wheelbase, 10 tons rear axle, 11.00R20 original factory radial tires.

• water tanker top configuration: The tank body is made of 5mm thick tank truck special plate supplied by WISCO Group,

the machine pressure plate is formed at one time, equipped with domestic high-power sprinkler special pump,

which can be self-suction and self-discharge, water injection time <15min, flow rate 40m³/h, and head 35 meters.

The vehicle is standard equipped with front flushing, rear spraying, side spraying, rear working platform,

360 degree adjustable green water cannon, the vertical suction range of the pump ≧7 meters,

the front flushing water spraying width ≧14 meters, the green water cannon range ≧35 meters.

2.Dongfeng 6x4 20 cbm water truck

• Chassis configuration: Dongfeng rear eight-wheel chassis, equipped with Cummins 210hp National three EGR engine,

8 gear transmission, 5T front axle, 10T rear twin axle, 280MM double girder, 10.00-20 nylon tire,

flat head with sleeping luxury cab.

• water truck tanks top configuration: The tank body is made of 4MM thick WisCO special volume board,

the actual volume is 20 cubic meters, with front flushing, back spraying, side spraying, high shower,

back working platform and green anti-aircraft gun and other functions,

with special water pump (pump in and pump out) and fire hydrant interface, two equal length water pipes.

3.Dongfeng special bottom 20 square water tanker truck

• Chassis configuration: Dongfeng original chassis, Cummins 6 230hp engine or Yuchai 6 245hp engine,

4350+1350mm wheelbase, 10-speed transmission, 11.00R20 steel tire, with air conditioning, central control lock,

electric glass, airbag seat, multimedia MP5, multi-function steering wheel, ABS and other configurations.

• truck water tanks top function configuration: the actual volume of the tank is 20 cubic meters,

rolled by WISCO 4mm carbon steel plate, and the tank assembly is automatically welded.

Equipped with high-power sprinkler pump, with self-flow valve and fire interface, vertical suction ≧8 meters,

sprinkler width ≧14 meters, range ≧30 meters.

4.Dongfeng T5 6x4 20 cbm road sprinkler truck

• Chassis configuration: Dongfenghuashen T5 cab, Yuchai 245 HP engine, Fast 8 speed transmission,

wheelbase 4350+1350mm, 11.00R20 steel wire tire, standard air conditioning, ABS, electric glass,

central control door lock, airbag seat, multi-function steering wheel, driving recorder.

• Street Sprinkler top configuration: the tank volume is 19.7 cubic meters, the tank body is a square tank,

the use of Q235 carbon steel steel, the whole vehicle has all the functions of the sprinkler,

such as forward flushing, after spraying, side spraying, platform anti-aircraft gun, etc.,

equipped with the special power extracter of the sprinkler pump, the flow valve and the fire joint each 1, 2 water pipes.
