Home > Products > Special Purpose Vehicle > Bulk Feed Truck > DONGFENG 20CBM bulk feed truck





View the big picture

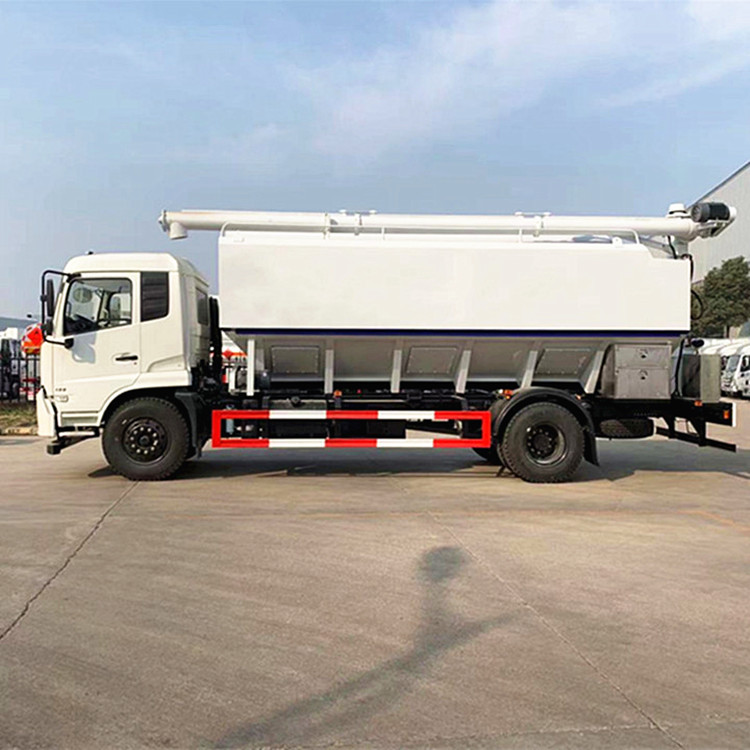

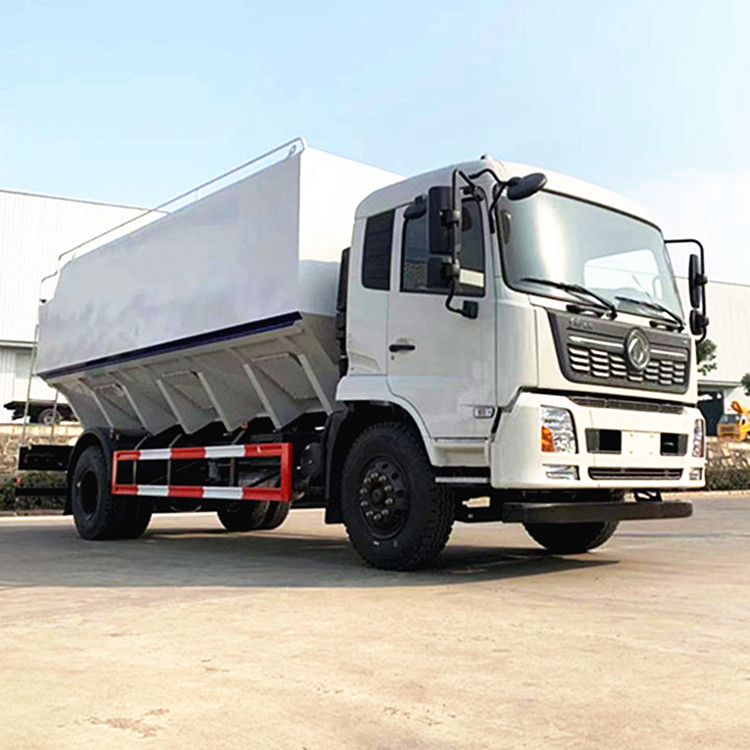

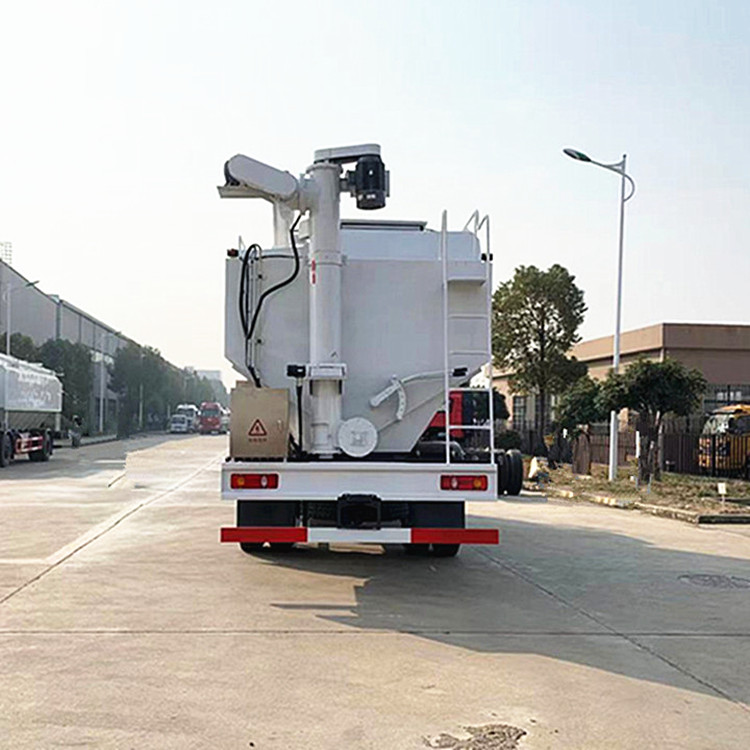

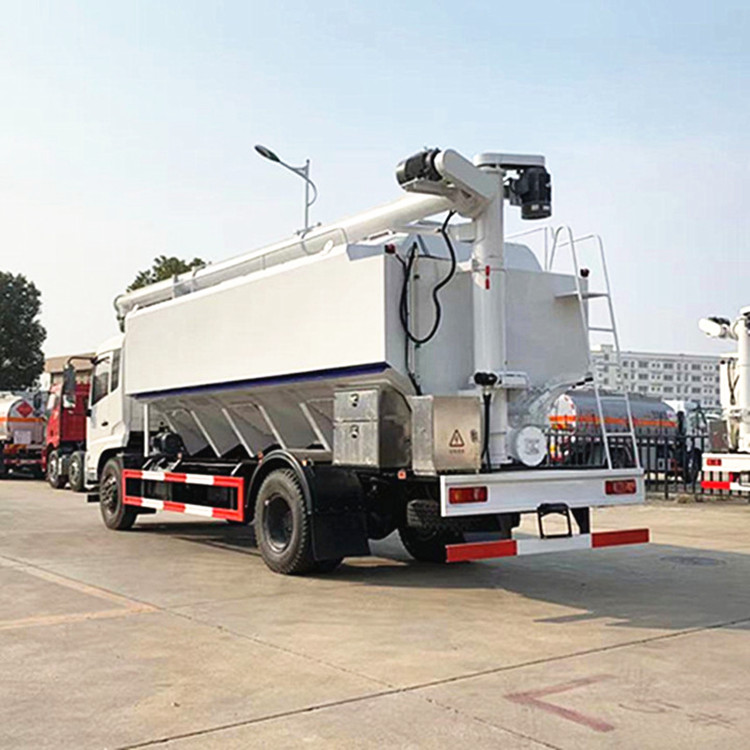

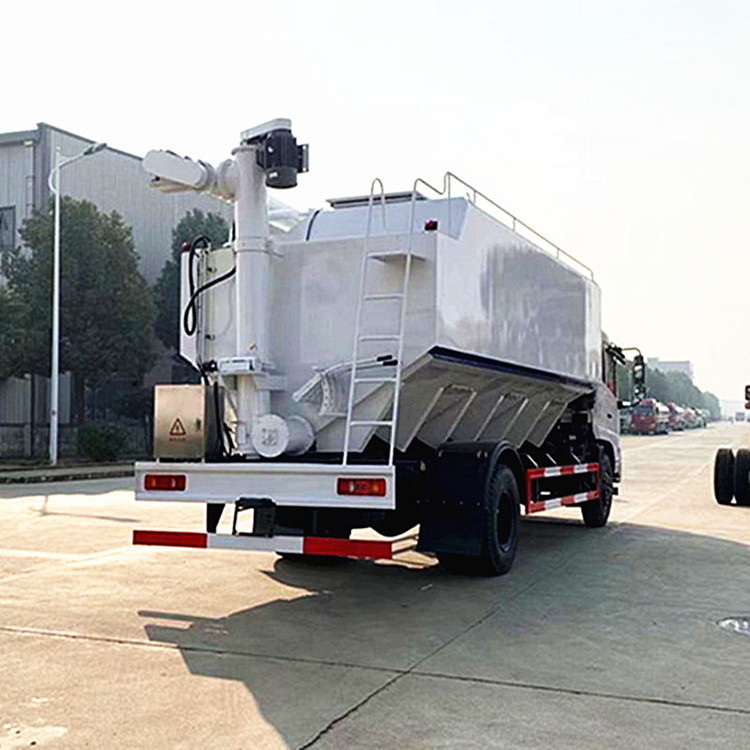

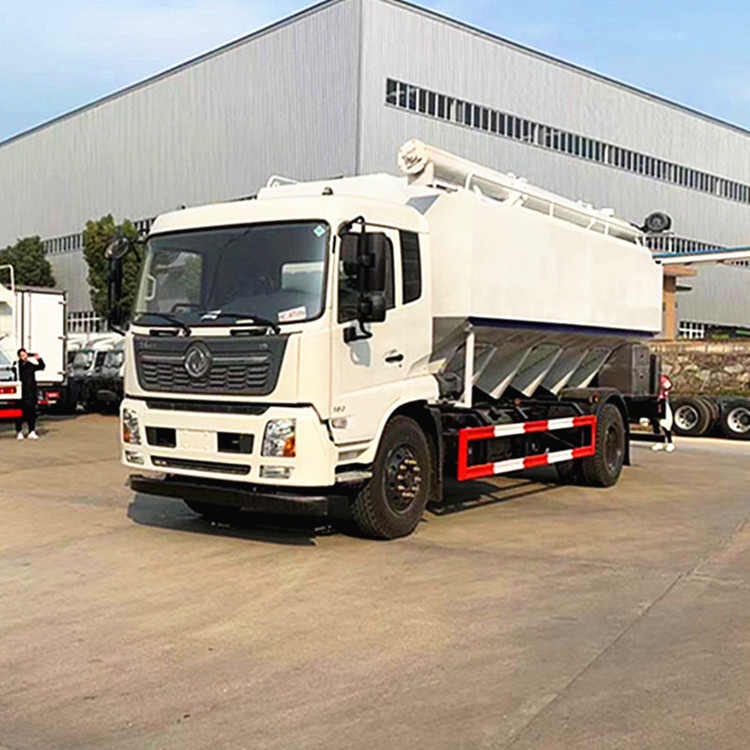

DONGFENG 20CBM bulk feed truck

Name: DONGFENG 20CBM bulk feed truck
Brand: Cheng Li Automobile Group
Price: 320000 USD
Rating: 5.0 (47 reviews)

Unit Price:

USD 320000 - 32800 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 9000*2500*3800mm

Box Volume: 20cbm

Total Mass: 18000kg

Curb Weight: 8900kg

Seating: 3

Wheelbase: 5000mm

Number Of Tires: 6

Tyre Size: 10.00R20

Horse-powe: 210HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

DONGFENG 20CBM Bulk Feed Truck Parameter Settings

Feed truck chassis parameter configuration
Chassis type	df	The engine	Yu Chai 260 horsepower
Gearbox	10-speed gearbox	Wheelbase	5000mm
Number of axes	2 axes	Number of tyres	6
Tire specifications	11.00 r steel wire tire	Emission standards	Optional
Optional installation of bulk feed truck
Electric winch can be selected according to the actual situation of users (three-phase electrical supporting place) , for the non-three-phase electrical place, electric system winch can also choose three-phase generator or choose hydraulic winch. The whole vehicle has 3 winches driven by 35.5 kw motors, the top winch is lifted by hydraulic control, the electric control part of the electric winch can rotate 180 ° from left to right can be made in China or imported parts, optional wireless remote unloading operation. Hydraulic system winch, all hydraulic system parts, hydraulic pump, hydraulic motor, hydraulic multi-way valve, high-pressure explosion-proof pipe are imported parts, hydraulic pump for vane pump, uniform flow, smooth operation, low noise, more efficient and durable than gear pumps. The whole winch is composed of a horizontal winch, a vertical winch and a lifting winch.

Dongfeng Tianjin feed truck is a good performance of bulk feed transport truck, the following is its detailed introduction:

1. Chassis configuration • Power system: Usually equipped with Cummins engine, such as the 260-horsepower Cummins 6-cylinder engine,

powerful, can adapt to various road conditions.

• Transmission system: equipped with 8-speed or 10-speed transmission, such as Fastster 8-speed transmission, smooth shift,

high transmission efficiency.

• Chassis structure: 5 tons front axle, 10 tons rear axle, 9.00r20 steel wire tire, 250 double straight girder, strong bearing capacity, good body stability.

• Cab configuration: with sleeping cab, central control door lock, electric doors and Windows, abs, LCD display, original factory air conditioning

and other equipment are available to provide a comfortable operating environment for the driver.

2. Feed truck tank configuration

• Tank material: The tank is made of 4mm high-quality carbon steel plate with high strength and good sealing.

• Winch system: The vehicle has 3 winch, driven by 3 5.5kw motors, and the top winch is hydraulically controlled to lift,

which can rotate 180° left and right, and can transport the feed to a higher position and a far place.

• Bin design: The tank can be divided into multiple independent bins according to user requirements,

which can independently control the unloading sequence and speed of each bin, and can transport a variety

of different kinds of feed at the same time.

3. Working principle of bulk feed truck The power extractor drives the high pressure oil pump by the output power

of the automobile transmission, and then drives the hydraulic system to drive the blade shaft and blade rotation of the

horizontal screw conveyor. The feed reaches the movable discharge skein on the roof of the car through the movable conveyor system.

When unloading, the movable skein lifts and outputs the feed to the feed door on the top of the storage tank in the livestock and poultry farm.

4.20 cbm feed truck features • Efficient transportation: large tonnage feed can be transported in the effective time,

the unloading speed is fast, and the unloading time of the whole vehicle is about 20 minutes.

Cost savings: Transporting feed in bulk saves labor and costs and reduces feed losses compared to shipping in bags.

• Environmental hygiene: bulk feed is sealed in the tank to avoid contamination and ensure feed quality.

• Flexible operation: standardized parts, easy maintenance, and can be customized according to user needs,

suitable for a variety of farming enterprises.

5. Bulk feed truck application scenarios

It is mainly used to transport bulk feed products or raw grain for feed production from feed mills to livestock farms,

poultry farms and feed processing users, and can also transport non-corrosive powder and granular

raw materials such as powder and grain depot turnover.
