Configure Chang 'an road maintenance vehicle parameters
| vehicle basic argument | Overall dimensions (L X W X H)mm | 5440*1610*2200 |
| wheelbase(mm) | 2990 |
| tyre | 165R14LT |
| Number of tires | 7(including 1 spare) |
| Wheel track | Front wheel(mm) | 1330 |
| rear-wheel(mm) | 1210 |
| Rated occupant | 2 |
| Front/rear overhang(mm) | 725/1345 |
| Approach Angle | 17° |
| Departure Angle | 25° |
| Ground lift(mm) | 320 |
| Gross mass(kg) | 3495 |
| Quality of service(kg) | 2043 |
2990 wheelbase, Dongan 122 HP (1.6 displacement) engine, five speed transmission, 165R14 8PR vacuum tires, manual doors and Windows, original air conditioning, directional assist, original power take-up
Water tank volume 2 square, front high-pressure spray rod, fixed point cleaning device, 15 meters behind the coil, standard cleaning gun, hand cleaning car.
High Pressure Cleaning Truck features:
1. The volume of water tank can reach 1.5m³-2m³

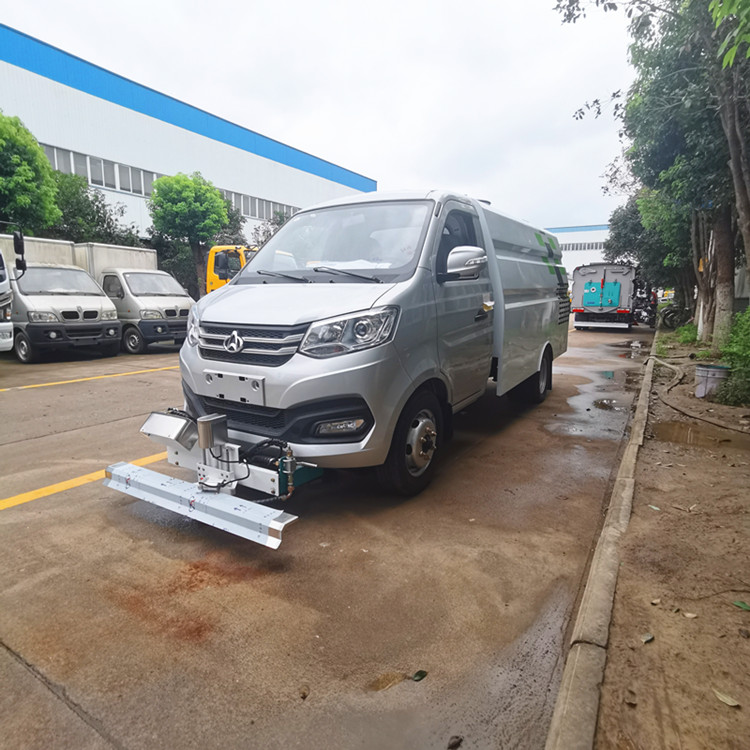

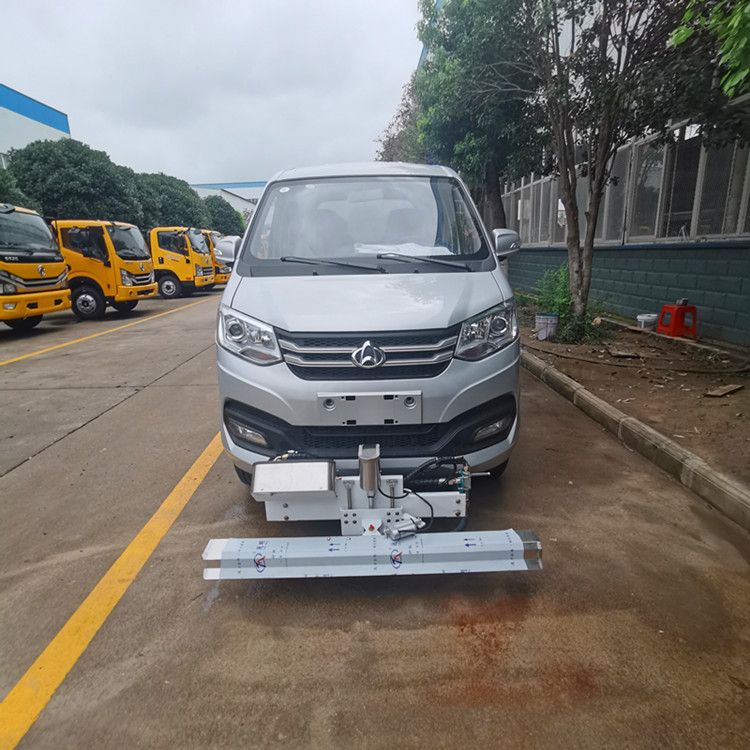

2. The high-pressure jet water curtain formed by the 7 nozzles in the front row, with a deflection Angle of about 30 degrees, 100mm up and down, and a cleaning width of 1350mm, can effectively clean the road surface.
3.About more than 45 degrees, up and down 30 degrees of a single point of dredging, to maximize the removal of stubborn stains.
4. The 15-meter-long high pressure roll is equipped with a multi-angle cleaning gun, which is a good helper to remove small advertisements and clean bus stops.

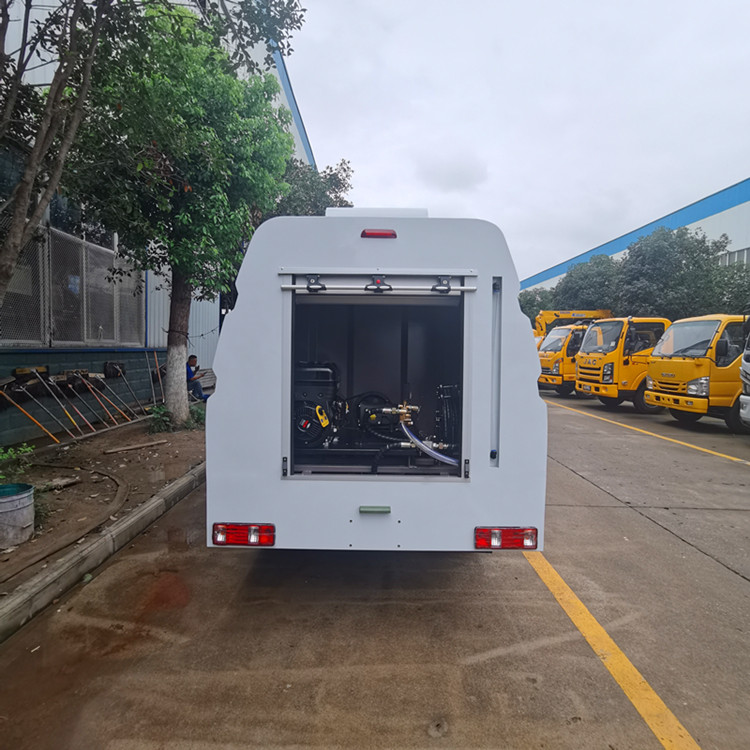

5. American Bailitong electric starting gasoline engine with GTM pressure and high pressure pump (adjustable), with 15 meters double steel wire pipe automatic recovery reel, a high pressure spray gun. The performance of the whole unit is stable and reliable
Chang 'an Road maintenance vehicle is a small municipal sanitation vehicle, often used in urban sidewalks,
non-motorized lanes and other areas of cleaning and maintenance work.
• Multi-functional: With high pressure washing, low pressure sprinkling, fixed point cleaning and other functions,
can also clean the roadside stone, wall, bus station, etc., some models can also be used for garden spraying.
• Flexible and convenient: small body, can work in narrow streets, residential roads and other areas, suitable for urban sidewalks,
non-motorized lanes and other narrow areas.
• Easy operation: The swing of the front cleaning nozzle and the column single point cleaning nozzle can be controlled in the cab,
and the related operation is also convenient after the job is finished.
• Power and practical: Chongqing Yu 'an Huaihai power engine, 112 horsepower, mature technology, economic and practical,
100,000 kilometers without overhaul.
2. Cleaning truck configuration • High pressure pump unit: imported high pressure pump unit, the pressure can reach 150bar, the flow rate can reach 50L/min,
driven by gasoline engine, and the external driving system does not interfere.
• Cleaning device: Front cleaning nozzle and column single point cleaning nozzle are electrically controlled in the cab,
can swing in all directions, and are also equipped with manual spray gun device and hand-pushed nozzle cleaning device.
• Clean water tank: made of national standard 3MM stainless steel sheet, strong shock resistance, corrosion resistance,
with a low water level observer.
