| Vehicle parameter configuration |
| Chassis section |
| brand | clw | Vehicle size | 9980*2550*3980mm |
| Driving type | 4X2 | Displacement (L) | 4.461L |
| engine | ID45TCIF1 | Rated power (kw) | 162KW |
| Emission standard | Euro 6 | Gross mass | 16000kg |
| seat | 3 | wheelbase | 5000mm |
| Tyre size | 9.00R20 16PR | Displacement/power (ml/kw) | 4461ml/162kw |
Chengli
Stage Truck is a professional stage car produced by Jianghuai Geerfa chassis,
the following is a detailed introduction about it:
1. Appearance and structure of stage truck

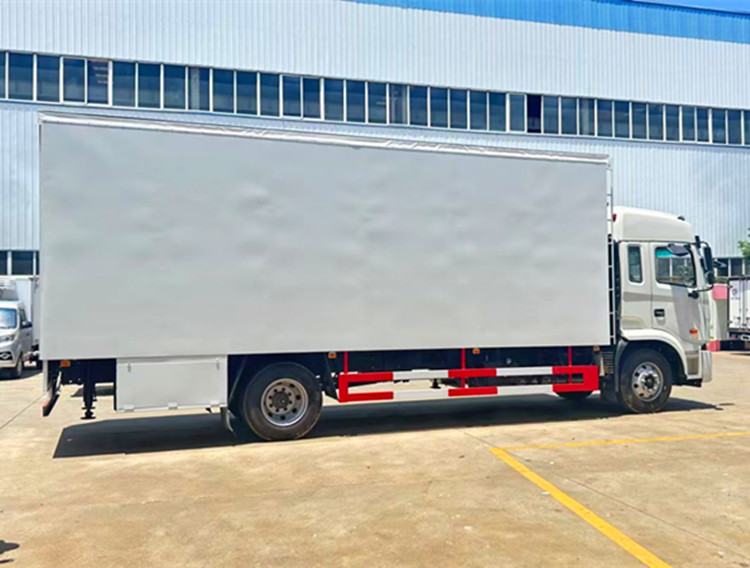

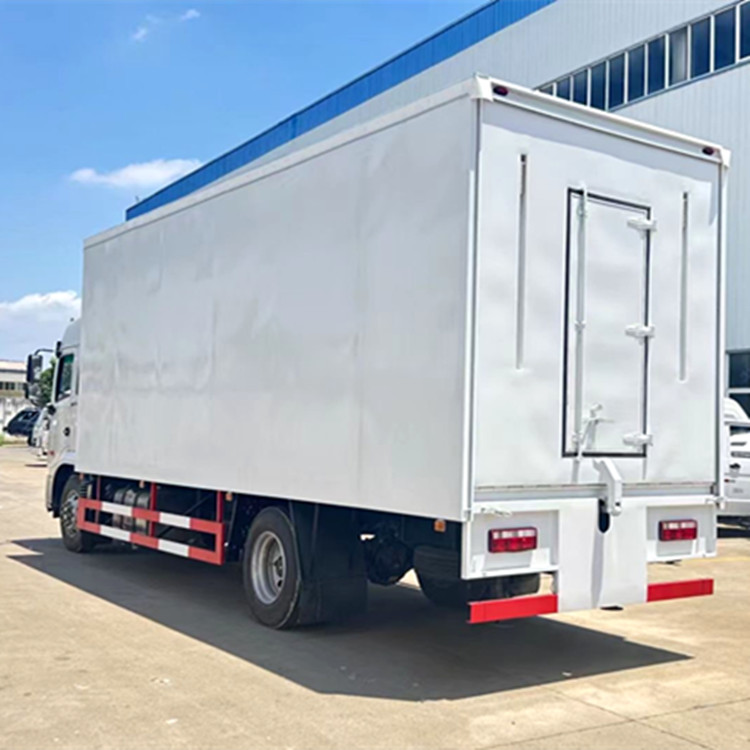

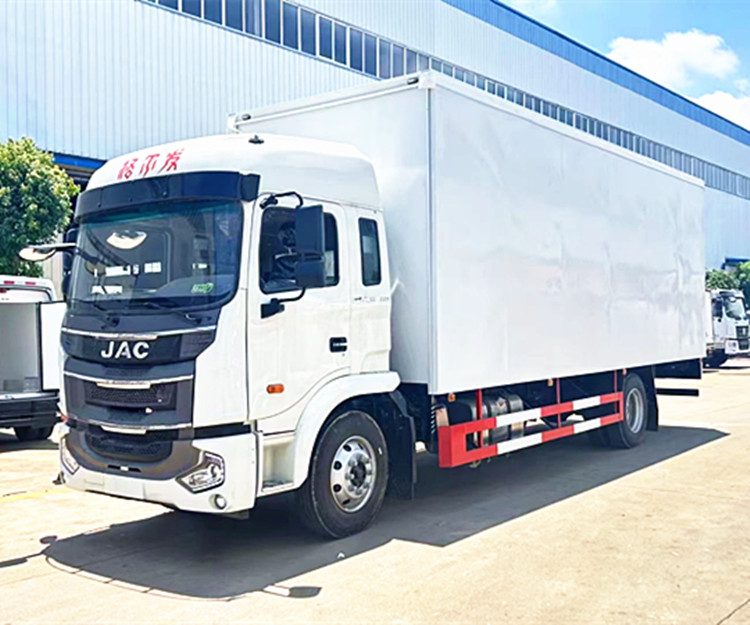

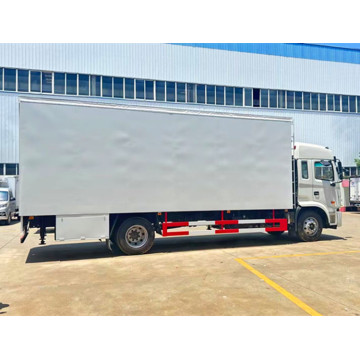

• Appearance design: white as the main tone, with black elements, the body line is smooth and simple,

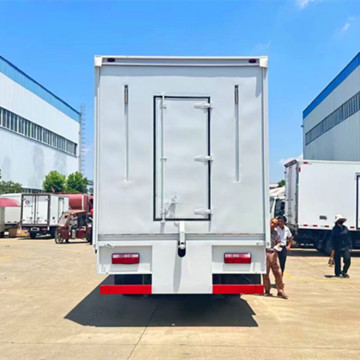

the front shape is unique, the rear is square, some models have retractable fender panels on both sides.
• Body size: Common body size is 9980x2495x3950mm, box size is 7600x2495x3950mm.

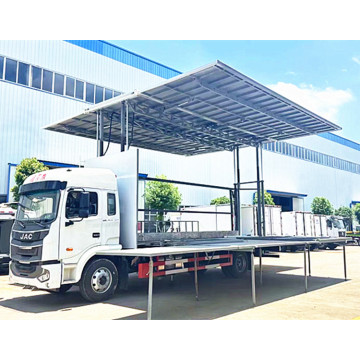

• The overall structure of the mobile stage truck: the chassis and the upper part are composed of two parts,
the upper part is composed of the top plate, the side plate and the bottom plate,
and the intelligent control of four hydraulic cylinders can be completed in 10-15 minutes.
2.LED stage truck performance configuration
• Powertrain: Usually equipped with Yuchai 140hp engine, matching 6-speed transmission,
9.20R20 steel tires to provide solid driving performance.

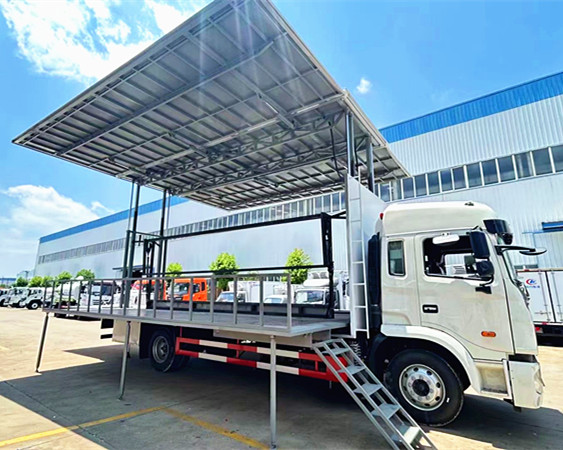

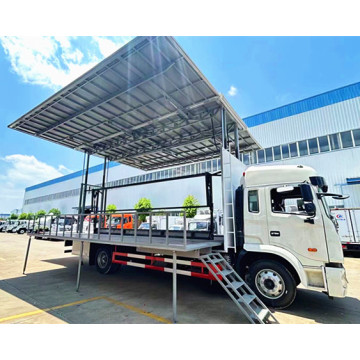

• Stage area: There are different options such as single-sided expansion of 40 square meters
and double-sided wide stage of 60 square meters, and also support the addition of artificial stage to meet
the larger display space needs such as large parties.
• Internal facilities: the interior of the car is made of aluminum alloy and stamping parts, aluminum alloy plate outer plate
and waterproof plywood inner wall, the stage board is made of special stage anti-skateboard, and the lighting, sound,
captions and other facilities are reserved, and the generator set and LED display are optional.
3. Classification and use of stage trucks
• Classification: From the perspective of development, there are single show stage cars,
double show stage cars and three show stage cars; From the use of points, including advertising vehicles,
performance vehicles, LED large exhibition vehicles and so on.
• Use: Widely used in various performance activities, such as cultural visits to the countryside, art shows,
commercial performances, advertising, etc., can also be used for court circuit trial, traffic law enforcement and other special purposes.
