Home > Products > Special Purpose Vehicle > Asphalt Distribution Truck > SHACMAN asphalt distributor truck





View the big picture

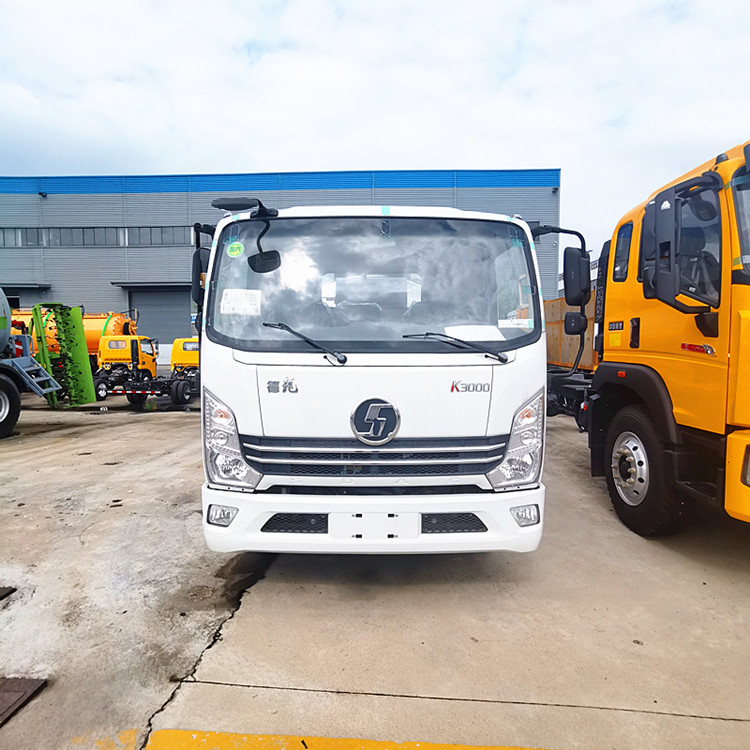

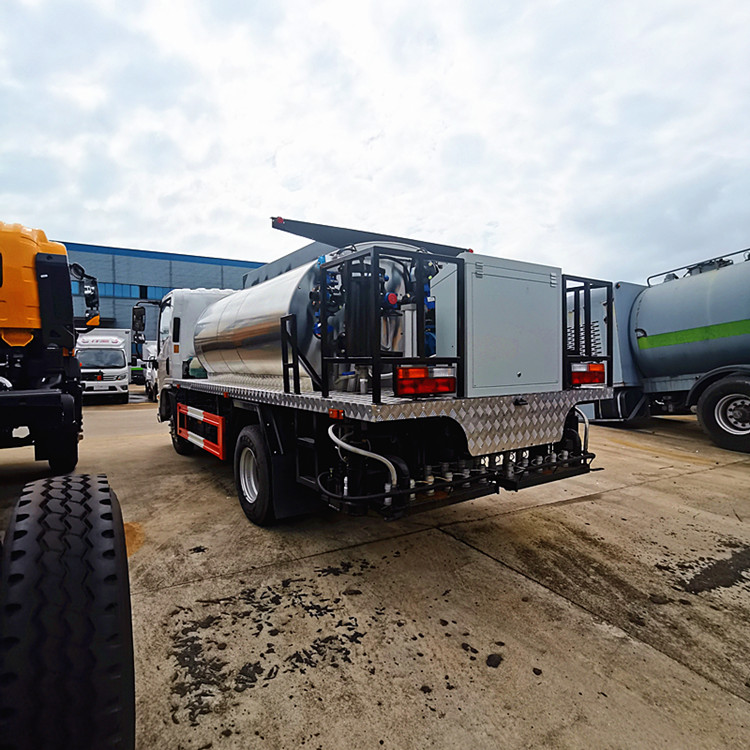

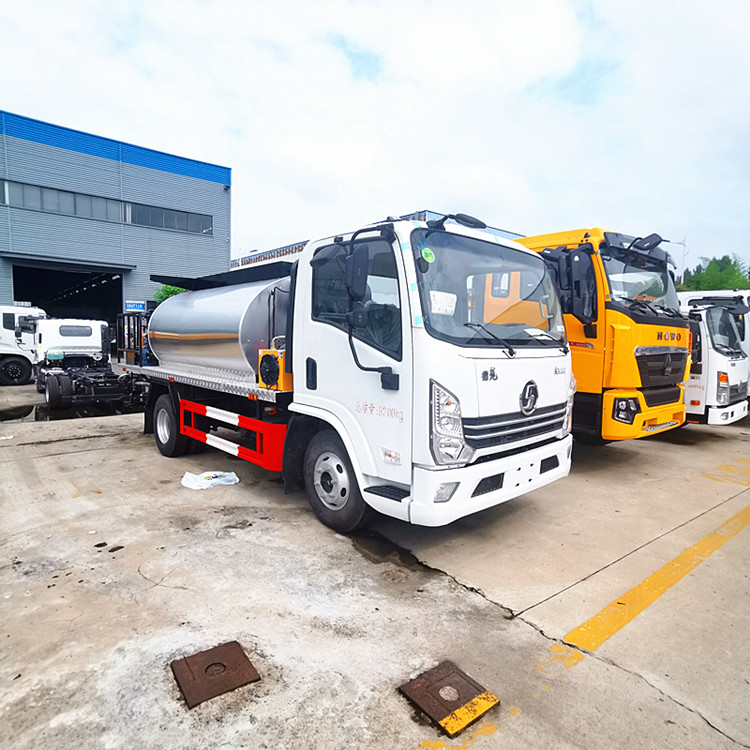

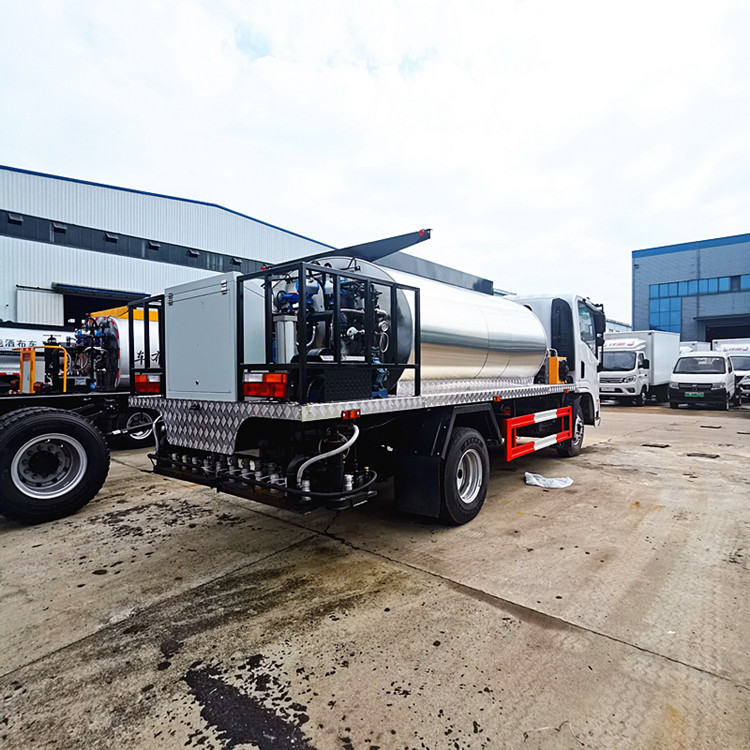

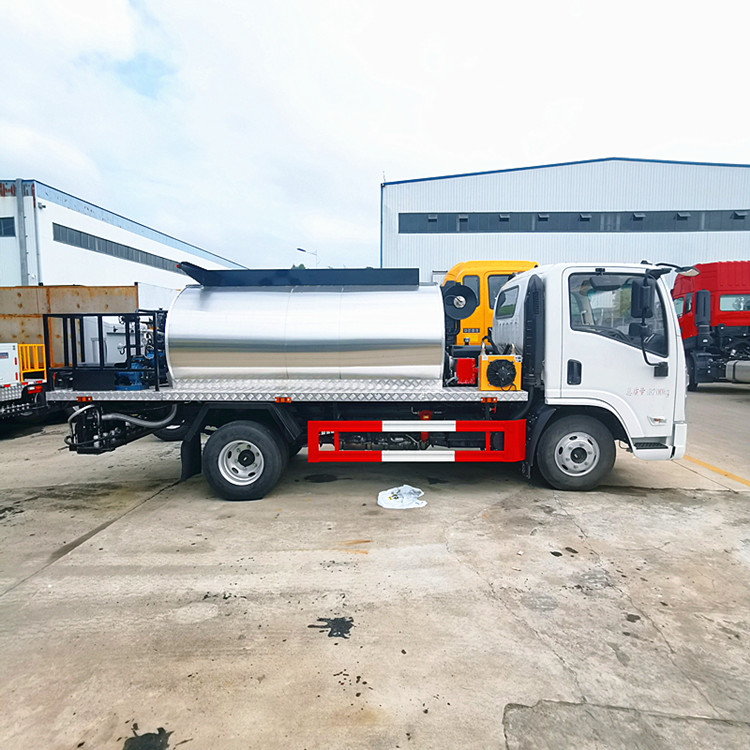

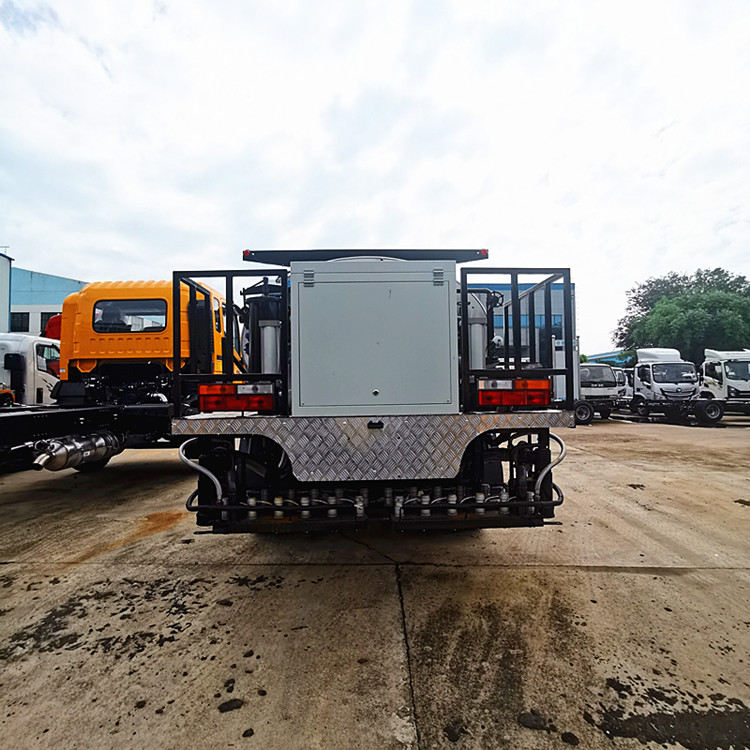

SHACMAN asphalt distributor truck

Name: SHACMAN asphalt distributor truck
Brand: Cheng Li Automobile Group
Price: 50000 USD
Rating: 4.5 (6 reviews)

Unit Price:

USD 50000 - 54500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 7820*2380*3200mm

Tank Volume: 8cbm

Total Mass: 16000kg

Curb Weight: 8300kg

Seating: 3

Wheelbase: 4500mm

Number Of Tires: 6

Tyre Size: 9.00R20

Horse-powe: 170HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

SHACMAN Asphalt Distributor truck Parameter Settings

Serial number	name	Model and specification	Owning system	remark
1	automotive chassis	sx	chassis	shacman x3000
2	engine	weichai		weichai 170
3	wheelbase	4500mm
4	Asphalt tank capacity	6cbm		Inner tank volume
4	Stone bin	8cbm		V-hopper (gravity flow)
5	Thickness of insulation layer	50mm		Rock wool insulation
6	Outer stainless steel	1.2m		1.2 thick stainless steel plates
7	Power stripper	For sealing cars	Source of working power
8	Double gear pump	05-130-BD31	Hydraulic system	Made in Tianjin
9	Proportional valve	EFRD-G03-160-5-31		Made in Taiwan
10	Asphalt pump motor	05-130-BD31		Made in Tianjin

The parameters of SHACMAN asphalt sprinkling truck are as follows:

1. Chassis parameters • Chassis model: SX1189LA1F1C, etc. • Wheelbase: Generally 4500mm and other options.

• Number of axes: Usually 2 axes. • Tire specifications: can be equipped with 9.00 steel wire tires.

• Suspension form: mostly leaf spring suspension, some models use less leaf spring suspension.

2. Parameters of asphalt distributor tank body

• Tank volume: generally about 10 square. • Spreading width: Freely adjustable, usually between 2.5-6 meters.

• Spreading accuracy: the amount of spreading can be accurately controlled, and the error is within a small range.

• Heating method: Automatic diesel burner is used for heating to ensure asphalt temperature.

3.10cbm Asphalt Distribution Vehicle vehicle parameters

• Dimensions: length 7.93 meters, width 2.55 meters, height 3.55 meters. • Quality: about 7.12 tons. • Rated load mass: generally 8.75 tons.

• Total mass: about 16 tons. • Maximum speed: 89km/h.

4.shacman Asphalt Distribution Truck Features:

• Intelligent control: computer control, sprinkling requirements can be completed in the cab operation, reduce labor intensity and labor costs.

• Precise spreading: the spreading width can be adjusted freely, and the nozzle can be controlled and combined separately

to achieve three overlapping spraying. The spreading accuracy is high and is not affected by the speed.

• Efficient heating: equipped with automatic diesel burner, advanced heating method, average cooling slow,

to ensure the asphalt temperature during construction.

• Wide application: can sprinkle a variety of asphalt, used in highway construction and highway maintenance projects in the permeable layer,

waterproof layer, bond layer sprinkling.

• Stable and reliable: After many engineering verification and accuracy testing, the performance is stable, the control system is modular design,

and there are backup systems.

• Flexible operation: equipped with a hand-held spray gun, easy to spray corners and special parts of the local, the selection of low-speed,

large displacement asphalt pump, can spray high-viscosity rubber powder modified asphalt.
