Home > Products > Garbage Truck > Compactor Garbage Truck > Cheng Li 15cbm compactor garbage truck





View the big picture

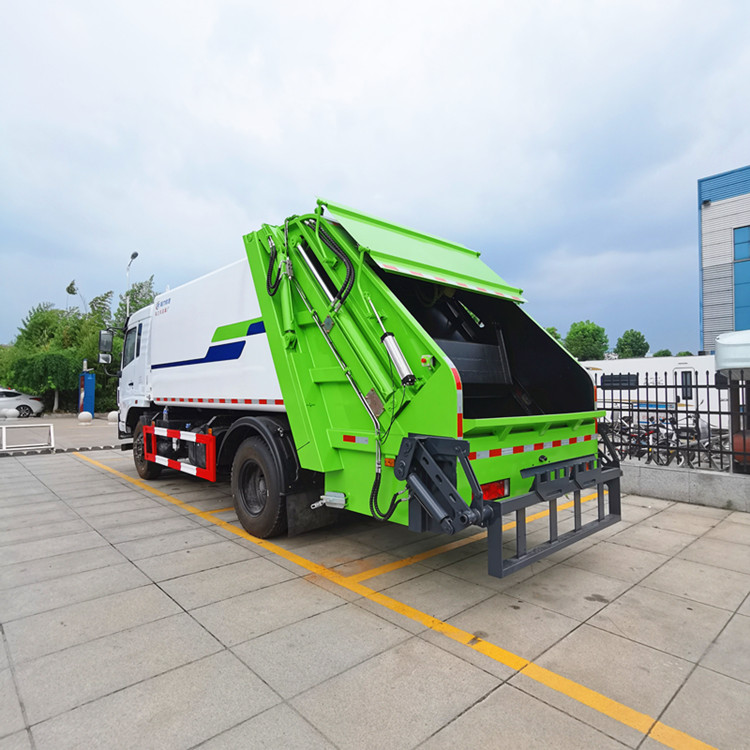

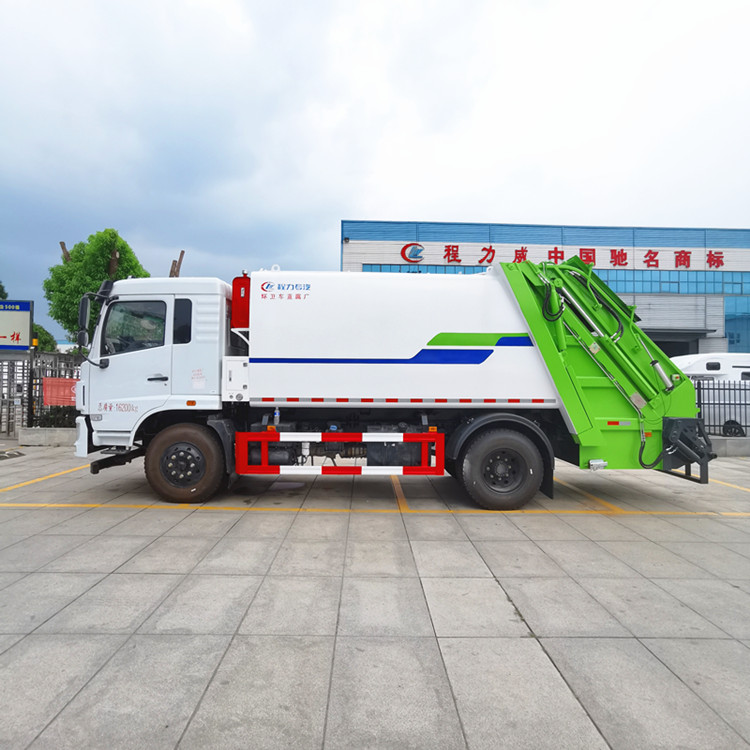

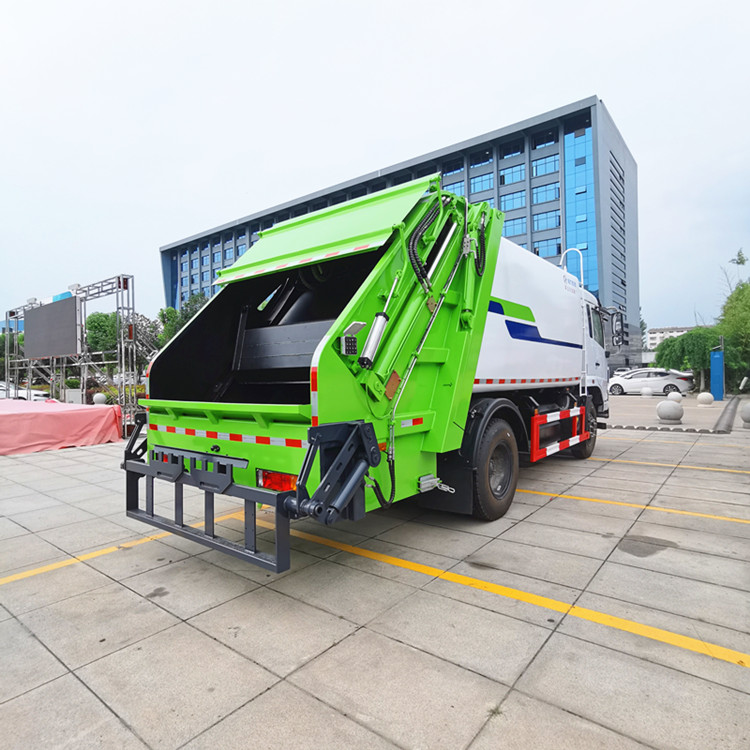

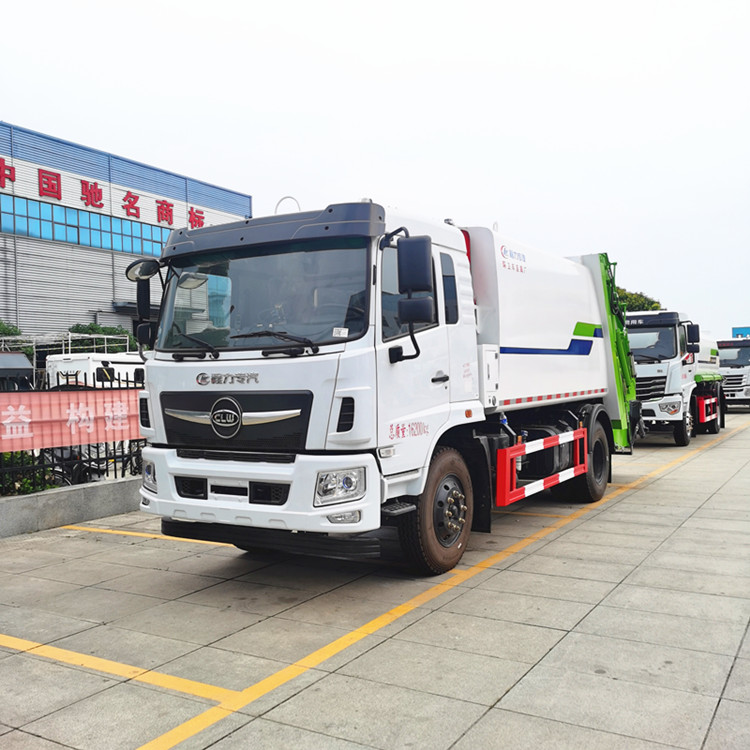

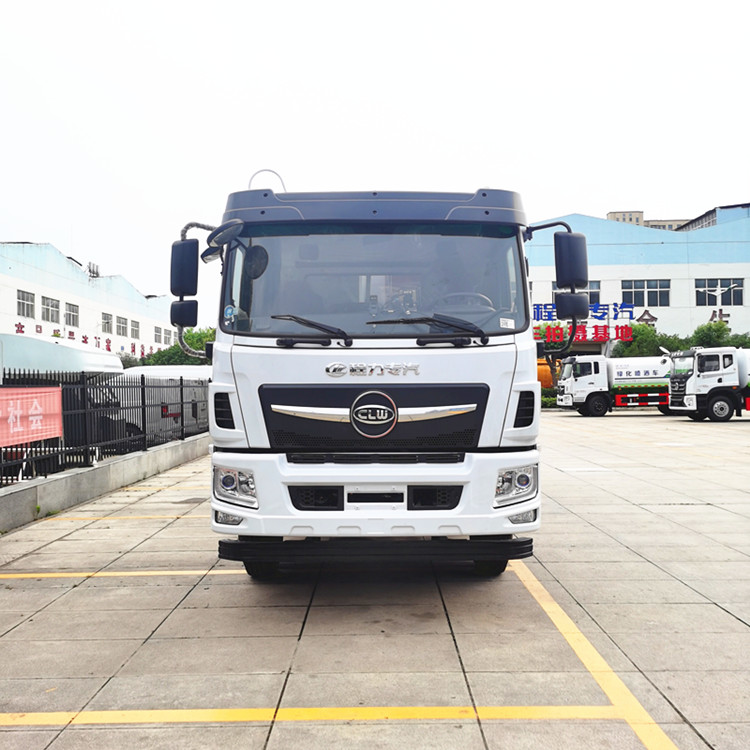

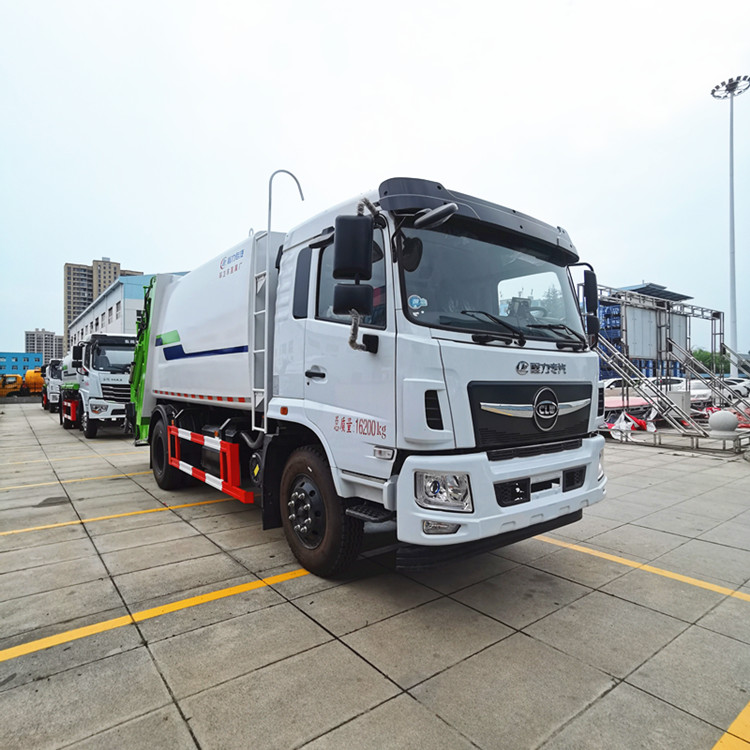

Cheng Li 15cbm compactor garbage truck

Name: Cheng Li 15cbm compactor garbage truck
Brand: Cheng Li Automobile Group
Price: 34500 USD
Rating: 4.5 (8 reviews)

Unit Price:

USD 34500 - 35500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Old And New: New

Gearbox Type: Manual

Emission Standards: Euro 5, Euro 3

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 7850*2550*3150mm

Gross Mass: 16000kg

Curb Weight: 7155kg

Seating: 3

Wheelbase: 4500mm

Number Of Tires: 6

Tyre Size: 9.00R20

Horse-power: 170HP

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c certification

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Parameter configuration of Cheng Li 15cbm Compactor Garbage Truck

Basic parameters of the vehicle

Project	Parameter	Notes
The model number of the vehicle	clw
Wheelbase（mm）	4500
Engine brand	210 horsepower
Engine power(kw)	154kw
Vehicle size (length x width x height)（mm）	785025503150
Total mass（kg）	16000
Quality of equipment（kg）	7155
Working speed（kw/h）	Engine speed	In-situ idling operation
Effective volume of box body（m³）	15
Operation Mode	Electronic/manual/remote control
Cycle time of one feed	12-30s
Discharge time	≤25s

Cheng Li 15cbm compaction Garbage Truck advantages:

1. garbage compactor truck Work efficiently： • High compression ratio and large loading capacity: the crushing pressure is up to 12 tons,

and the loading capacity is equivalent to two and a half times of the same ton of uncompressed garbage,

which can effectively reduce the number of transportation and improve the efficiency of garbage disposal.

• Operation automation: The use of computer control system, filling and unloading operations only need one driver to operate,

there are two modes of automatic and semi-automatic, reduce the labor intensity of sanitation workers, improve the working environment.

2. Environmental hygiene： • Simple collection method: change the dirty situation of garbage cans placed on the streets of the city, avoid garbage exposure,

and eliminate secondary pollution. • Good sealing performance: the whole vehicle is fully sealed, the sewage in the compression process is all into the sewage compartment,

some models also use the rear ship structure garbage bin, special box door sealing technology and oversized side sewage box, etc.,

to prevent sewage overflow and leakage.

3. Reliable performance： • Dual insurance system: The operating system has the dual functions of computer control and manual operation to ensure that

the vehicle can be used normally under various circumstances and improve the utilization rate. • High quality key components: Some key components are imported, such as hydraulic valves, etc., with reliable quality

and stable performance to ensure the overall performance and service life of the vehicle.

4. Diversified configurations： • Rich turning mechanism: can be optional rear hanging bucket turning mechanism, garbage bucket turning mechanism,

swing arm turning mechanism, etc., can also be selected according to different garbage collection methods,

different specifications of the bucket (bucket) mechanism to meet diverse needs. • Optional other configuration: such as imported oil pump, imported multi-way reversing valve set, hydraulic oil cooler,

garbage compaction wired remote control device, etc., to improve vehicle functionality and convenience.

5 waste compactor truck Safety and Comfort： • Low noise: advanced hydraulic matching technology and high-quality hydraulic components are adopted,

and the working speed is selected in the low noise range of the engine to reduce operating noise and reduce interference to surrounding residents. • Operation safety: The electronic control system is controlled by the CAN bus vehicle controller, and the emergency brake button is set,

which can stop the garbage filling mechanism in any state or position to ensure the safety of operators and equipment.

6. Reasonable appearance design • Large departure Angle: The vehicle looks exquisite and smooth, the departure Angle is large, the passability is good,

it can run smoothly on various roads, and the working condition adaptability is high. • Lightweight design: Some models adopt lightweight design, cancel the filling device,

the filling mechanism is arranged on the top of the garbage bin, simple structure, strong applicability, while ensuring performance,

reduce the vehicle weight, improve the fuel economy.
