| Compactor Garbage Truck parameter configuration |
| Chassis section |
| Complete vehicle model | Clw |
| Chassis type | zz1257n4641w |
| Vehicle size | 10170*2550*3300mm |
| total mass | 25000kg |
| Load mass | 10305kg |
| curb weight | 14500kg |
| wheelbase | 4350+1350mm |
| horse-power | 340HP |
| displacement | 7800ml |
| Number of tires | 10 |
| tyre size | 12R22.5 18PR |
| Top part |
| Box volume | 20cbm |
| Filling cycle time | ≤25s |
| Turnover cycle time | ≤10s |
| Type of tilting mechanism | 2 240L plastic buckets (standard) 660L turning mechanism (standard) Semi-sealed bucket (optional) |

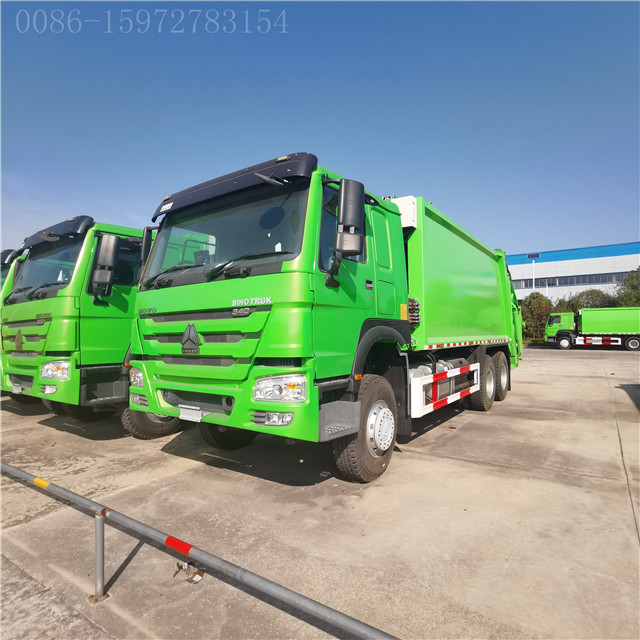

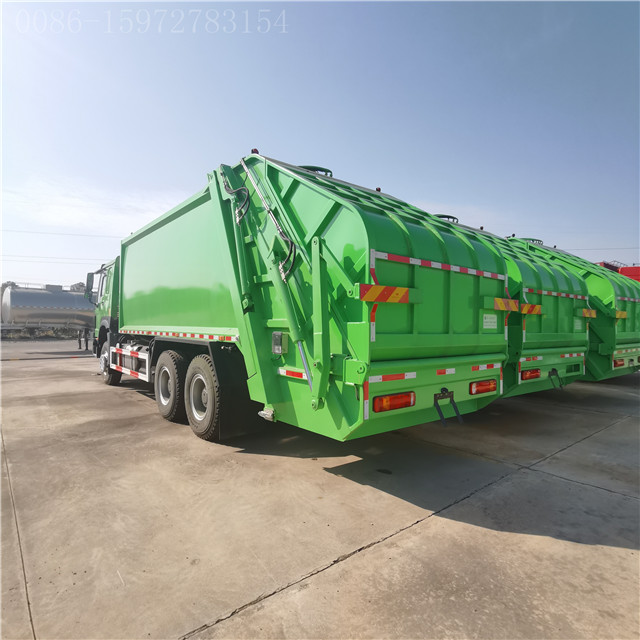

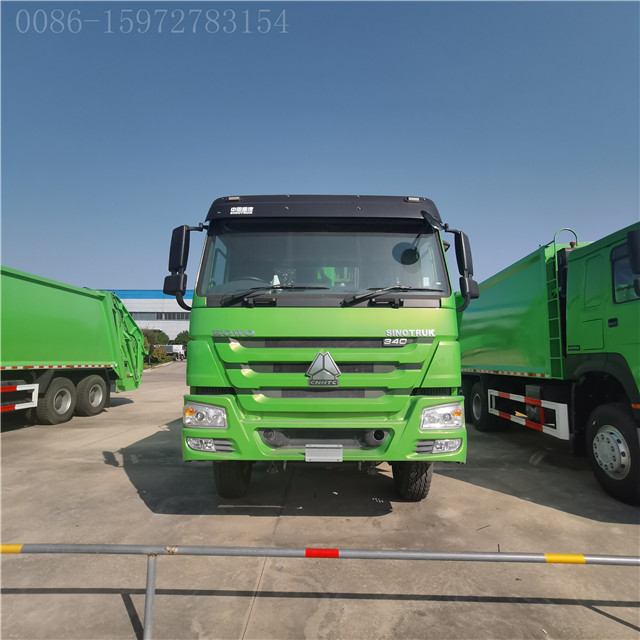

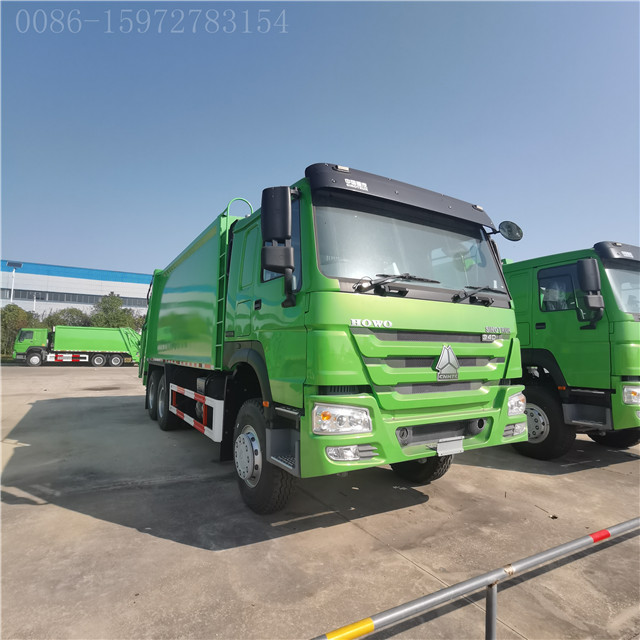

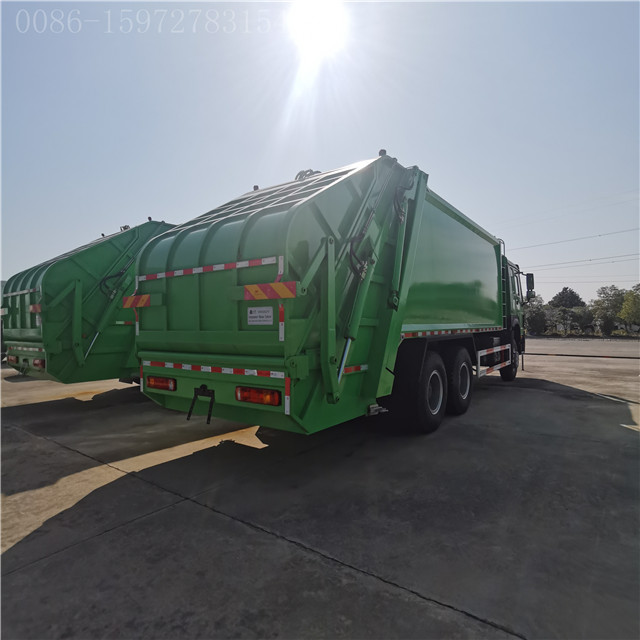

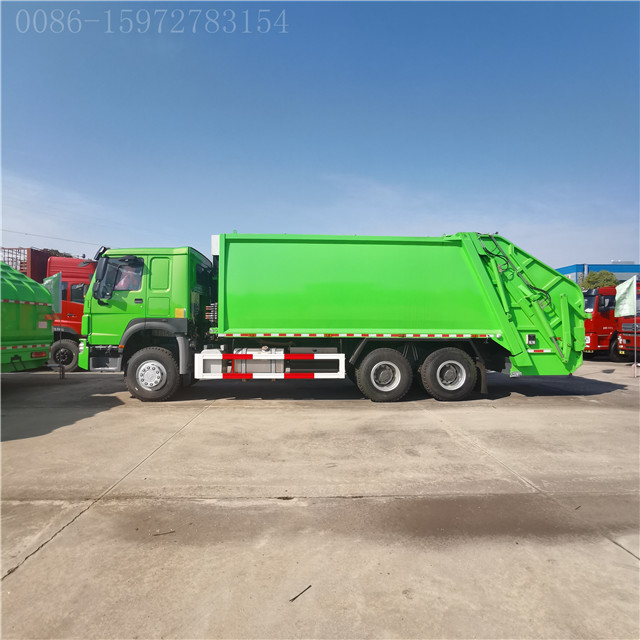

Features of SinotruK HOWo 20cbm Compressed Garbage truck: • Engine: Weichai and Yuchai can be equipped with different types of engines, such as Weichai 340 HP engine,
which has strong power and can meet the driving and operating needs of vehicles under different working conditions.
• Transmission: Equipped with 12-speed transmission, etc., smooth shift,
can adapt to a variety of complex road conditions and working conditions.
Wheelbase: Wheelbase is generally 4300+1350mm and above, providing good stability and carrying capacity for the vehicle.
• Tires: The use of 11.00r20 steel wire tires and other specifications of tires, strong bearing capacity, good wear resistance,
to ensure vehicle safety.
2. Compress the configuration of the garbage truck • Box: Made of Q345 high-strength manganese steel plate, high strength, light weight,
corrosion resistance, fully sealed welded structure, effectively prevent garbage leakage and odor.
• Compression mechanism: using bidirectional compression technology, high compression ratio,
can compress the garbage to a smaller volume, increase the loading capacity, crushing pressure up to 12 tons.
• Sewage collection system: there are two sewage tanks at the bottom of the large car and at the bottom of the filler,
the front sewage tank is controlled by ball valve, and the rear sewage tank is pressed by rubber plate,
which has good sealing and avoids secondary pollution caused by sewage leakage.
• Hydraulic system: Select brand lifting cylinder, operating valve, sleeve type joint, high pressure hose and high pressure steel pipe, etc.,
reasonable installation, reliable arrangement of fixed devices, to ensure that no leakage for a long time,
some models are also equipped with Italy imported multi-way valve, easy to operate and labor saving.
• Control system: The use of computer control system, can be set automatic and semi-automatic two modes of operation,
to achieve a high degree of automation, all filling and unloading operations only need one driver to operate,
reduce the labor intensity of sanitation workers.
• Appearance design: The vehicle shape is beautiful, the color can be customized according to customer needs,
in line with the urban sanitation image requirements.
• Humanized design: Rich cab configuration, such as original heating and cooling air conditioning, electric doors and Windows,
central control door locks, multi-functional steering wheel, etc., to provide a comfortable operating environment for the driver.
• Safety performance: Equipped with hydraulic lifting safety circuit, the explosion-proof valve can effectively block the hydraulic hose
and the lifting cylinder, prevent the danger when the oil pipe breaks, and ensure the personal safety of the operator.
• Working efficiency: short compression cycle time, generally less than 25 seconds, equipped with a standard double pump hydraulic system,
high working efficiency, can quickly complete garbage collection and transportation tasks.
• Large capacity design of 20 square meters, suitable for urban sanitation, large factories and mines, garbage disposal sites and other places of garbage collection, transfer operations, can effectively reduce the number of transportation, improve work efficiency.
