Cheng Li 20 CBM sewer vacuum suction semi Trailer parameters Chengli 22cbm suction trailer features:
• Strong power: It adopts engines such as Weichai 350 HP, Cummins 290 HP and 320 HP,
and is equipped with 9 or 10 speed transmission, which has strong power and can adapt to different road conditions and operation needs.
• Bearing and stability: equipped with 13t Fuhua axle, 4 sets of mechanical suspension plate springs, 12r22.5 vacuum tires, etc.,
strong bearing capacity and stable driving.
• Tank design: Volume 22m³, made of q235 carbon steel or Wuhan steel high-quality steel plate, thickness 8mm,
there is a wave board in the middle of the tank, there is a spillproof valve on the top,
the back cover is opened by two cylinders control, discharge methods are diverse.

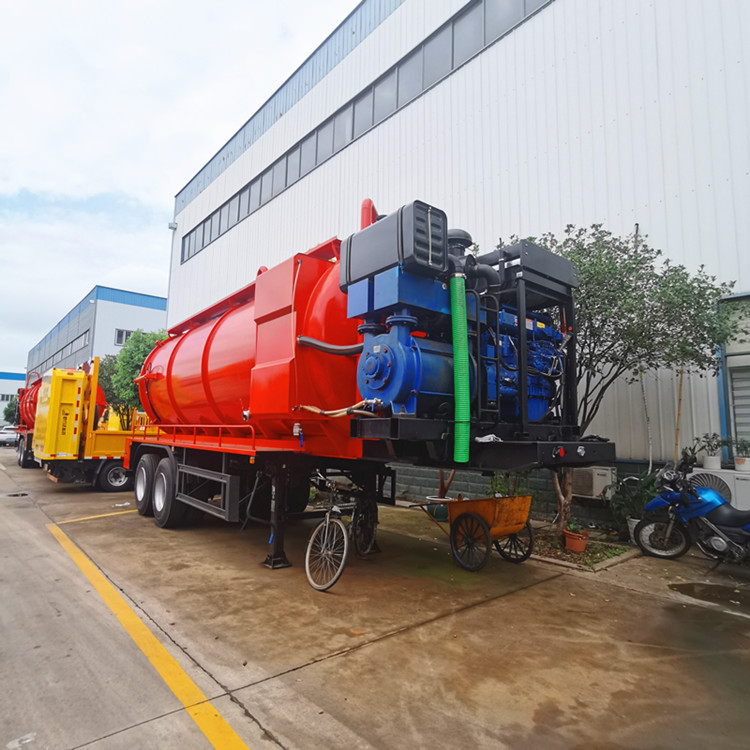

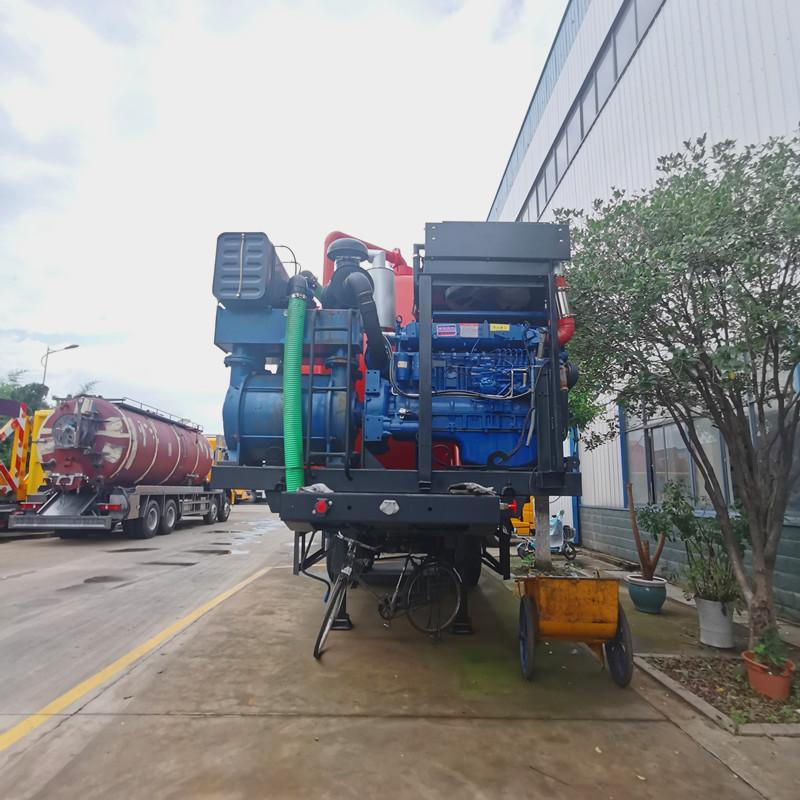

• Suction system: the suction part is equipped with high-power vacuum pumps such as sk-42 water circulation pump,
driven by the auxiliary engine, equipped with 8-10 meters suction pipe, the inner diameter of the pipe is about 102mm,
some models are also equipped with stainless steel filter.
• Other configuration: there are flat pattern plate pipe platform and guardrail on both sides, the vehicle is also equipped with air brake,
2 single 4 double cavity abs, wabco air chamber, electric start water circulation pump, etc., complete functions and high safety.
3. Suction trailer performance characteristics • High suction efficiency: It has the characteristics of long suction distance and high suction range,
and the vertical suction range can reach more than 8-10 meters, which can quickly pump all kinds of sewage and silt.
• Easy operation: the tank can be opened after the double top self-unloading,
the dirt can be dumped directly through the back cover, the operation is fast and easy.
• Wide application: suitable for oilfield drilling mud, urban sewage, liquid sludge transfer and other scenarios,
can also be used for sewer dredging and suction of larger objects.
4. Appearance of vacuum suction trailer • Appearance design: the vehicle size is about 1000025003800mm, the color is optional,
the appearance design is ergonomic and aesthetic, easy to operate and maintain.
5. After-sales service: Cheng Li company provides chassis part of the service station UNPROFOR, dedicated part of the three guarantees of service for one year, after-sales service 48 hours in place,
responsible for lifelong maintenance and provide lifelong free technical service.
