Home > Products > Sewage Truck > Sewage Suction Truck > Sinotruk HOWo 10cbm vacuum sewage suction truck





View the big picture

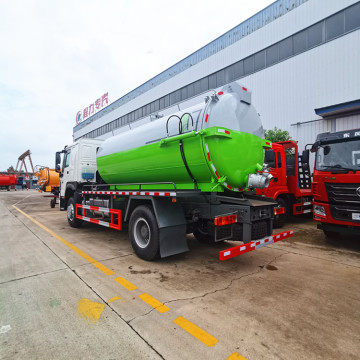

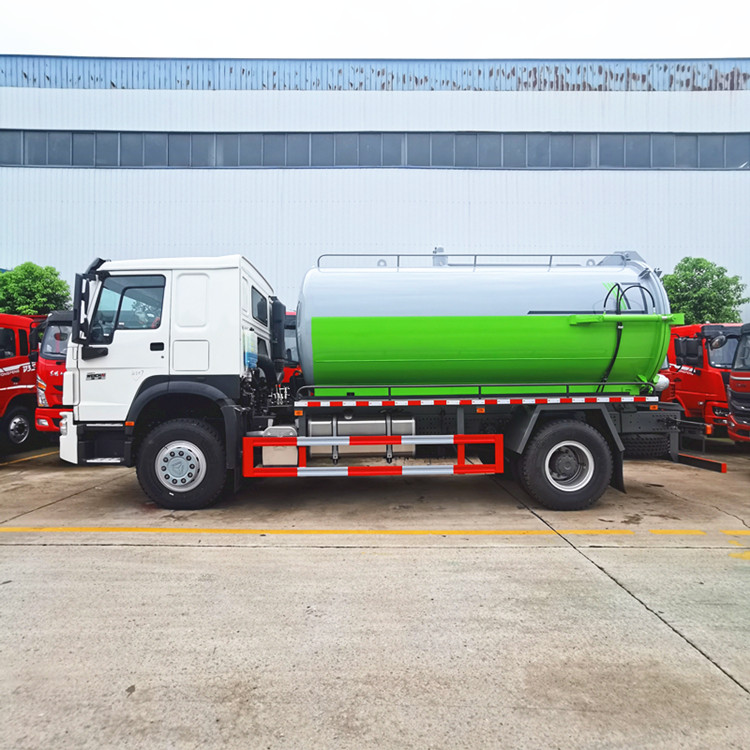

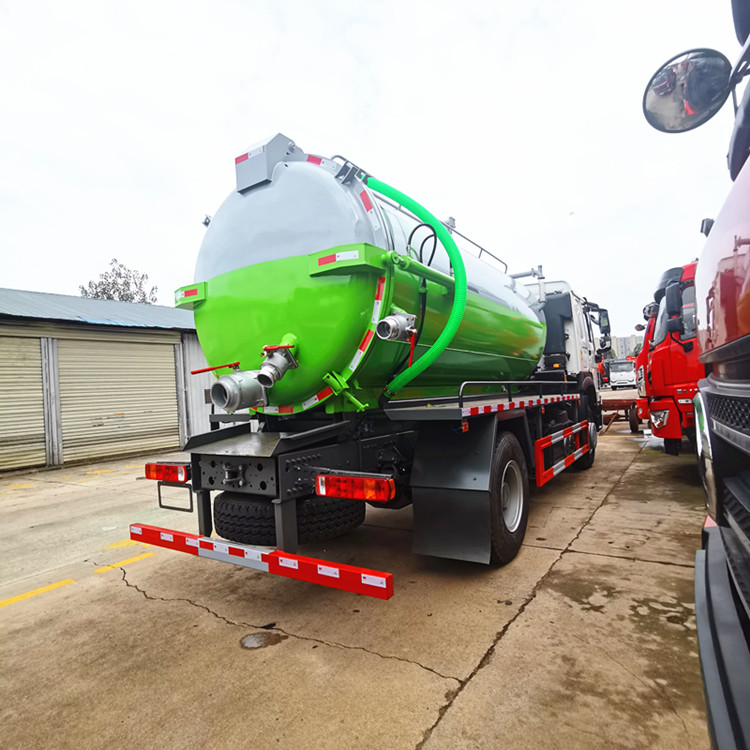

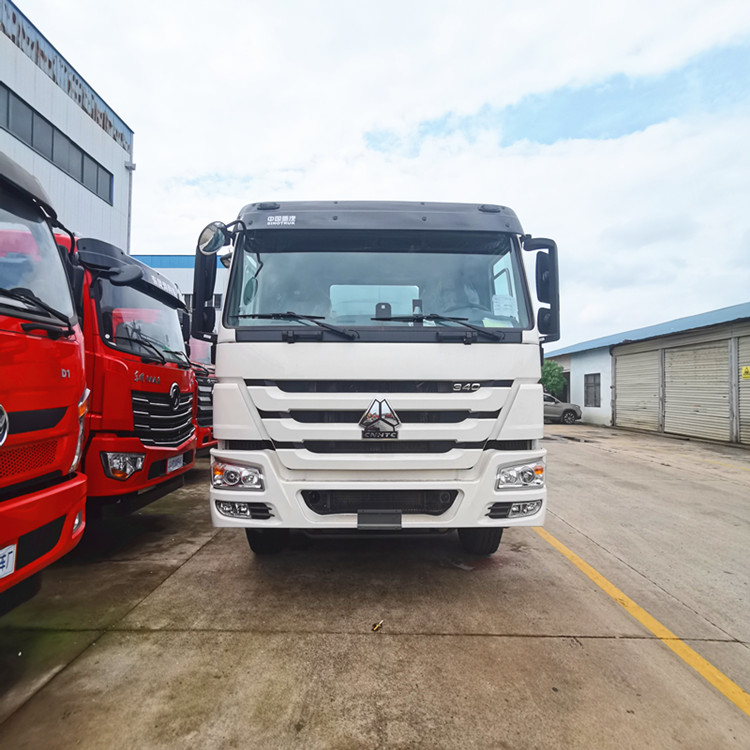

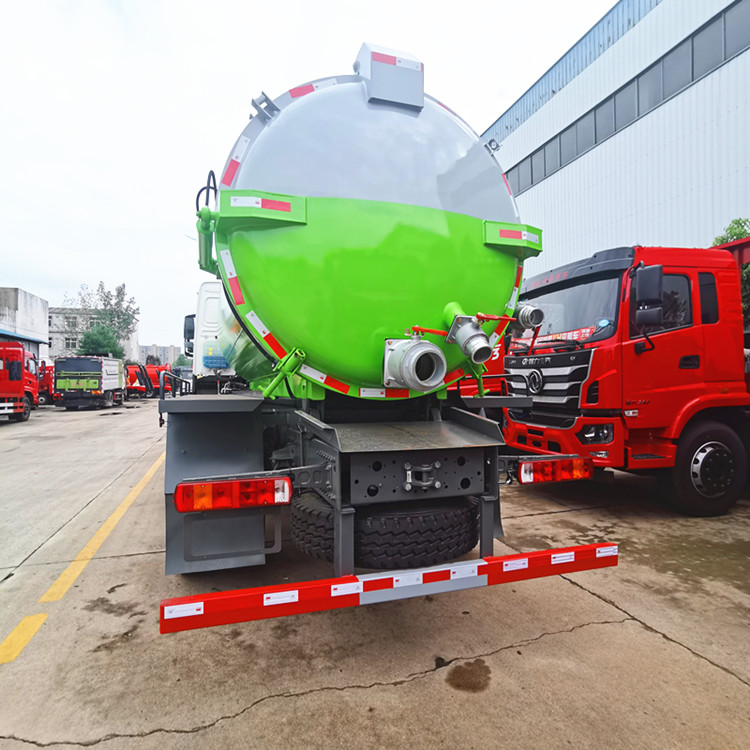

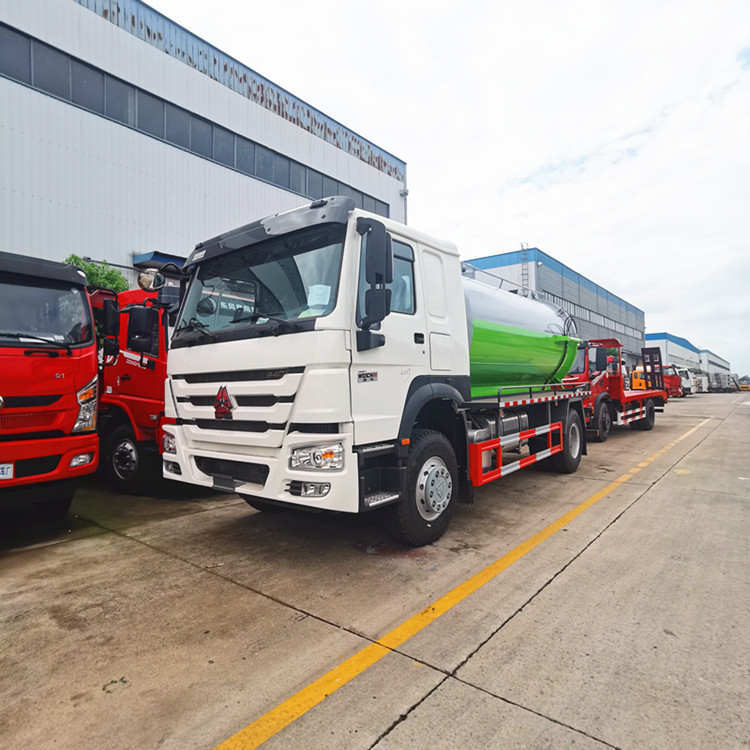

Sinotruk HOWo 10cbm vacuum sewage suction truck

Name: Sinotruk HOWo 10cbm vacuum sewage suction truck
Brand: Cheng Li Automobile Group
Price: 32000 USD
Rating: 4.7 (38 reviews)

Unit Price:

USD 32000 - 32800 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Old And New: New

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 8920*2550*3650mm

Tank Volume: 10cbm

Gross Mass: 18000kg

Curb Weight: 12200kg

Seating: 3

Wheelbase: 4500mm

Number Of Tires: 6

Tyre Size: 11.00R20

Horse-power: 300HP

Brake System: air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c certification

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Sinotruk HOWo 10cbm vacuum Sewage Suction Truck Parameter Settings

Features of SinotruK HOWo 10cbm Sewer Septic Truck:

1. Howo Vacuum Sewer Truck chassis configuration

• Engine: The common Yunnei 170 HP medium-cooled turbocharged engine, Weichai 160 HP engine, etc.,

with strong power, can meet the needs of pollution absorption operations.

• Transmission: such as heavy truck 10-speed high and low speed transmission, Fast 8-speed transmission, etc.,

smooth shift, easy operation, can adapt to different road conditions and working conditions.

• Tire: Generally use 8.25R16 or 11.00R20 steel wire tire, strong bearing capacity, good wear resistance, to ensure the stability and safety of the vehicle.

• Cab: single row or with sleeping cab, spacious interior, equipped with luxury electric doors and Windows,

original car air conditioning, air brake brake, etc., to provide a comfortable operating environment for the driver.

2. sewage Tank Truck configuration

• Tank body: The tank body is made of 6mm thick high-quality carbon steel plate, which is rolled and formed once.

The tank body is equipped with wave board and channel steel support,

which can effectively prevent the deformation of the tank body and extend the service life.

• Sewage suction pump: Standard Yifeng 5-ton high-power vacuum pump or SK-12 water ring vacuum pump, etc.,

arge suction, long suction range, can quickly pump a variety of liquid, semi-liquid sewage,

such as septic tank, sewer, rainwater well sludge, feces, waste water, etc.

• High pressure cleaning system: some vehicles are equipped with German Pinfu high pressure pump,

large flow, high pressure, with 60 meters diameter 19# double steel wire high pressure pipe and a variety of nozzles,

can be high pressure cleaning of sewers, pipelines, etc., unclogging.

• Other configuration: anti-overflow valve installed on top of tank to prevent sewage overflow;

The back cover is provided with a sewage outlet to facilitate the discharge of sewage;

Equipped with hydraulic tank lifting and hydraulic back cover opening system, easy to operate, one person can complete the job.

Sinotruk HOWo 10cbm Sewage Truck maintenance cycle

1. For the chassis part, it is generally maintained according to the driving distance.

The first maintenance is carried out when the vehicle is traveling 1500-2000 kilometers,

mainly to replace the oil, the oil filter, and check the connection of the chassis components.

After every 5000-10000 kilometers, to replace the oil and oil filter;

Replace the air filter and fuel filter every 20,000-30,000 kilometers; Every 40,000-60,000 kilometers,

check and replace the spark plug (if it is a gasoline engine), check the brake system, including brake pads, brake discs, brake fluid, etc.

2. The maintenance of the tank is also critical. Suction pump every 100-200 hours of work,

to check the oil condition of the pump, according to the situation to supplement or replace.

The suction pipe should be cleaned after each use to prevent the residue of dirt from corroding the pipe.

Check the tightness of the tank once a quarter to see if there is any leakage; Check the hydraulic system every six months,

including the oil quality and oil amount of hydraulic oil, the working status of hydraulic cylinder and other components.

Product Categories : Sewage Truck > Sewage Suction Truck
