Home > Products > Sewage Truck > Sewage Suction Truck > Cheng Li 3CBM Sewage Suction Truck





View the big picture

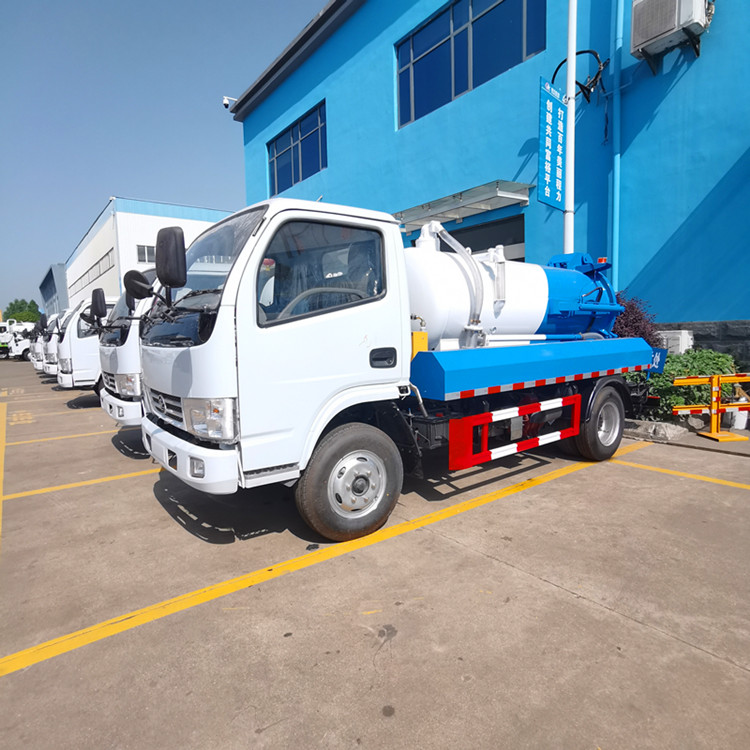

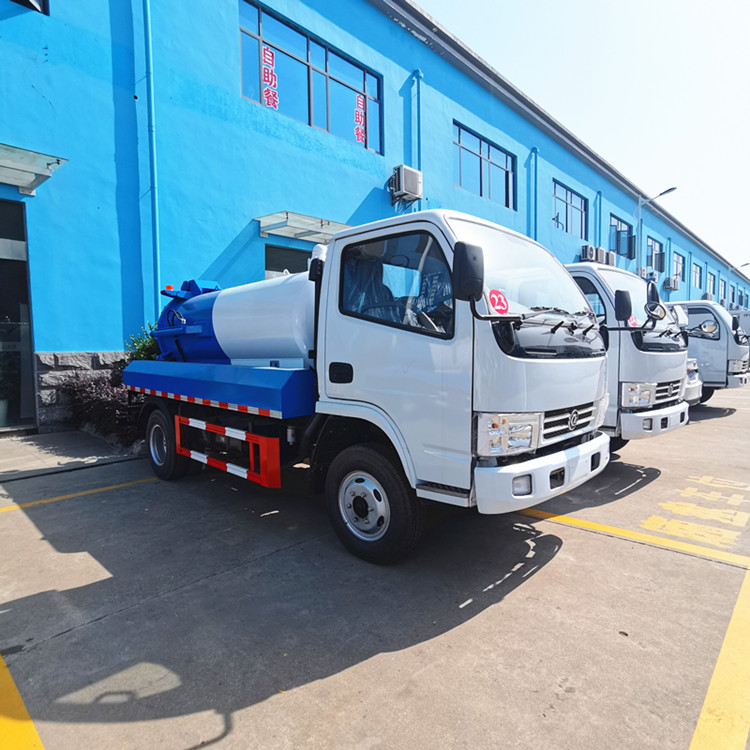

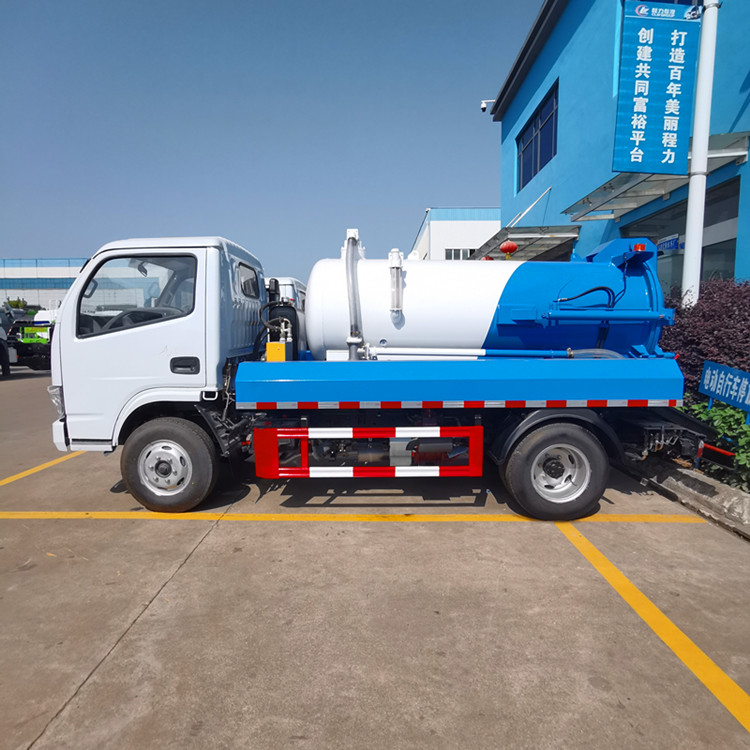

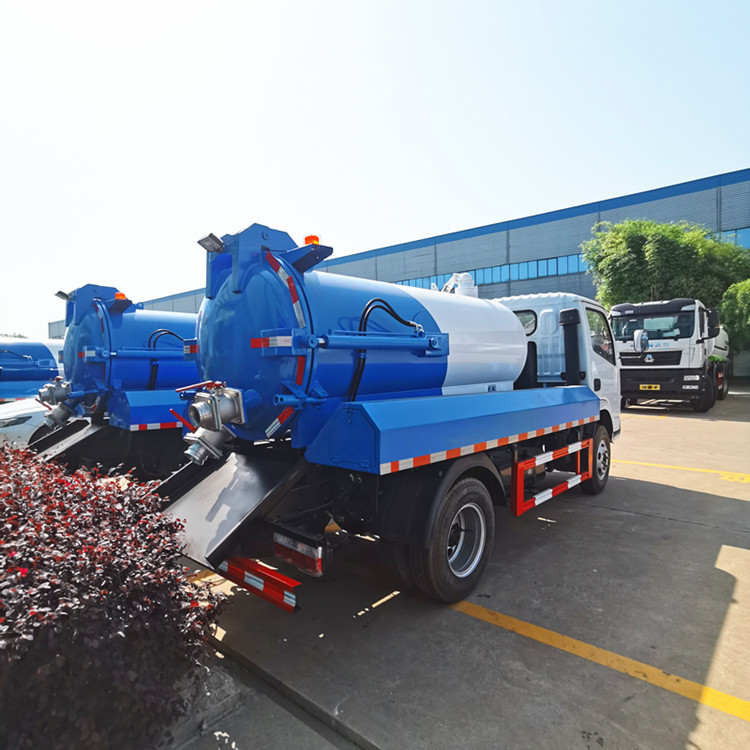

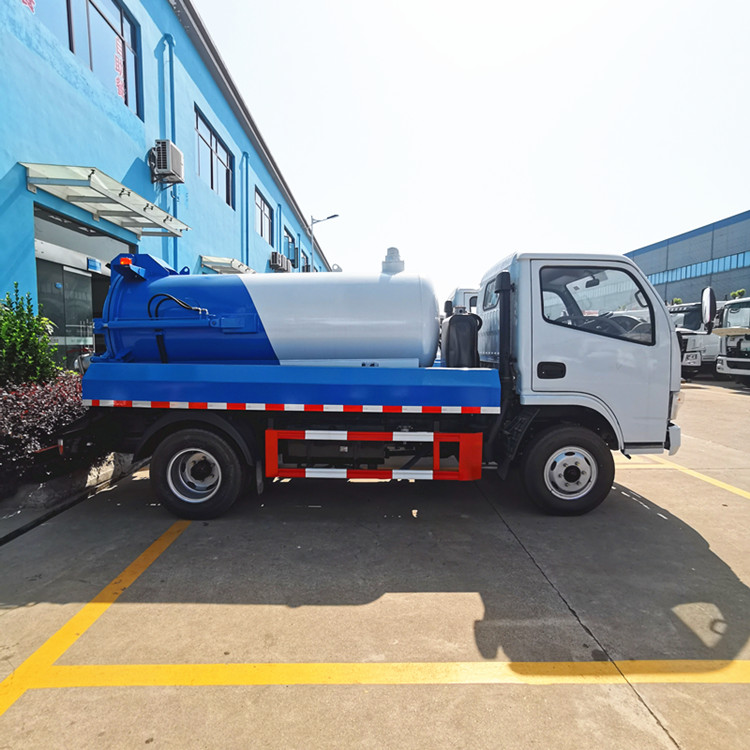

Cheng Li 3CBM Sewage Suction Truck

Name: Cheng Li 3CBM Sewage Suction Truck
Brand: Cheng Li Automobile Group
Price: 18000 USD
Rating: 5.0 (37 reviews)

Unit Price:

USD 18000 - 18500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Emission Standards: Euro 3, Euro 5

Fuel: Diesel

Place Of Origin: China

Vehicle Size: 5995*1990*2500*

Tank Volume: 3cbm

Gross Mass: 4495kg

Curb Weight: 3000kg

Seating: 2

Wheelbase: 3308mm

Number Of Tires: 6

Tyre Size: 7.00R16

Horse-power: 120HP

Brake System: air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 30unit/month

Certificate: 3c certification

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Cheng Li 3CBM Sewage Suction Truck Parameter Settings

Name of vehicle manufacturer	clw
Vehicle brand/vehicle name	ace		Sewage suction truck
Engine brand	yuchai Power		Horsepower	120 horsepower
Type of fuel	Diesel fuel		Displacement and power (ml/kw)	2970		88
Vehicle size	5995x2150x2650mm		Tank volume	3m³
Number of leaf springs (leaf)	3/3+2		Number of tyres	6
Tire specifications	7.00R16
Wheelbase（mm）	3308（Optional）
Number of axes	2	Form of steering			The steering wheel
Total mass (kg)	4495	Quality of equipment(kg)			3200
Number of persons allowed to ride in the cab (person)	2	Maximum design speed (km/h)			90

Main features of Cheng Li 3cbm septic Tank Truck:

1. Sewer Septic Truck chassis configuration

• A variety of options: common Dongfeng small Tuyi single-row cab with full chai 95 horsepower engine,

Dongfeng small Dolica with Yuchai 155 horsepower engine, etc., stable power output, can meet the needs of different working conditions.

• Good driving performance: generally equipped with 185 vacuum tires or 825 steel wire tires, etc.,

the vehicle has good carrying capacity and driving stability, and can adapt to various road conditions.

2. Configuration of Vacuum Sewer Truck

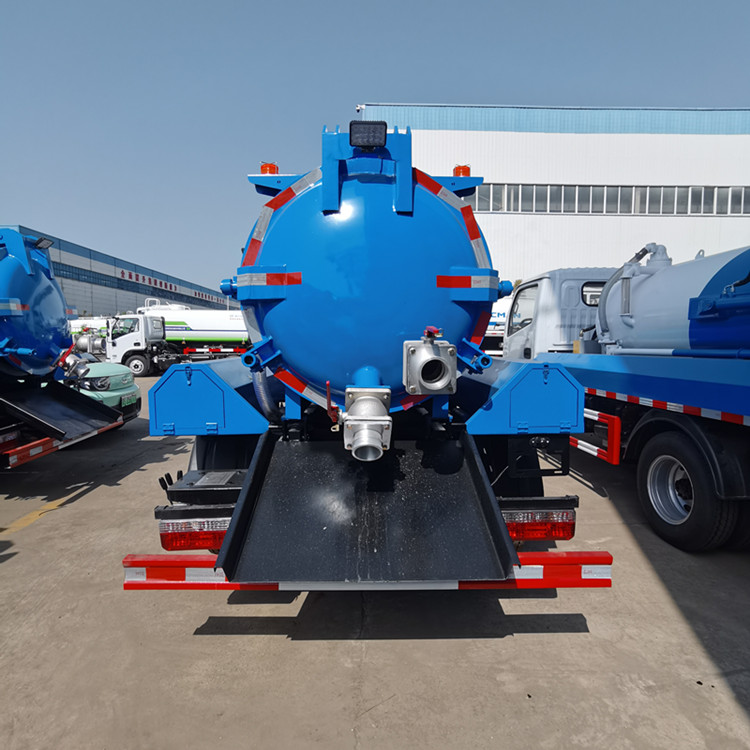

• Tank design: The effective volume of the tank is generally about 3 square meters, made of WISCO high-quality steel plate,

the thickness of 5mm-6mm, the thickness of the head 6mm-8mm, the tank can be opened back, double top self-unloading, easy to dump dirt.

• Suction system: Equipped with high-power vacuum pumps such as SK-6 water circulation vacuum pump

or 5 tons oil circulation vacuum pump, large suction, high efficiency, can realize self-suction and self-discharge function,

but also equipped with vacuum pressure gauge, fecal window, hand washing device, etc.

• Pipe system: The pipe adopts 50 seamless steel pipes, equipped with about 6 meters of suction pipe,

the inner diameter of the pipe can meet the normal suction operation, some vehicles can also be equipped with sprinkling,

high pressure cleaning and other functions, to achieve a multi-purpose car.

3. Sewage suction truck performance characteristics

• High suction efficiency: vacuum pump performance is excellent, can quickly pump all kinds of sewage, silt,

vertical suction range of up to 8-15 meters, horizontal suction range of 20-40 meters.

• Operation convenience: tank lifting, back cover opening and other operations are controlled by hydraulic pressure,

with a high degree of automation, reducing labor intensity and risk.

• Good passability: reasonable body height design, such as Dongfeng Tuyi Blue brand 3 square suction vehicle height of 1.98 meters,

can shuttle in narrow old residential areas and other places.

4. Application scenario of Sewage Suction vehicle

It is widely used for sludge and sewage pumping in urban rainwater Wells, inspection Wells and various ditches,

as well as collection and transfer of sewage and feces in residential properties, building basements and rural roads.

5. After-sales service of Sewage Truck

Chengli company provides perfect after-sales service, including lifelong tracking service,

free repair within one year after the delivery of the car or within 10,000 kilometers,

and service personnel arrive within 24 hours in the province.
