| Vehicle parameter configuration |
| Vehicle brand/vehicle name | Clw | Wrecker truck |
| Engine brand | JMC Power | Horsepower | 177 horsepower |
| Type of fuel | Diesel fuel | Displacement and power (ml/kw) | 2296 | 130 |
| Vehicle size | 5720x1935x1872mm | Tire specifications | 245/70R17 |
| Number of leaf springs (leaf) | -/5 | Number of tyres | 4 |
| Number of axes | 2 | Form of steering | The steering wheel |
| Total mass (kg) | 3150 | Quality of equipment(kg) | 2470 |
| Number of persons allowed to ride in the cab (person) | 5 | Maximum design speed (km/h) | 170 |

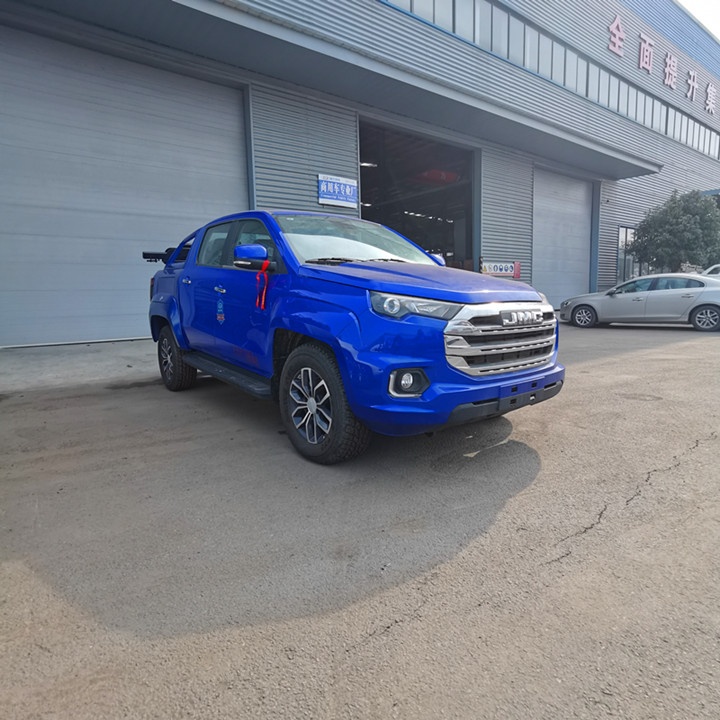

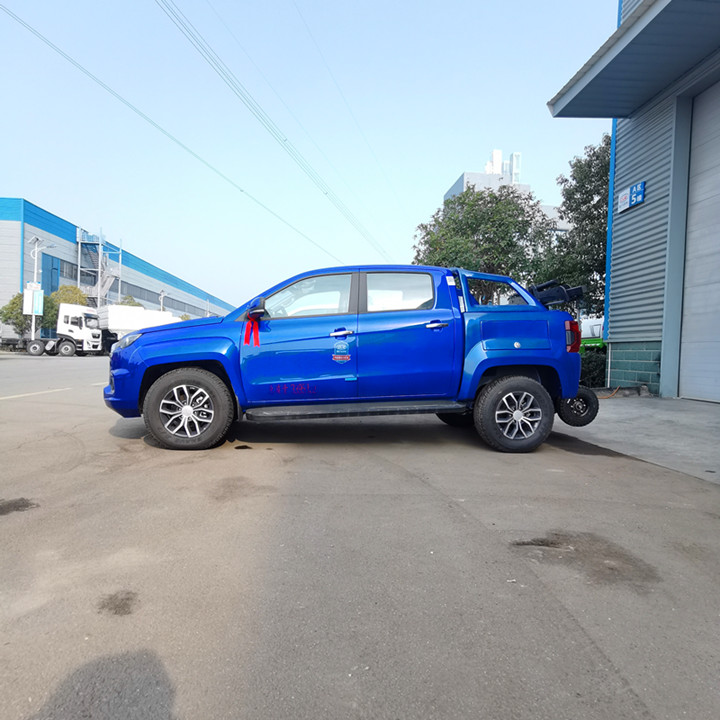

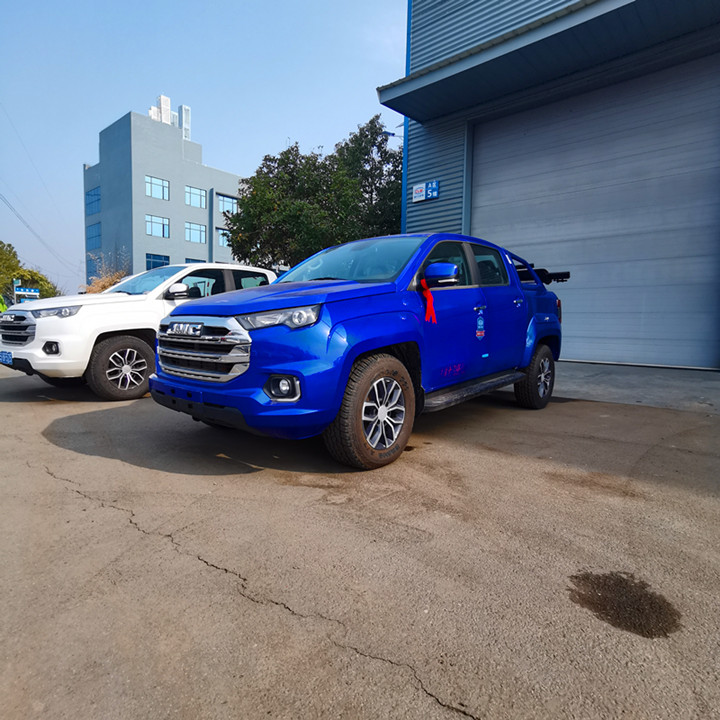

JMC Pickup Wrecker Truck Introduction: • Power: Equipped with American Ford 2.0T turbocharged diesel engine, stable work, strong power, national six emission standards,
141 HP, intercooled turbocharged diesel engine, output torque 356 nm.
• Tow Truck Chassis: Jiangling Yuhu 7 pickup special chassis, solid and durable, bearing power, wheelbase 3085mm,
equipped with four wheel disc brakes, aluminum alloy wheels, 265/70R16 or 265/65R17 off-road vacuum tires,
some models have sunroof, double foot pedals, cargo box interior spray, rear air conditioning window, etc.
• Cab: The main driver is an airbag cushioned seat, which can be adjusted up and down to reduce driving fatigue.
The interior adds youthful elements, including chrome-plated door handles, multi-function steering wheel, LCD instrument,
multi-function display, electric glass, central lock, one-button start, etc.
2. Pickup wrecker truck installation configuration • Flat plate: Some models use JMC SMC cargo boxes, which have strong corrosion resistance, impact resistance and wear resistance.

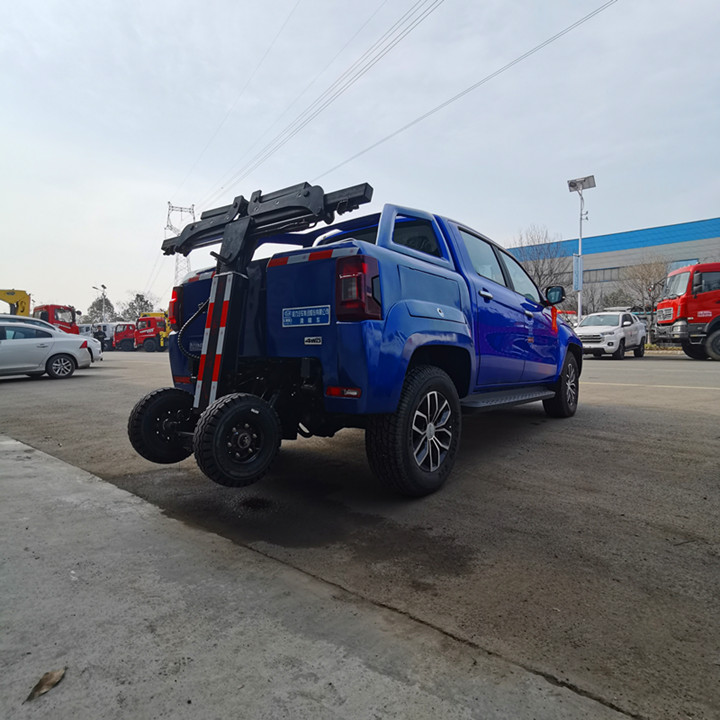

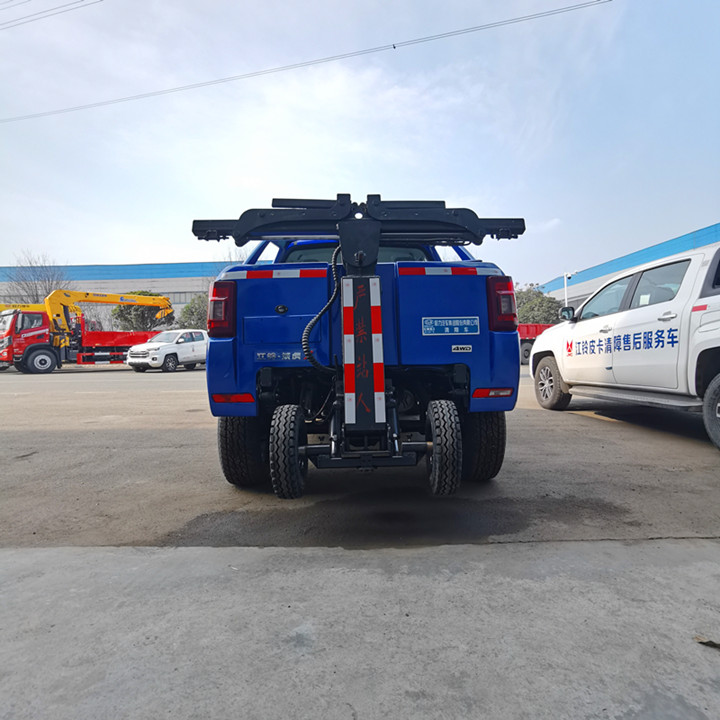

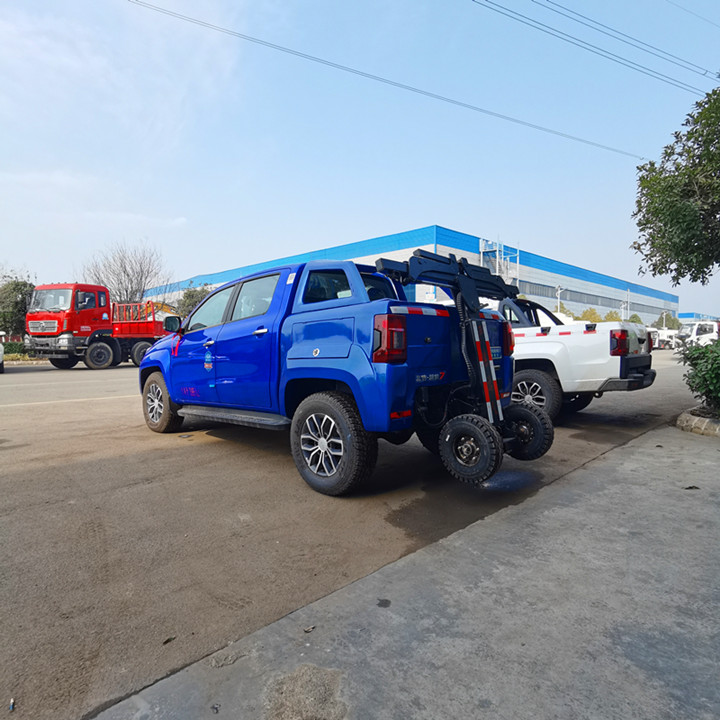

• Bracket: Equipped with the fifth generation hydraulic three-stage telescopic tow arm or folding rear bracket arm,
with universal training wheels, imported oil seal, electro-hydraulic unit, wireless remote control, lifting weight of about 2 tons to 3 tons.
• Other: standard automatic tire holding device, optional high-speed small sports car, electric winch, universal training wheels,
two longitudinal beams with steel plate strengthening.
3. Pickup wrecker truck features • Application scenario: the body is small and flexible, and can freely enter the basement, narrow urban areas
and other places for rescue operations, suitable for traffic control departments, auto repair factories, auto 4S shops, rescue centers, etc.
• Operating performance: carbon dioxide shielded welding and argon arc welding are used for welding,
the weld length is greater than 300mm, and the surface of the weld is smooth by automatic sewing;
Some models are equipped with bilateral linkage operation device, easy to operate.
4. Pickup wrecker tow truck after sale and others • After-sales service: some manufacturers provide direct dispatch or entrust on-site after-sales service,
chassis part of the national service station guarantee, special part of three guarantees of service for one year,
after-sales service 48 hours in place, responsible for lifelong maintenance and give lifelong free technical service.
