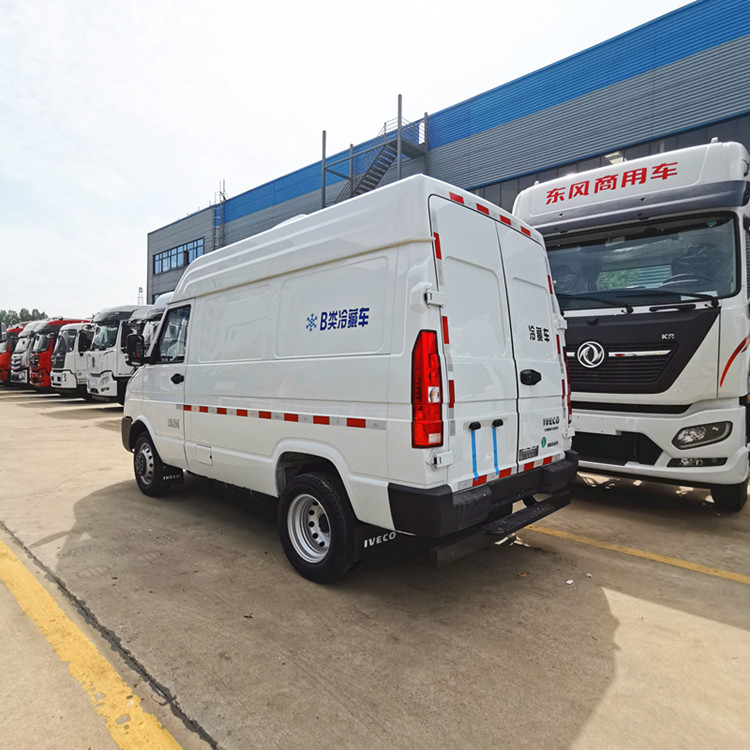

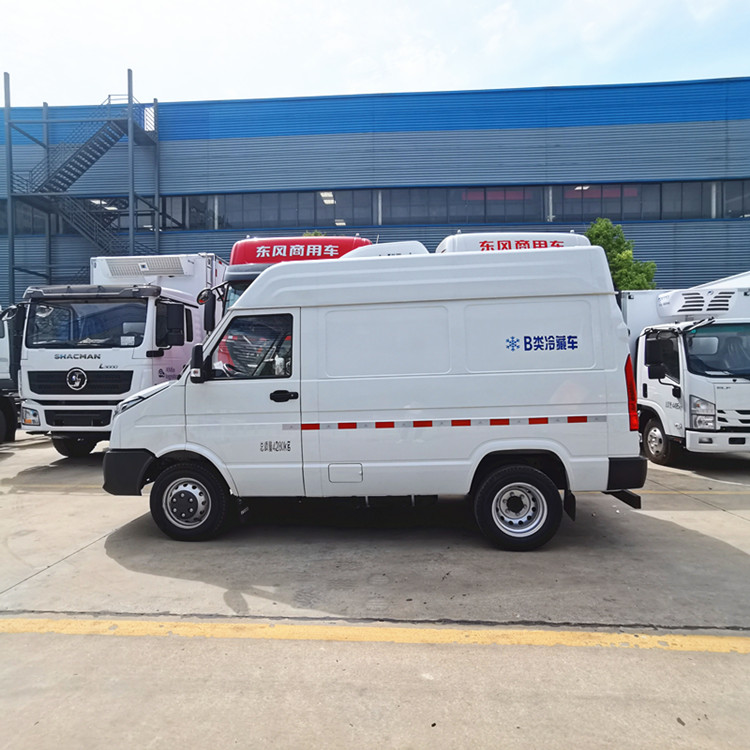

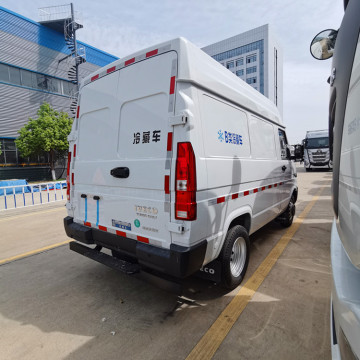

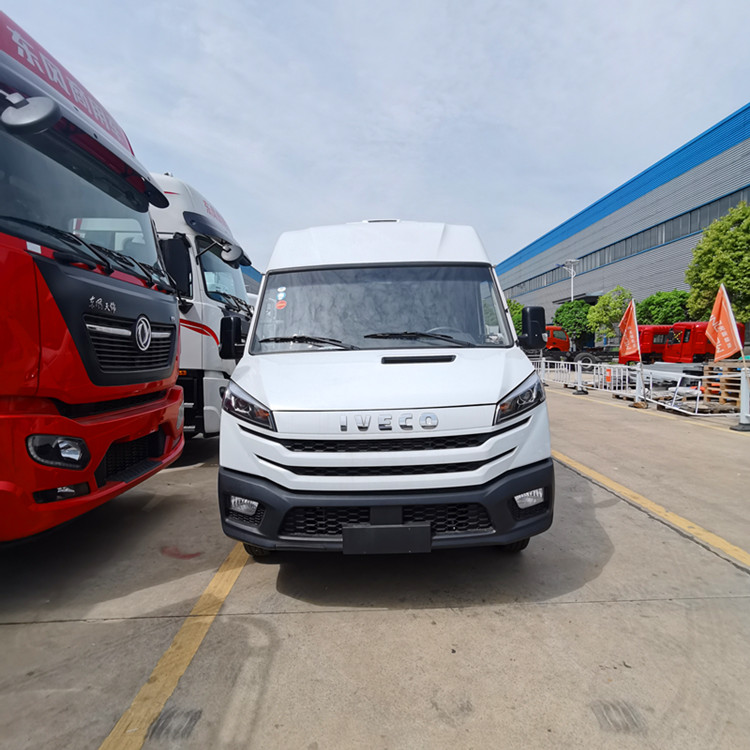

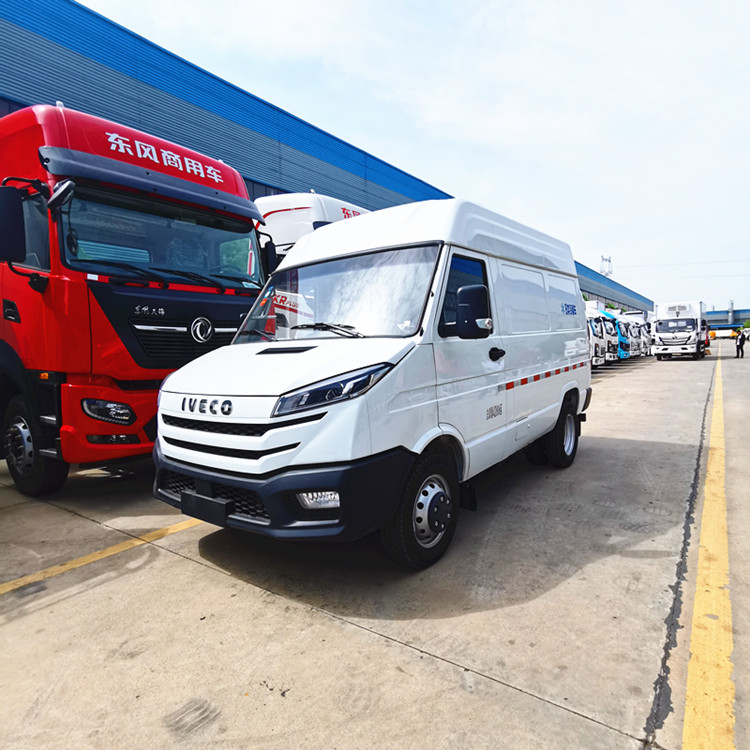

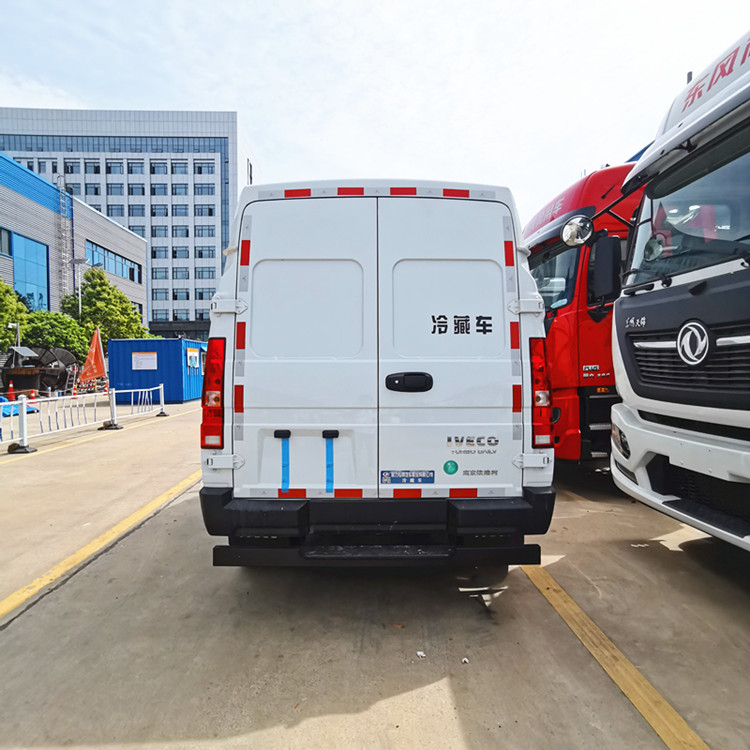

Iveco bread refrigerated truck is a common cold chain transport vehicle, the following is its detailed introduction:
• Short-axle model: the vehicle size is generally 4850-4875mm×2000mm×2735-2800mm,
the body size is about 2100-2150mm×1580-1640mm×1480-1550mm, and the volume is about 4.6-5.5 cubic meters.
• Long-axis model: the vehicle size is about 5980-5995mm×2000mm×2595-2800mm,
the body size is roughly 3320-3360mm×1620-1640mm×1550-1560mm, and the volume can reach 8.5-8.6 cubic meters.
2. Iveco refrigerator truck chassis configuration Equipped with Iveco Sofam series diesel engine, the common engine with 2.5 displacement 122 HP or 2.8 displacement 130 HP,
equipped with Iveco 5 speed manual transmission, rear twin design to increase the load capacity of the vehicle,
the use of non-bearing girder, double cross arm torsion bar spring independent front axle, spring plate rear axle,
It is also equipped with original air conditioning, direction power, electric doors and Windows, ABS, oil brake,
front and rear solid disc brake and other configurations.
The body adopts the international general bridge insulation advanced technology, such as vacuum adsorption,
hydraulic adsorption integrated molding production line, sandwich composite bonding,
insulation performance reaches the national A-level standard;
The interior and exterior panels are made of domestic high-quality fiberglass steel,
the middle insulation layer is xPS extruded polystyrene board, the floor is made of aluminum pattern plate,
and the door strip is made of labyrinth rubber seal strip. The car body accessories include stainless steel door lock hinges,
stainless steel door frame and hinge, and energy-saving LED lights in the car.
Can choose Hanxue, Huatai, Kelley, Kaisei, Asiana, Carrier, Cold King and other brands of refrigeration units,
the temperature can be adjusted between -15℃ to -5℃, some models can also be equipped with temperature and humidity recorder,
ventilation groove, guide rail, meat hook and other configurations.
5. Bread refrigerated truck performance advantages • Strong power: IvECO Sofam series diesel engines with stable and strong power output can adapt to a variety of complex road conditions.
• Good carrying capacity: the rear twin design, the total mass of about 4280kg, the rated load mass is generally more than 1 ton,
can meet the needs of more cargo transportation.
• Good thermal insulation performance: The body is made of high-quality thermal insulation materials,
which can effectively prevent the introduction of external heat and ensure the stability of internal temperature.
• Excellent cooling effect: the refrigeration unit can quickly reduce the body temperature
and accurately control the temperature to meet the temperature requirements of different goods.
• Rich safety configuration: equipped with ABS anti-lock braking system, front and rear disc braking, etc.,
to ensure the stability and safety of the vehicle braking.
• High comfort: the cab of some models is equipped with electric glass, remote control key,
central control lock, original cooling, heating and air conditioning and other configurations to reduce driving fatigue.
• Flexible and convenient: the vehicle looks like bread, and the body is relatively small,
which can be flexibly shuttled through urban roads and narrow areas for urban distribution.
