Home > Products > Refrigerated Truck > Foton Auman EST heavy duty refrigerated truck





View the big picture

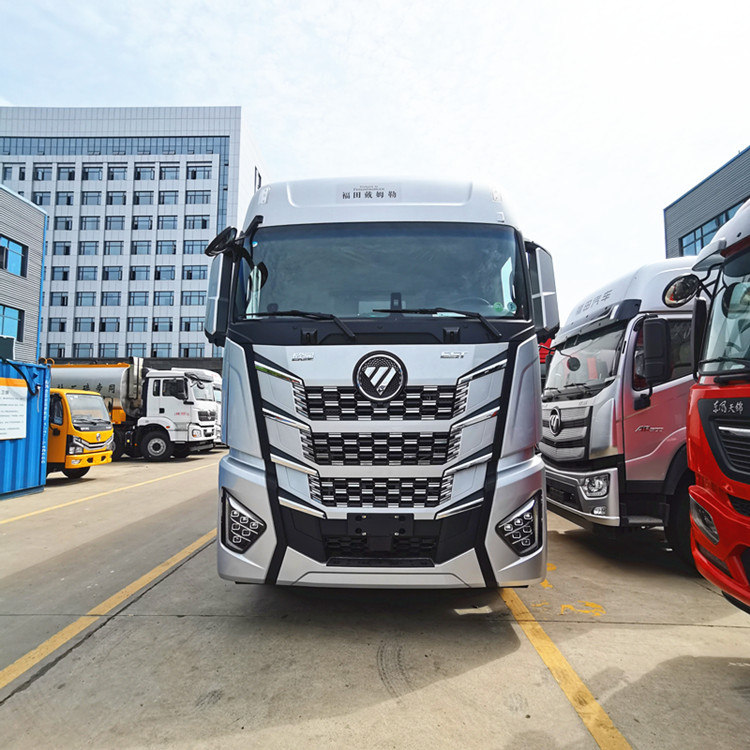

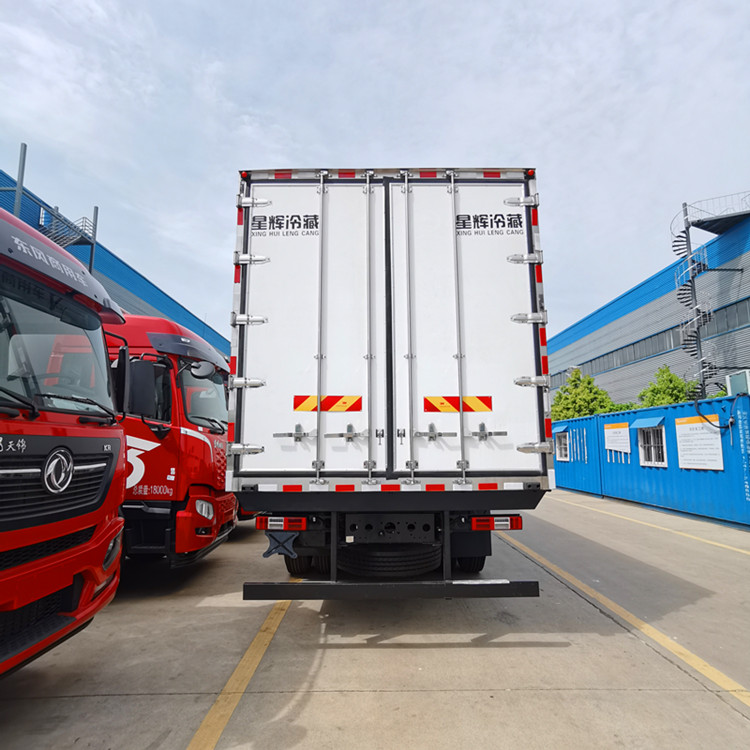

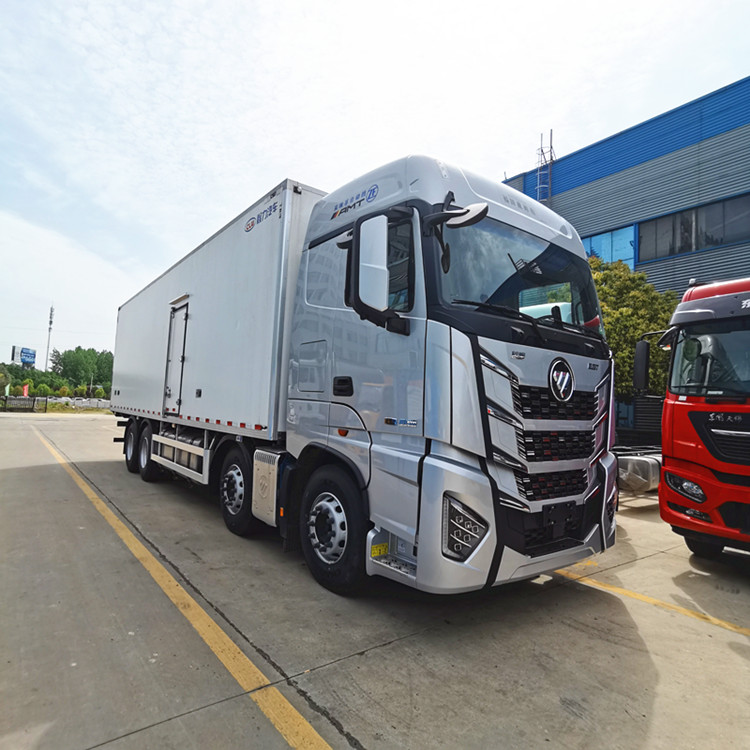

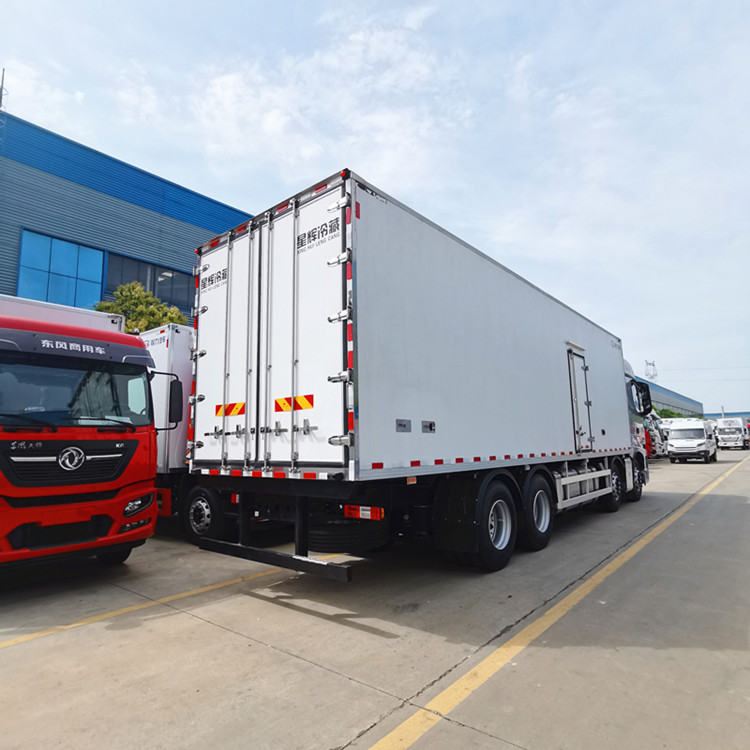

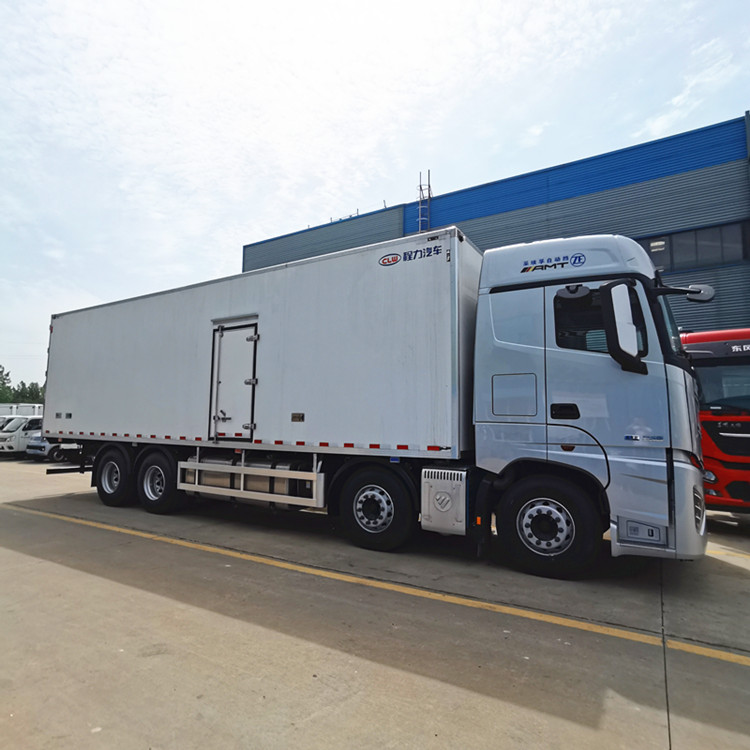

Foton Auman EST heavy duty refrigerated truck

Name: Foton Auman EST heavy duty refrigerated truck
Brand: Cheng Li Automobile Group
Price: 91000 USD
Rating: 5.0 (22 reviews)

Unit Price:

USD 91000 - 99500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Old And New: New

Horsepower: > 450hp

Fuel: Diesel

Vehicle Size: 12000*2600*4000mm

Container Size: 9400*2450*2500mm

Gross Mass: 31000kg

Curb Weight: 13700kg

Seating: 3

WheelBase: 2100+4400+1350mm

Number Of Tires: 12

Tyre Size: 295/80R22.5

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Foton Auman EST heavy duty Refrigerated Truck Parameter Settings

Box volume	58m³	Box size	9400x2450x2500mm
Box body material	Glass fiber reinforced plastic, steel pipe, plastic extrusion board, stainless steel	Vehicle size	1200026004000mm
The thickness of the box body	80mm
Type of fuel	Diesel fuel	Tire specifications	295/80R22.5
Emission standards	Euro six	Gearbox	12-speed gearbox
The engine	Cummins 530 horsepower	Present condition	Customisation

Foton Auman EST refrigerated truck parameter configuration:

1 Basic information about Refrigerated Trucks

• Vehicle size: about 12000×2600×3950-3995mm, box size about 9350-9450×2430-2450×2500mm.

• Wheelbase: 2100+4400+1350mm. • Rated load: about 17-18 tons, total mass about 31 tons.

• Tire size: 12R22.5 16PR vacuum tire.

2. Foton Omman EST chassis configuration

• Engine: can be equipped with different types of Foton Cummins engine, such as X12NS6B490, X12NS6B520,

X13NS6B580, displacement 11.8L-12.9L, horsepower 490-620, meet the national six emission standards.

• Transmission: ZF automatic transmission, such as 12TX2420TD, 12TX2620TD, 12TX2820TD, etc., the number of gears is 12.

• Rear axle and speed ratio: there are 400 Bridges, new 440 Bridges and other options, such as 2.533, 2.643, 2.846 and so on.

• Cab: high-top two-bedroom cab, full floating four-bag shock absorption, airbag main seat, equipped with 4 airbags,

integrated electric heating rearview mirror, etc.

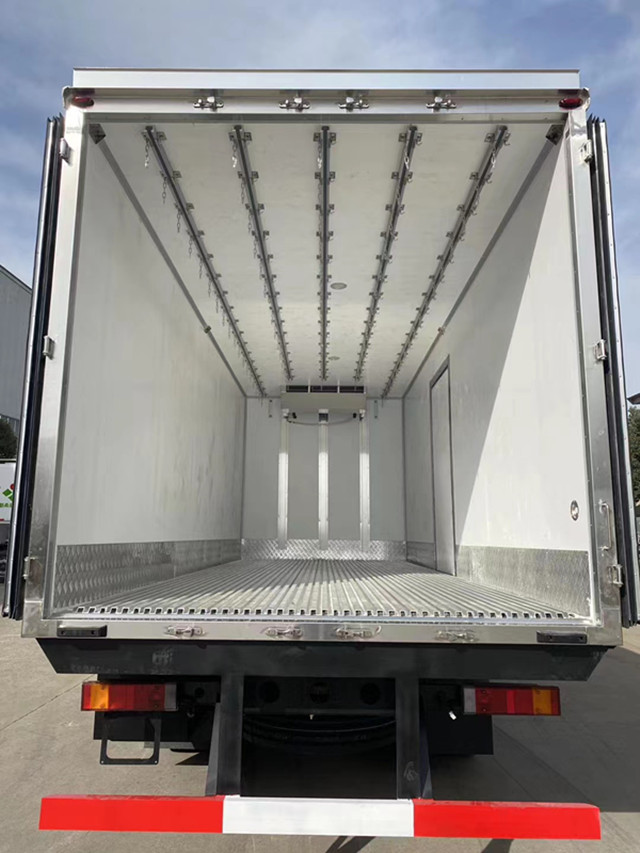

3. Configure the refrigerated box

• Car structure: steel and wood structure, bridge insulation technology, galvanized pipe frame,

internal and external high-quality glass steel, the middle filled with 8 thick XPS extruded polystyrene board, the floor is plastic steel pattern board.

• Body accessories: thickened aluminum alloy edges, stainless steel corners, door lock hinges and lock hinges, energy saving LED lights in the body.

4. Refrigerated truck refrigeration unit

It can be assembled with Chinese-made refrigeration units, such as Cheng Li, Starlight, Huatai, Kelly refrigeration units, etc.,

and can also choose the United States cold King, Carrier imported refrigeration units, the temperature control is -5° to -15° optional,

and the warranty is two years.

Refrigerating unit
Refrigeration unit brand	American cold king
Refrigerating unit type	split
Type of refrigeration unit	Truck engine driven, split
refrigerant	Hydrofluorocarbon R404a
Air flow	3000 m³/h
Cooling capacity (+30C environment/road)	-20C
Cooling capacity (+30C environment/Bide one's time)	selectable
defrost	Automatic hot gas

5. Optional configuration of refrigerated truck box

• The inner lining of the box can be made of stainless steel, and the floor of the box can be made of FRP integrated molding board or aluminum pattern anti-slide board.

• The box can be equipped with 6 ventilation slots and meat hook guide rails

• The end of the box can be equipped with an electro-hydraulic tailplate
