Home > Products > Refrigerated Truck > Foton small refrigerated truck





View the big picture

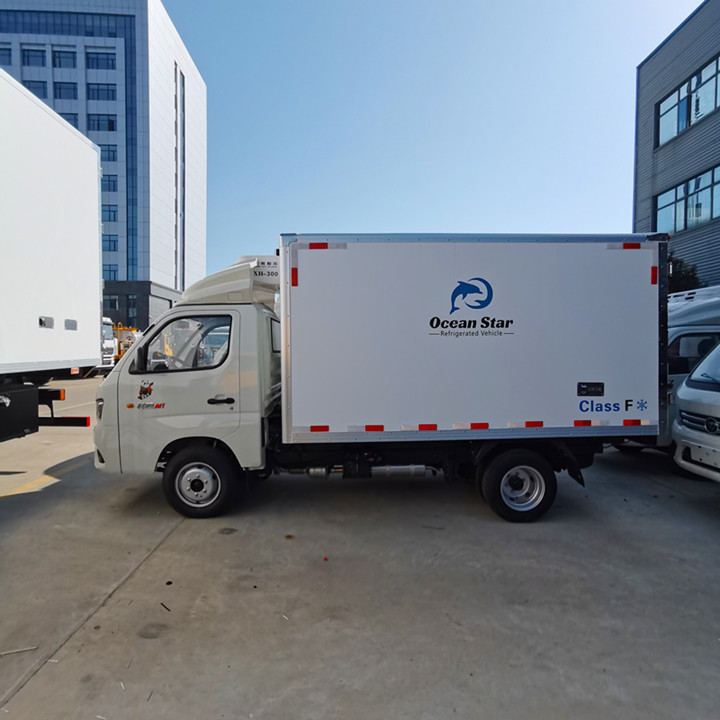

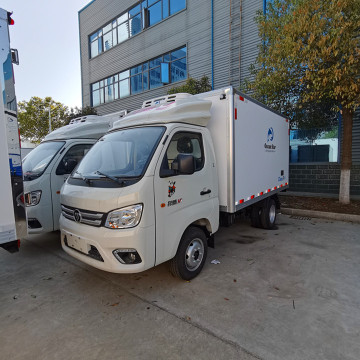

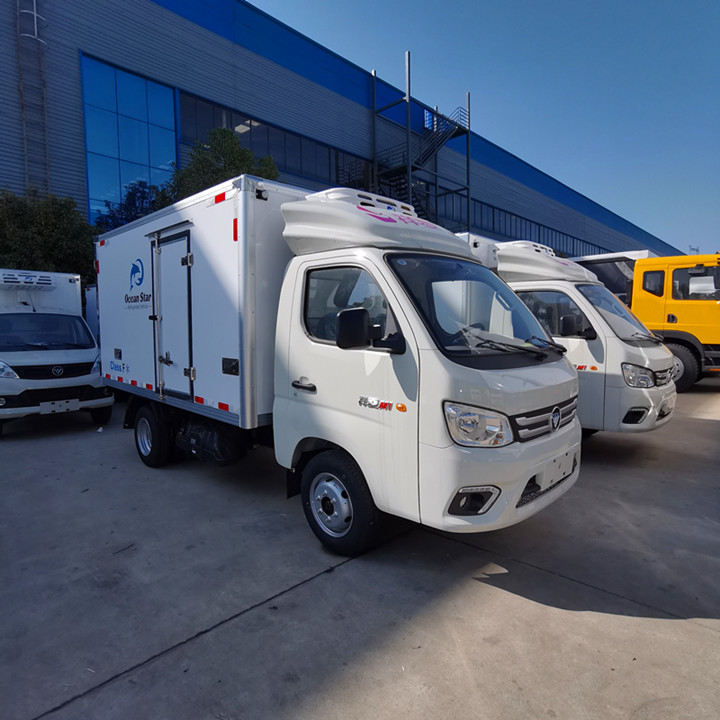

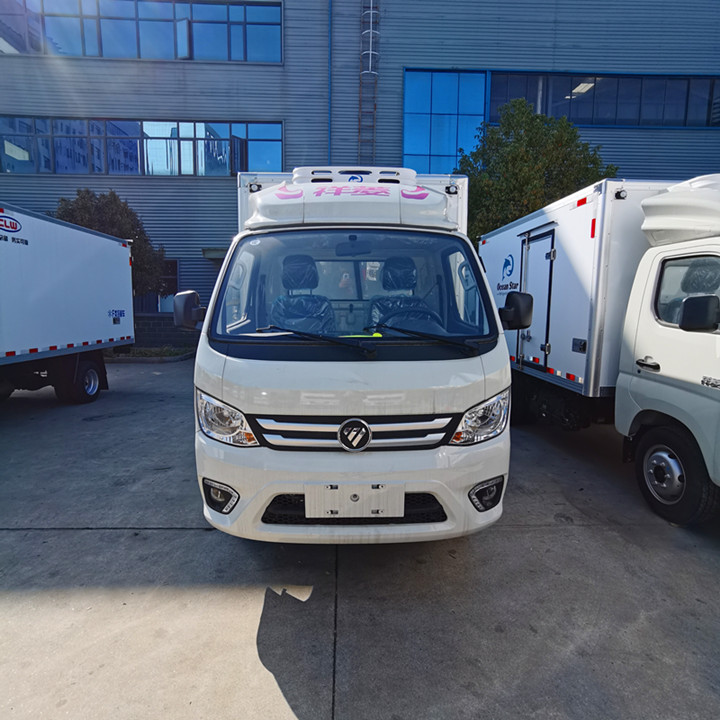

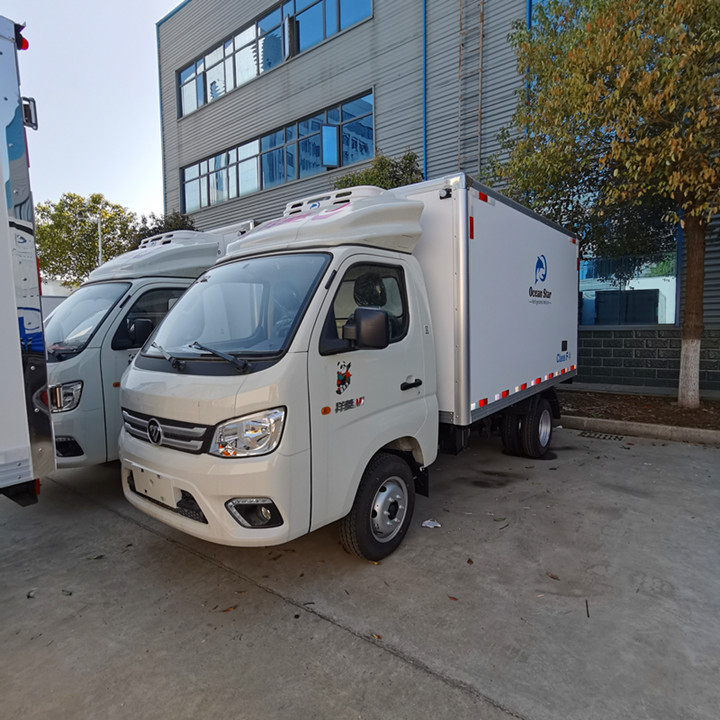

Foton small refrigerated truck

Name: Foton small refrigerated truck
Brand: Cheng Li Automobile Group
Price: 11500 USD
Rating: 4.8 (4 reviews)

Unit Price:

USD 11500 - 12500 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Gearbox Type: Manual

Old And New: New

Horsepower: < 150hp

Emission Standards: Euro 5

Fuel: Gasoline

Vehicle Size: 5070*1720*2455mm

Container Size: 3120*1560*1530mm

Gross Mass: 3495kg

Curb Weight: 1750kg

Seating: 2

WheelBase: 2750mm

Number Of Tires: 6

Tyre Size: 175R14LT

Horse-powe: 115HP

Brake System: Disc brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3ccc

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Foton small Refrigerated Truck is introduced

Carriage parameter configuration
Main features of carriage	The case of the refrigerated truck is made of a completely closed sandwich structure panel, which is vacuum formed by special technology Full panel. We use free freon-formed polyurethane foam as internal insulation. Interior and exterior coverings It is an integral fiberglass sheet (glass fiber reinforced polyester), therefore, of uniform construction (without any metal Reinforcements).
Outside dimension	3240mm×1680mm×1650mm	Inside dimension	3120mm×1560mm×1530mm
Roof/floor thickness	100mm	Sidewall panel	60mm
Front panel	60mm	Rear door panel	80mm
Panel structure	Fully enclosed sandwich	Panel insulation	Glass fiber Reinforced plastic + polyurethane foam + glass fiber reinforced plastic
Number of side doors	selectable	Side door position	selectable
Side door type	Single/double opening	Side door dimension	custom
/Backdoor type	Full size double door, right door first
Multiple temperature system types	selectable
Front space temperature	-20c	Rear space temperature	-25c
Ceiling light	2 sets /12/24V multi-voltage led lights
Refrigeration unit service ladder	Stainless steel	Refrigeration unit service platform	selectable

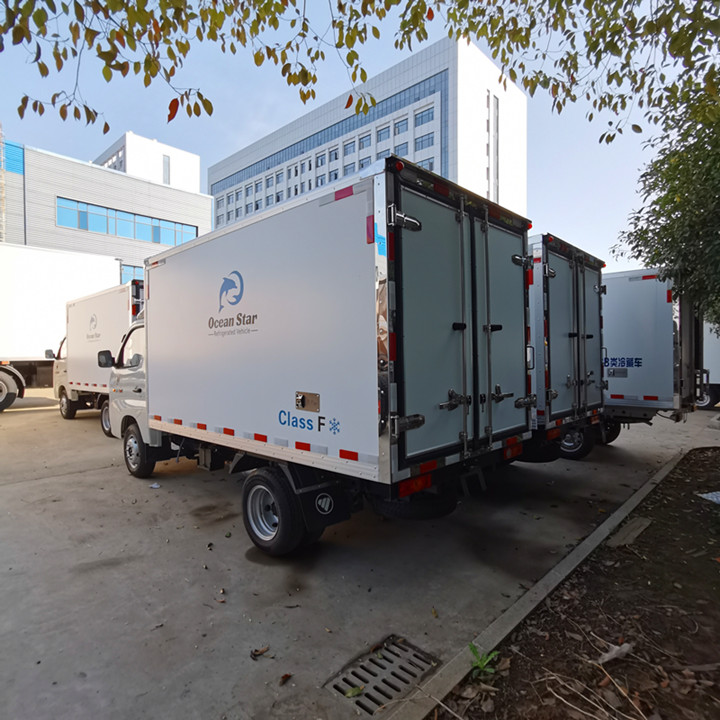

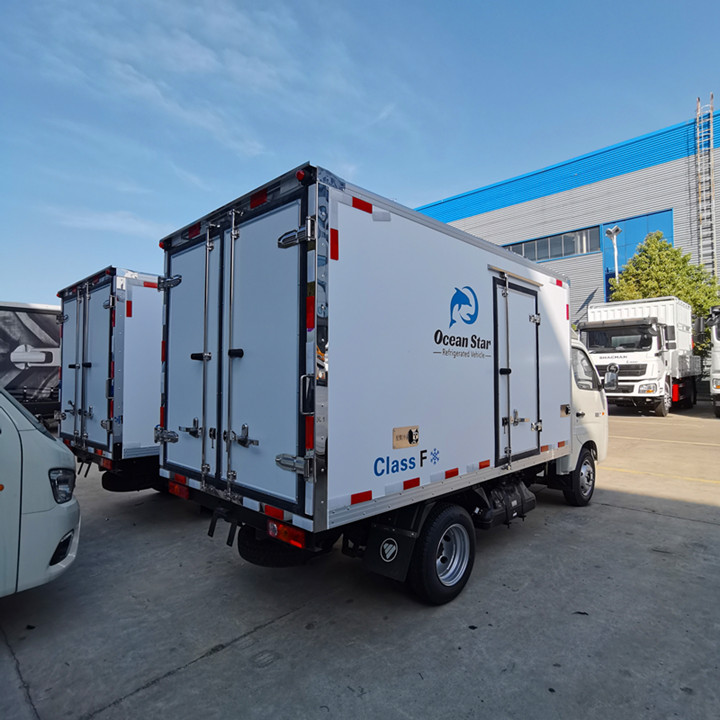

Rear door assy	Stainless steel rear door frame with stainless steel lock kit and stainless steel hinges

Foton small refrigerator truck details: 1. Basic parameters of small Refrigerated Trucks

The vehicle size is generally 5070mm×1740-1780mm×2455-2490mm, the body size is about

3120mm×1560-1580mm×1530-1560mm, the volume is about 7.4-7.7 cubic meters, the wheelbase is 2750mm,

the total mass is 3495kg. Rated load weight 1615kg, maintenance weight 1750kg.

2. freezer truck chassis configuration

Equipped with Dongan 115 horsepower or 122 horsepower gasoline engine, displacement of 1.5L or 1.6L,

matching 5-speed transmission, rear twin design, 175R14LT 8PR tires, equipped with air conditioning, directional power, ABS,

electric doors and Windows, central control lock, oil brake and other configurations.

3. Configure the Refrigerated Truck Body

The body is made of fiberglass inside and outside, filled with 8cm thick XPS insulation

board or high-density polyurethane foam insulation material, the bottom plate is plastic steel pattern plate or

high-strength aluminum alloy pattern plate, the body frame is supported by anti-rust treatment channel steel,

the door strips are rainproof design and mail-type rubber sealing strip, aluminum alloy profiles are wrapped,

stainless steel corners, door locks and thickened rear door hinges, etc. The interior is also equipped with LED lighting.

4. refrigerated box truck refrigeration unit

You can choose domestic refrigerated units such as Asiana, Kayxue, or imported refrigerated units such as Carrier and Cold King.

The temperature can be selected on demand, such as -5 ° C, -15 ° C, -18 ° C to -20 ° C,

and optional ventilation groove, temperature recorder, meat hook, partition and other configurations.

5. Small refrigerated truck performance advantages

• Good power performance: The power output of Dongan engine is stable, which can meet the transportation needs of urban roads and general roads.

• Moderate load capacity: rear twin design and reasonable chassis structure, so that its rated load mass can reach about 1.6 tons,

can meet the daily small cold chain transport.

• Good insulation performance: the insulation material and technology of the body are advanced,

and the insulation performance reaches the national A-level standard, which can effectively maintain the stability of the temperature in the car.

• Reliable refrigeration effect: a variety of well-known brand refrigeration units are optional,

which can accurately control the temperature according to the temperature requirements of the transport goods.

• High comfort: car design concept, cab equipped with air conditioning, electric doors and Windows, central control lock, etc., improve driving comfort.

• Flexible body: small size, flexible driving in narrow streets, residential areas and other places, easy to urban cold chain distribution.
