Home > Products > Refrigerated Truck > DONGFENG electric refrigerated truck





View the big picture

DONGFENG electric refrigerated truck

Name: DONGFENG electric refrigerated truck
Brand: Cheng Li Automobile Group
Price: 36300 USD
Rating: 4.8 (31 reviews)

Unit Price:

USD 36300 - 36800 / Piece/Pieces

Payment Type:

L/C,T/T

Incoterm:

FOB,CIF,EXW

Contact Now

Add to Basket
Share to:

Basic Info

Brand: clw

Place Of Origin: China

Vehicle Size: 5990*2240*3200mm

Container Size: 4000*2100*2100

Gross Mass: 4490kg

Curb Weight: 3890

Seating: 3

Wheelbase: 3890

Number Of Tires: 6

Tyre Size: 7.00R16LT

Brake System: Air brake

Additional Info

Productivity: 30unit/month

Transportation: Ocean,Land

Place of Origin: china

Supply Ability: 30unit/month

Certificate: 3c

Port: tianjin,shanghai,qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Product Description

Configure parameters for DONGFENG electric Refrigerated Truck

Box volume	18m³	Box size	4080x2100x2100mm
Box body material	Glass fiber reinforced plastic, steel pipe, plastic extrusion board, stainless steel	Vehicle size	5995x2250x3220mm
The thickness of the box body	80mm
Type of fuel	Diesel fuel	Tire specifications	7.00R16
Battery capacity	100.46kwh	Gearbox	Automatic transmission
The engine	156 horsepower	Present condition	Customisation

Dongfeng electric Refrigerated Trucks has a variety of models, the following is its main introduction:

1. Type and size of electric freezer truck

• Most of the 4.2-meter light truck models, such as the Dongfeng Capt EV350 PRO, the body length is 5.995 meters,

the width is 2.2-2.26 meters, the height is about 3.24 meters, the wheelbase is 3308mm, and the cargo box volume

can reach about 18 square meters, which can meet the needs of urban distribution and short-distance cold chain transportation.

2. Electric refrigerated box truck chassis configuration

• Power system: Equipped with permanent magnet synchronous motor, power 115-156 horsepower range,

strong power, can adapt to different road conditions.

• Battery: Equipped with Ningde times lithium iron phosphate battery, capacity 81.14-107kWh, high energy density,

good safety performance, strong endurance, such as Dongfeng Capt 4 meters 2 new energy F class refrigerator truck equipped

with 107 degrees battery, full load and full operation conditions of 280 kilometers.

• Others: 7.00R16 steel tires, standard air brake, multi-function steering wheel, LCD instrument,

driving control door lock, original air conditioning, etc., some models have cruise control, aviation seats, etc., good driving experience.

3. New energy refrigerated truck installation configuration

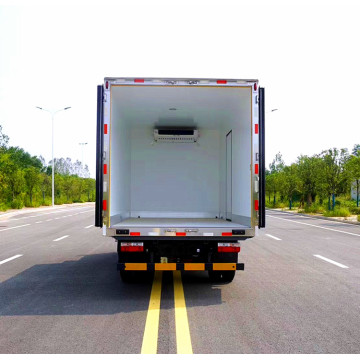

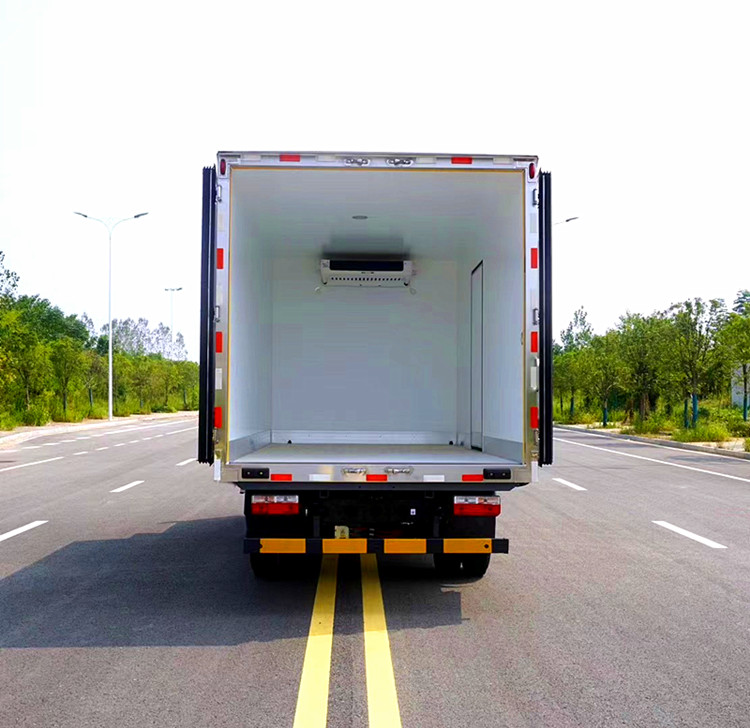

• refrigerated box: The body is made of glass steel inside and outside, and the middle is filled

with imported polyurethane extruded board. The vacuum negative pressure molding process is used,

and the heat preservation and sealing performance are good, which can effectively keep the temperature stable in the carriage.

• Car body details: aluminum alloy pattern plate at the bottom of the car body, door rain-proof design and labyrinth rubber seal,

stainless steel door lock and thickened rear door hinge lock, durable and well sealed, the car body is also equipped with LED lighting.

4. Electric refrigerated truck application scenario

• It is mainly suitable for urban cold chain distribution, such as short-distance transportation of fresh fruits,

vegetables, meat, seafood, dairy products and other foods, and can also be used for refrigerated transportation

of pharmaceuticals to ensure the quality of goods.
